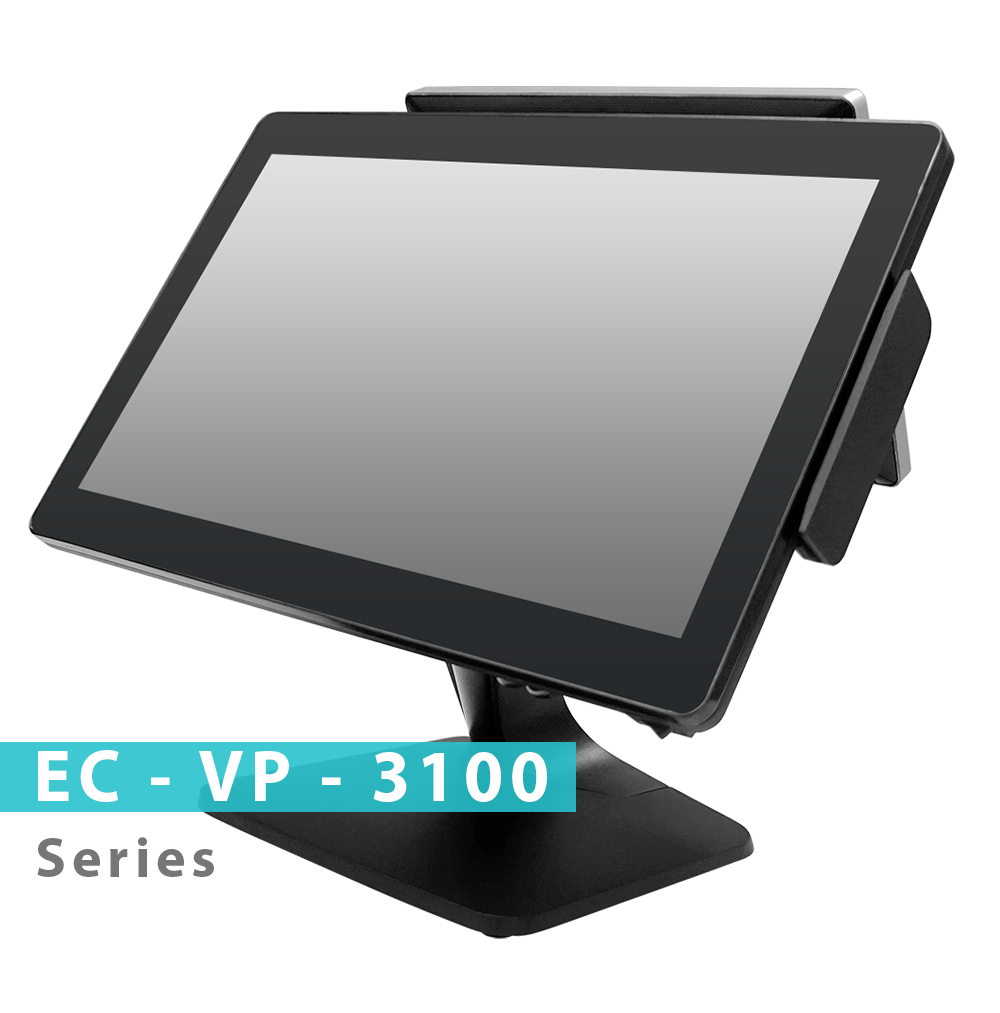

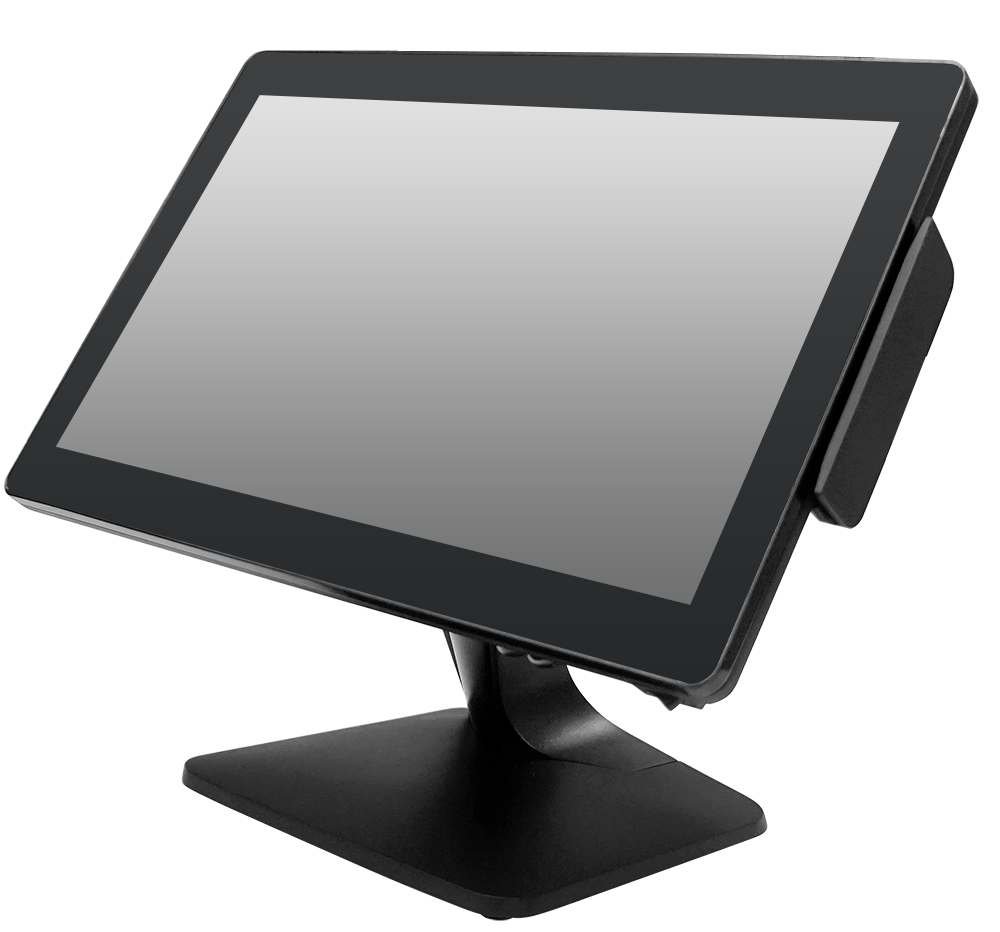

• 15.6" Bezel Free Wide Screen Touch Monitor
• Capacitive touch
• Brand-new High-quality LED panel
• All Aluminum structure
| LCD Display Size | TFT15.6”- LED |
| Touch Panel | 10-point Projected Capacitive touch (Optional single point PCAP) / Resistive Touch |
| Resolution | 1366 x 768 / 1920 x 1080 |
| Brightness (Backlight Type) | 220 cd/m2 (LED) |
| Contrast Ratio | 500：1 |
| Response Time | 12ms |
| Viewing Angle | (Up/ Down/ Left/ Right) 20°/40°/45°/45° |
| I/O Port | 2*USB |
| 1*VGA | |
| 1*TOUCH | |
| 1*12V DC Input | |
| 1*HDMI (Optional) | |
| Tilt Angle | 0 - 270˚ |
| WESA Mounting | 100 x 100mm / 75 x 75mm |
| Dimensions | With Base: 386.5(W) x 200 (D) x 312.5 (H) mm, N.W. 4.2 Kg |
| Without Base: 386.5(W) x 41 (D) x 251.5 (H) mm, N.W. 2.2 Kg | |
| Packing | 440 (W) x 310 (D) x 413 (H) mm, G.W. 5.9 Kg |
| Consumption | 35 MAX |
| Operating Temperature | -10˚C ~ 50˚C (14˚F ~ 122˚F) |
| Storage Temperature | -20˚C - 60˚C |
| Operating Humidity | 10% -- 85% |
| Optional Peripherals | 3 Tracks Magnetic Reader |
| 2 lines VFD |
