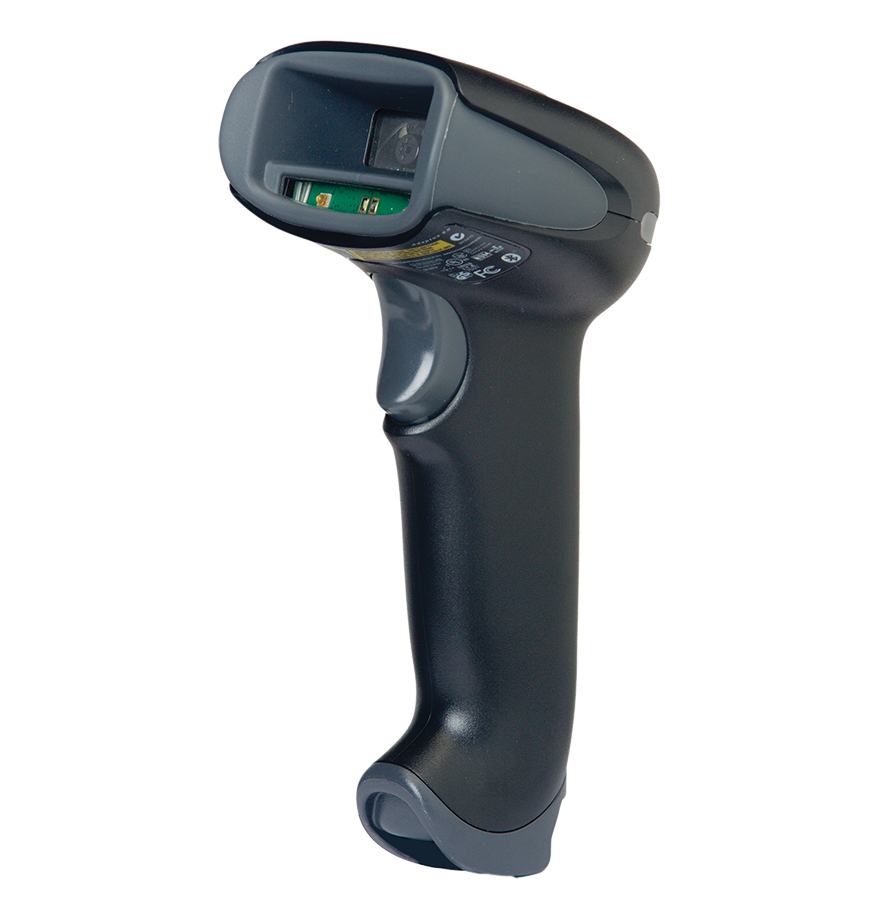

• Designed to withstand 50 1.8 m (6 ") drops to concrete
• Excellent speed in scanning 2D barcodes including PDF417,
MicroPDF417, Postal, Matrix and QR code
• Good & fast reading even on poorly printed or damaged
barcodes
Optional:
• Able to read OCR font including OCR-A, OCR-B ,MICR E-13B
• High Density (HD),Extended Range (ER)
| Dimensions (L x W x H) | 104 mm x 71 mm x 160 mm |
| 4.1 in x 2.8 in x 6.3 in | |
| Weight | 147 g (5.2 oz) |
| Input Voltage | 4.0V DC to 5.5V DC |
| Operating Power | 2.3 W (450 mA @ 5V DC) |
| Standby Power | 0.45 W (90 mA @ 5V DC) |
| Host System Interfaces | USB, Keyboard Wedge, RS-232, IBM 46xx (RS485) |
| Operating Temperature | 0°C to 50°C(32°F to 122°F) |
| Storage Temperature | -40°C to 70°C(-40°F to 158°F) |
| Humidity | 0% to 95% relative humidity,non-condensing |
| Drop | Designed to withstand 50 1.8 m (6 ft) drops to concrete |
| Ratchet Stand | Designed to withstand 50 1.2 m (4 ft) drops to concrete on each of the faces |
| Environmental Sealing | IP41 |
| Light Levels | 0 to 100,000 lux |
| Scan Pattern | Area Image (838 x 640 pixel array) |
| Motion Tolerance | Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus |
| Scan Angle | HD Focus: Horizontal 41.4°; Vertical: 32.2° |
| SR Focus: Horizontal: 42.4°; Vertical: 33° | |
| ER Focus: Horizontal: 31.6°; Vertical: 24.4° | |
| Symbol Contrast | 20% minimum reflectance difference |
| Pitch, Skew | 45°, 65° |
| Decode Capability | Reads standard 1D, PDF, 2D, Postal and OCR symbologies |
| * Note: Decode capabilities dependent on kit configuration |
