(Phased-Out)

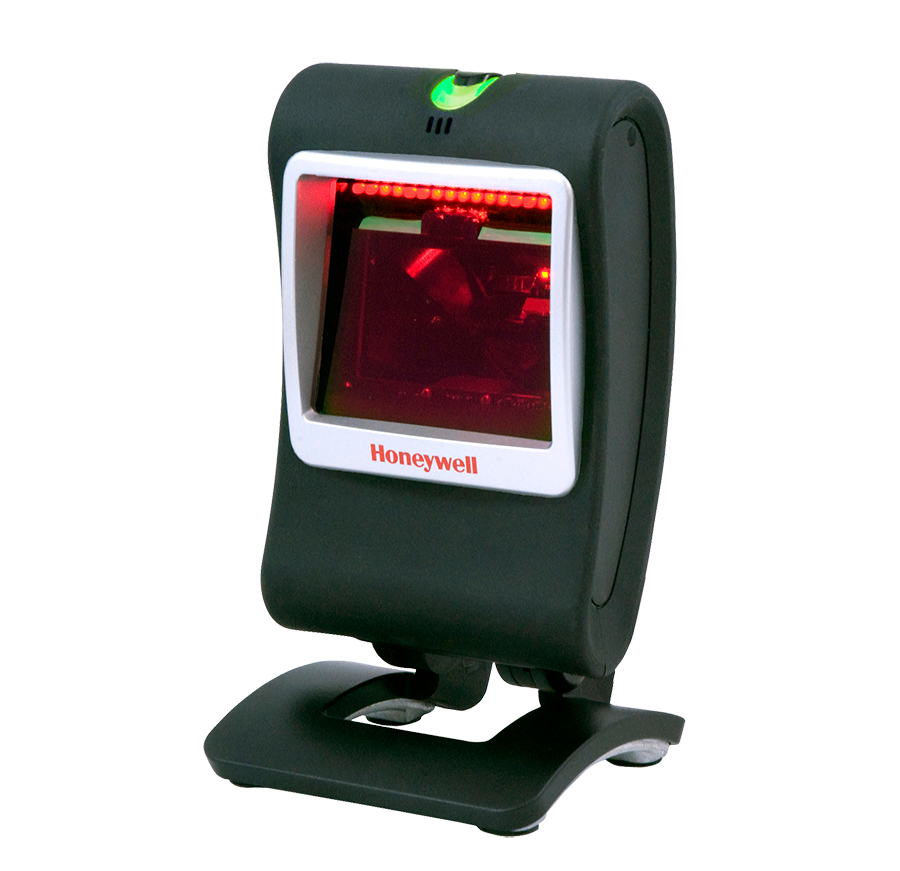

Honeywell Genesis 7580g is EOL and the replacement unit is Honeywell Genesis™ XP 7680g
- https://www.ecline.com.hk/product-details.php?productId=213
• Fully automatic scanning operation
• 83mm(3.3") scan width
• Time saving increases efficiency
• Scans up to 7 bar codes in one scan and outputs data in any
pre-determined order
| Dimensions (L x W x H) | 80 mm x 83 mm x 150 mm |
| 3.2 in x 3.3 in x 5.9 in | |
| Weight | 340 g (12 oz) |
| Input Voltage | 5.5V DC ±0.25V |
| Operating Power | 2.0 W (400 mA @ 5V) |
| Standby Power | 0.5 W (100 mA @ 5V) |
| Host System Interfaces | USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485) |
| Auxiliary Ports | EAS with interlock (EAS model) |
| Operating Temperature | 0°C to 40°C(32°F to 104°F) |
| Storage Temperature | -40°C to 60°C(-40°F to 140°F) |
| Humidity | 0% to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 1.5 m (5 ft) drops |
| Environmental Sealing | Sealed to resist airborne particulate contaminants |
| Light Levels | 100,000 Lux |
| Scan Pattern | Area Image (832 x 504 pixel array) |
| Motion Tolerance | 200 cm/s (78 in/s) for 13 mil UPC at optimal focus |
| Scan Angle | Horizontal: 46°; Vertical: 28° |
| Print Contrast | 20% minimum reflectance difference |
| Pitch, Skew | 70°, 75° |
| Decode Capability | Reads standard 1D, PDF, 2D, Postal, and OCR symbologies. Note: Decode capabilities dependent on kit configuration. |
