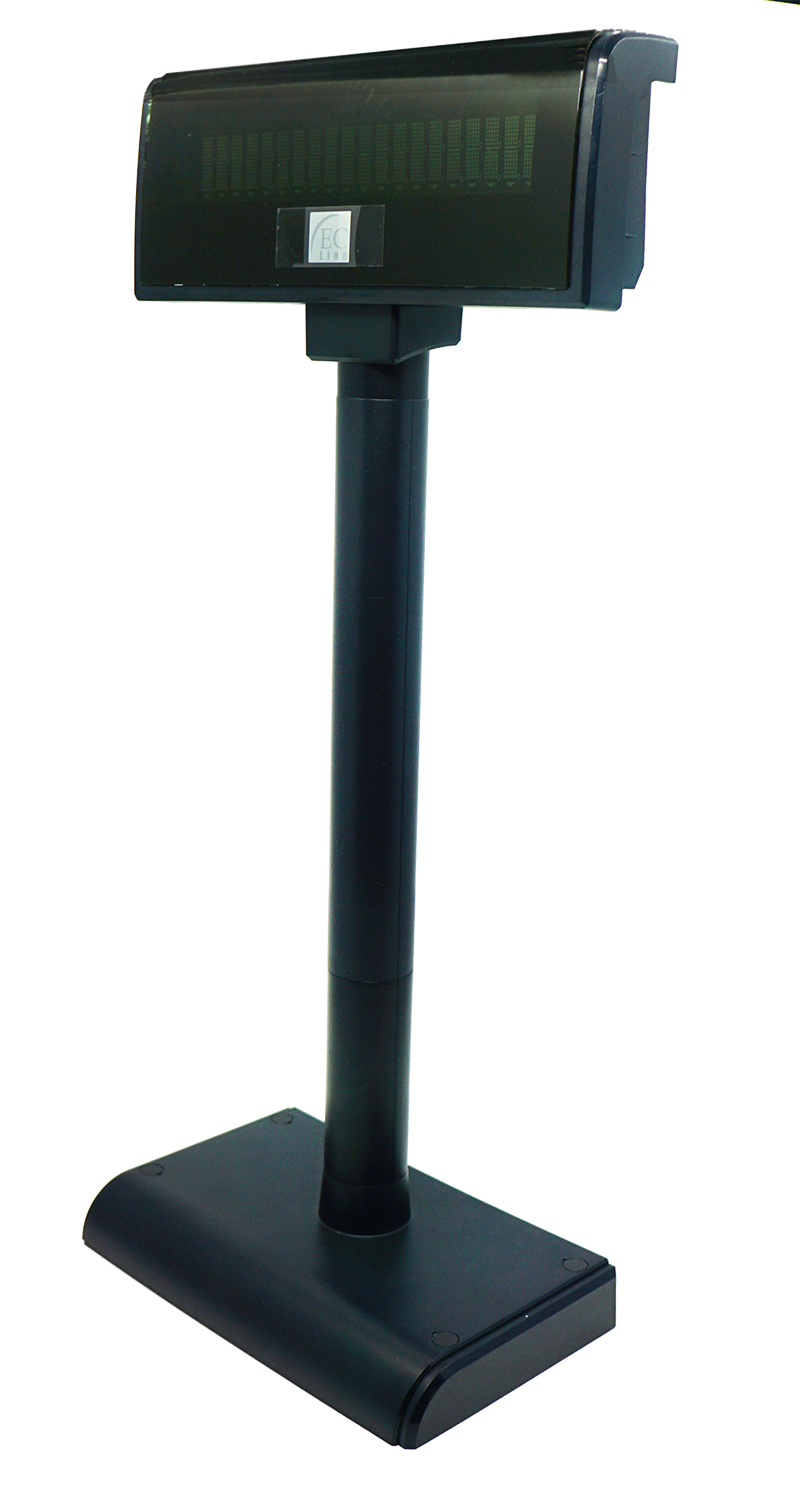

•Vacuum Fluorescent Display
•2 x 20 characters
•Supports 14 languages
•Compatible with 6 command sets
•Innovative hinge design enables easy angle adjustment
•Display adjustable range : 0-270° horizontally, 0-36° vertically
•BT module optional
| Display Type | Vacuum fluorescent Display | |
| Display Area | N/A | |
| Font Size | 5 × 7 Dots | |
| Back-light | Vacuum Fluorescent Blue-green | |
| White luminance (Center) | 700 cd/m² | |
| Interface | USB/ RS233 | |
| Command Set | 1. EPSON ESC/POS 2. ADM787/788 3. EMAX (AEDEX) 4. UTC/S, UTC/P 5. CD5220 6. DSP-800 (option) |
|
| Character Type | I. 96 alphanumeric characters II. 14 sets of international characters: USA, France, Germany, UK, Sweden, Denmark I and II, Italy, Spain, Norway, Japan (Katakana), Slavonic, Russian & Portuguese III. One set of user downloadable characters |
|
| Touch Option | N/A | |
| Chassis Color | Black | |
| Power Supply | DC 7V~36V | |
| Power Consumption | 3~5W | |
| Operation Temperature | 5-45°C | |
| Storage Temperature | -20-70°C | |
| Operation Humidity | 80% Max | |
| Storage Humidity | 90% Max | |
| MTBF | 25,000 hrs | |
| Certification | CE/FCC | |
| Head (W x D x H) | 215 W × 57 W × 92 H (mm) | |
| Support (H x Ø) | Long: 250 H x 34 Ø (mm); Short: 117 H x 34 Ø (mm) |
|
| Base (W x D x H) | 200 W × 120 D × 27 H (mm) | |
| Weight | 0.8KGs | |
| Rotation Angle | Vertical 0-36 | |
| Horizontal 0-270 |
