錢箱
EC-CD-50M
返回

•Extreme light , compact and portable
•Easy loading mechanism, easy maintenance
•Equipped with rechargeable 7.4V, 1500mAh Li-ion battery
•Rugged design passed 1.2m drop test
•Multi wireless communication interface options
•Support client-side firmware upgrade

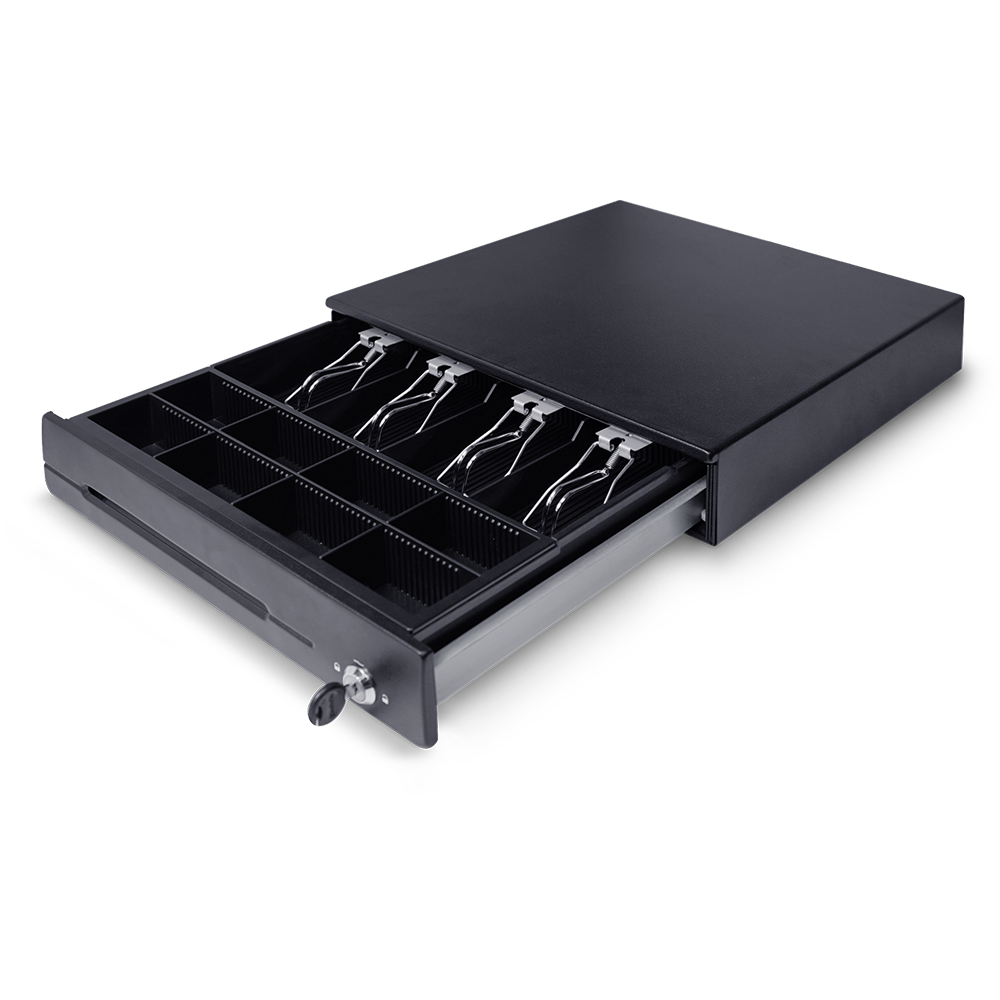

Model Number EC-CD-50M
Drawer Type Smart Small Cash Drawer with Heavy-duty Metal Rollers
Dimensions (inch) 13.8"W X 15.4"D X 3.2"H (inch, without Feet)
Dimensions (mm) 350W X 390D X 80H (mm, without Feet)
Packaging (mm) 410W x 460D x 160H (mm)
Net Weight 4.9 kg (10.8 lbs.)
Gro. Weight 5.7 kg (12.6 lbs.)
Color  Black / White / Customization
Panel Steel ; Plastic
Casing Thick gauge cold rolled steel & SECC
Casing Thickness  0.8 mm
Finish Scratch Resistant Textured Hybrid Powder Coat
Roller  Heavy-duty Steel Rollers
Open Push Durable Mechanism Arm with Strong Push
Slide Steel Slide
Material  Shatter-resistant Plastic
Currency Layout  4 Bills, 8 Coins; Adjustable Dividers; Removable Coin Tray
Media Slot 1
Cash Till Global Till: US ; Canadian ; Euro I ; Euro II ; UK ; Asian
Key Lock  900 Key Combinations; Three -position Lock: Locked Open/ Closed, Electronically Driven
I/O Interface 12V ; 24V for RJ11 Receipt Printer Interface
9-Pin RS234 interface (Option) ; USB Interface (Option)
Emergent Release Emergent release lever on the chassis of drawer
Micro Switch Cash Drawer Status Micro Switch
Durability  1 Millions
