錢箱

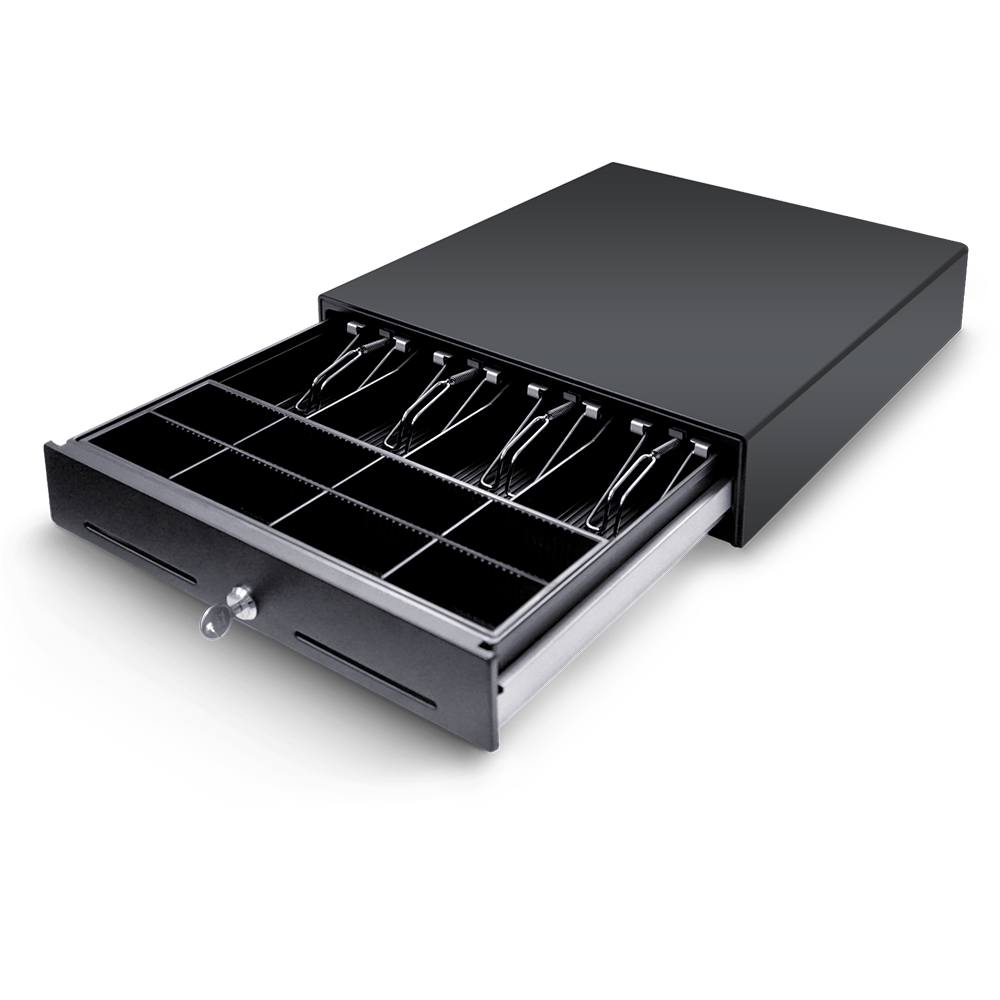

EC-CD-5100
返回

•Rugged structure with reinforced heavy steel
•Optional bill coin compartment
•Durability for 1 million operation
•Precision mechanism to assure wobble-free drawer moment
•Three -positions lock for maximum cash security
•Counter space saving

Model Number EC-CD-5100
Drawer Type Smart Small Cash Drawer with Two Media Slots
Dimensions (inch)
13.8"W X 15.9"D X 3.2"H (inch, without Feet)
Dimensions (mm) 350W X 405D X 90H (mm, without Feet)
Packaging (mm) 465W x 410D x 151H (mm)
Net Weight 5.2 kg (11.4 lbs.)
Gro. Weight 5.9 kg (13.0 Ibs.)
Color Black / Ivory
Panel Steel
Casing Thick gauge cold rolled steel & SECC
Casing Thickness  0.8 mm
Finish Scratch Resistant Textured Hybrid Powder Coat
Roller  Wear-resistant Plastic Rollers
Open Push Rigid Large Spring with Smooth Push
Slide Steel Slide
Material  Shatter-resistant Plastic
Currency Layout  4 Bills, 8 Coins; Adjustable Dividers; Removable Coin Tray
Media Slot 2
Cash Till Global Till: US ; Canadian ; Euro I ; Euro II ; UK ; Asian
Key Lock 10 Key Combinations; Three -position Lock: Locked Open/ Closed, Electronically Driven
I/O Interface 12V ; 24V for RJ11 ; RJ12 Receipt Printer Interface
9-Pin RS232 interface (option) ; USB Interface (option)
Emergent Release Emergent release lever on the chassis of drawer
Micro Switch Cash Drawer Status Micro Switch
Durability  1 Millions
