安卓系統銷售點終端機

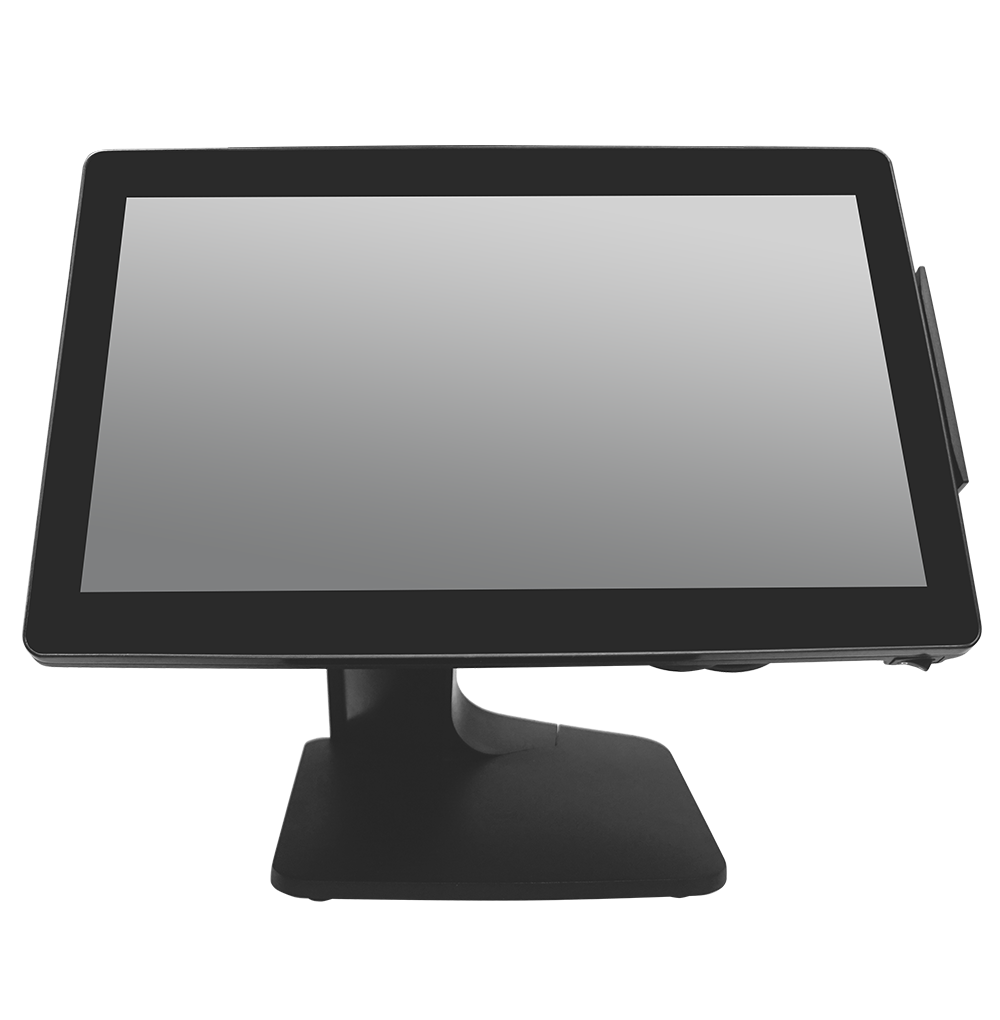

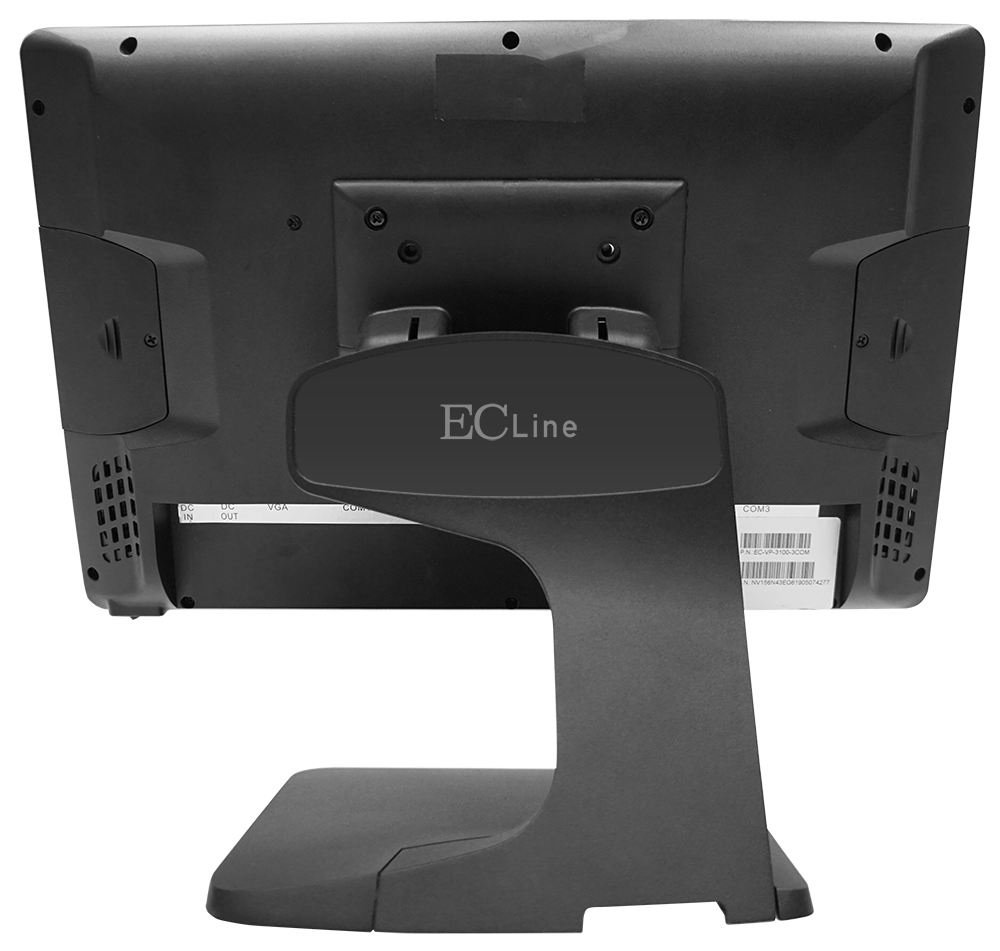

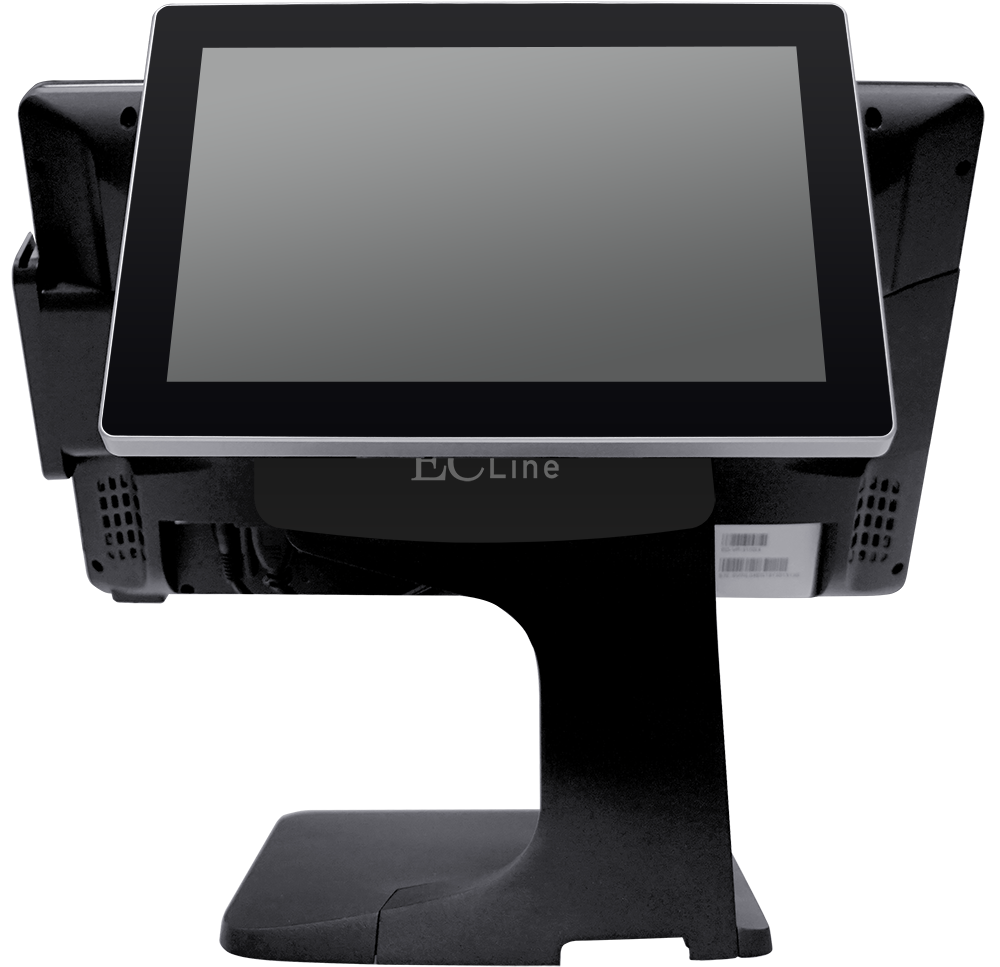

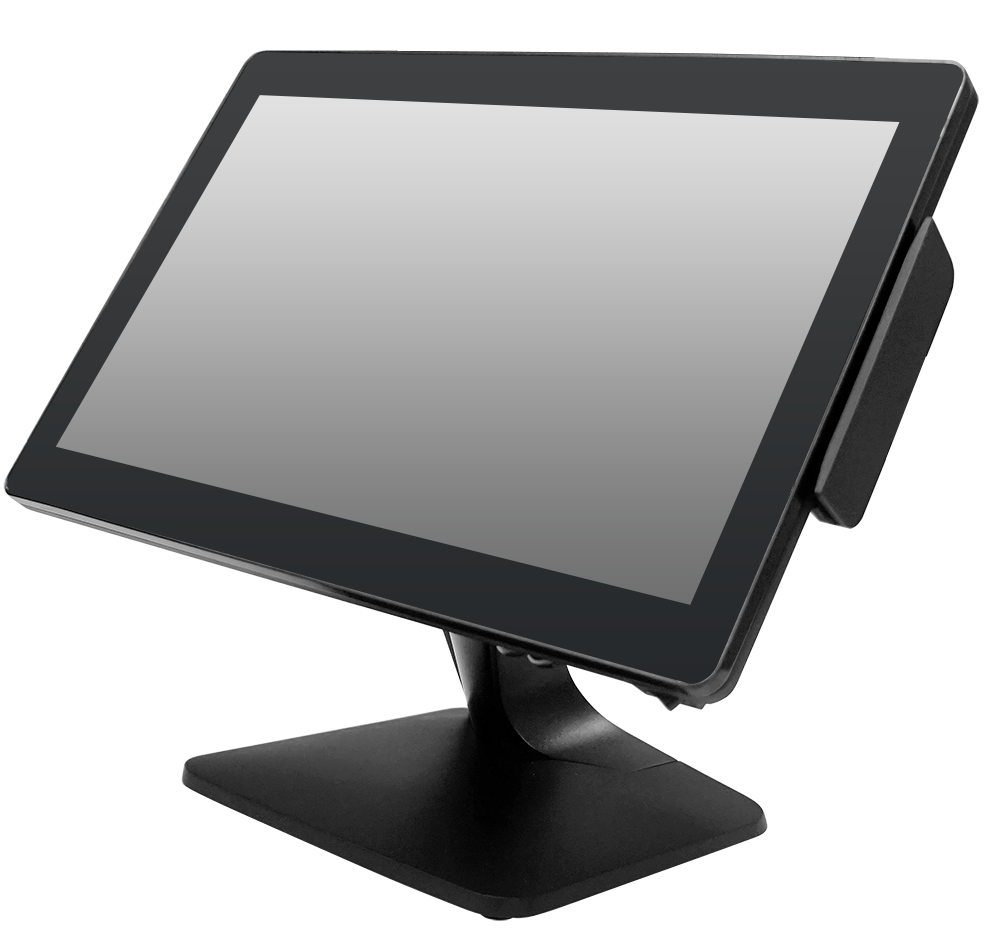

EC-VP-3100A
返回

• Android Operating System

• 15.6” Bezel free Slim LCD Monitor

• Flexible architectures for peripheral (MSR / VFD / ibutton /

   Finger Senor)

• Space for printer

• Wide range of OS supported

• Hidden cable management

CPU RK3288/cortex A17 1.8G
Memory 2GB / 4GB
Storage 8/16/32GB SSD
OS Support Android 5.1/6.1/7.1 with Google Play
Display Size 15.6 Inches
Touch 10-point Projected Capacitive Touch
Resolution 1366 x 768 / 1920 x 1080
Brightness 220 cd/m2
Backlight Type LED
Contrast Ratio 600:1
Response Time  12ms
Viewing Angle (Up/ Down/ Left/ Right) IPS
Video Interface EDP
I/O Port DC12V IN
DC12V OUT
1×HDMI
6×USB2.0
1×AUDIO
1×SD Slot
1×LAN
1×COM(DB9)
1×CASH DRAWER(RJ11)



Housing Material Magaluma
Tilt Angle 0-270°
VESA Mounting  75 x 75 (mm) & 100 x 100 (mm)
Dimensions (W x D x H) 387 W × 200 D × 315 H (mm)
Packing Dimension 440 (W) x 310 (D) x 413 (H) mm
Net Weight 4.9KG
Gross weight 6.8KG
Consumption 35W(MAX)
Operating Temperature  -10˚C to 50˚C
Storage Temperature  -20℃ to 60℃
Humidity 10% to 85%
Shock / Drop 75cm with packaging
Power Input AC 100-240V
Power Output DC 12V/5A
Safety FCC / CE / RoHS
ISO Trick 1/2/3 Magnetic Stripe Reader  support
VFD support
Second Display  10.1" / 15"
iButton Support
iButton+MSR Support
Finger Senor Support
