工業級電腦主機

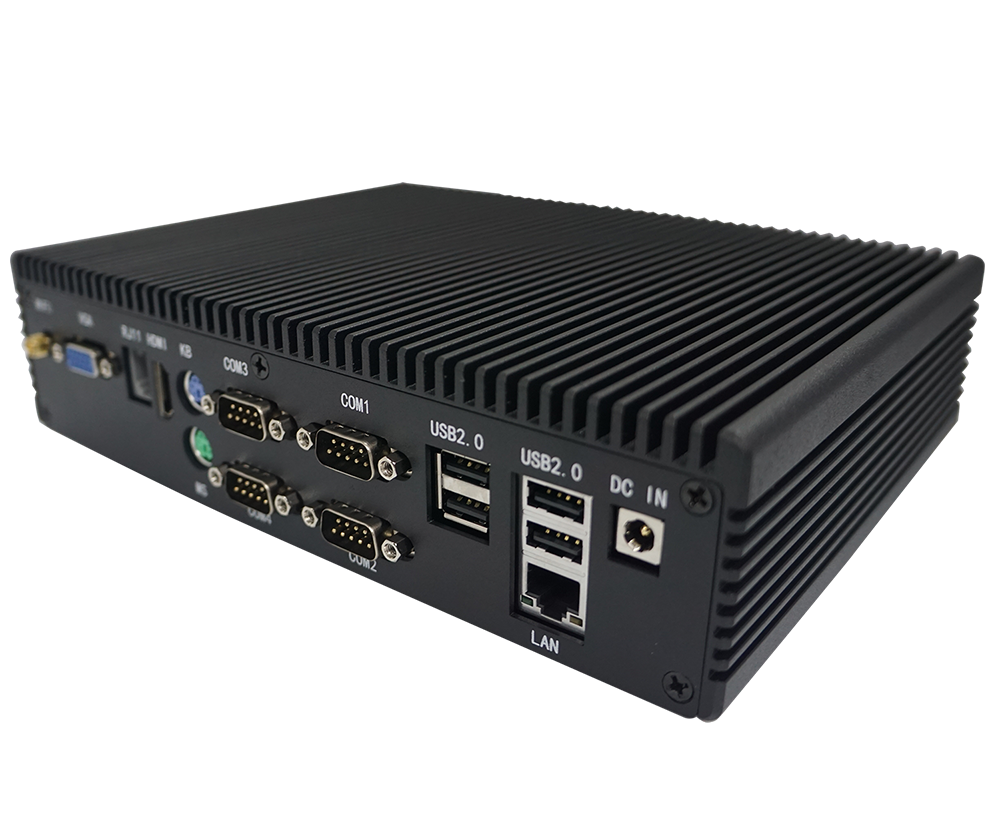

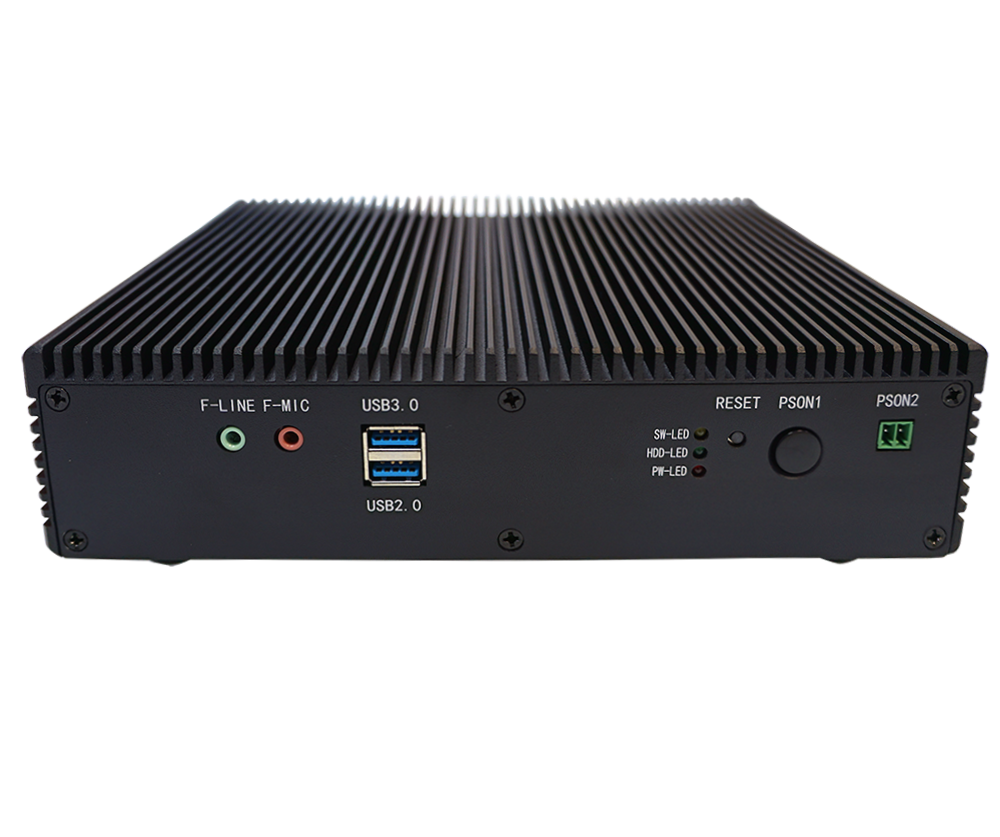

BP-120
返回

• Fast CPU of Intel® Baytrail-D J1900

• Rich I/O Port Combinations

• Industrial Grade Aluminum Case

• 64GB Hard Disk

CPU Intel® Celeron® Processor J1900
Memory DDR3L 1333 4G (up to 8GB)
Storage 320GB HDD or up /
64G SSD (up to 256GB)
OS Support Windows 7, Windows 8.1, Windows Embedded 8.1 Industry,
Windows 10, Windows 10 IOT, POS Ready 7, Linux (ubuntu)
I/O Port DC IN(DC 2.5)
POWER Switch
RESTART Switch
1×HDMI
1×VGA
4×USB2.0
2×USB3.0
1×LAN
1×MIC
1×LINE
4*COM(DB9)
PW LED
SW LED
HDD LED
1*Antenna
1*PS/2 MS
1*PS/2 KB
1*PS_ON
Casing P/G/F
Fan / Fanless Fanless
VESA Mounting  100*100MM
Dimensions (W x D x H) 235*177*57MM
Packing Dimension (W x D x H) 235*295*75MM
Net Weight 2.1KG
Gross weight 2.6KG
Consumption 18W
Operating Temperature  -10°C - 50°C
Storage Temperature  -20°C - 70°C
Humidity 10%RH - 90%RH
Shock / Drop Class A Package 1~20.99 lbs(0.45~9.54㎏) 30 in /(76.20㎝)
Power Input AC 100-240V/50-60HZ  1.5A
Power Output DC 12V/5A
Safety CE
IP Rating IP54
用戶手冊
BP-120 User Manual
下載
規格單張
EC-BP-120 Leaflet
下載
