• Fast CPU of 4th Generation Intel® Core™ i3 Processors
• Rich I/O Port Combinations with 10 USB Ports

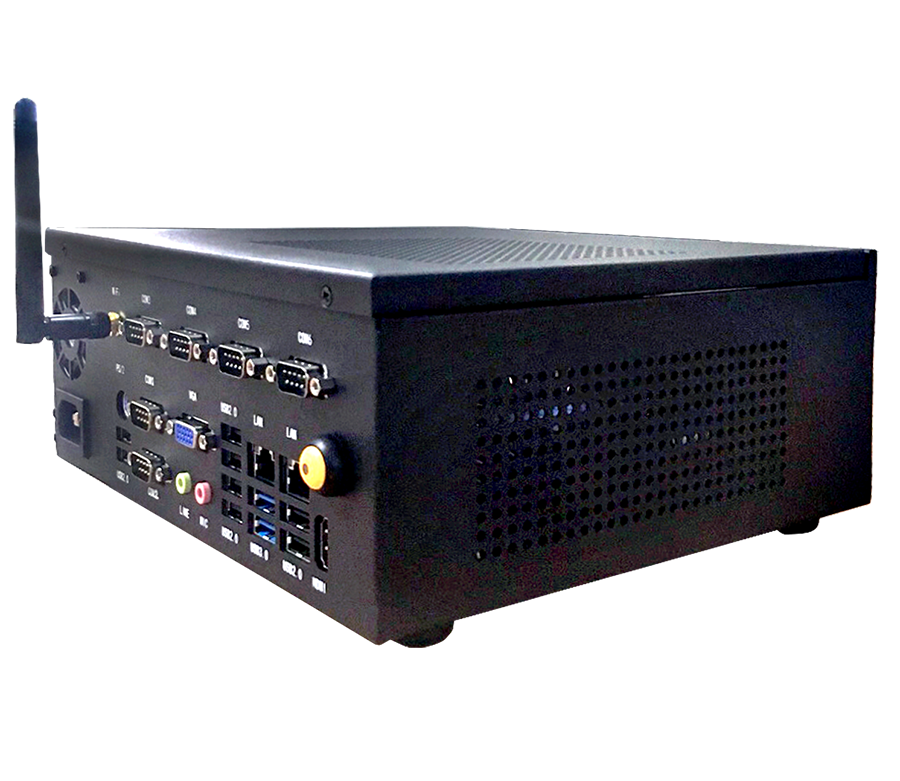

• Industrial Grade Aluminum Case
• 64GB SSD
| CPU | 4th Generation Intel® Core™ i3 Processors |
| Memory | DDR3L 1333 4G (up to 8GB) |
| Storage | 320GB HDD or up / 64G SSD (up to 256GB) |
| OS Support | Windows 7, Windows 8.1, Windows Embedded 8.1 Industry, Windows 10, Windows 10 IOT, POS Ready 7, Linux (ubuntu) |

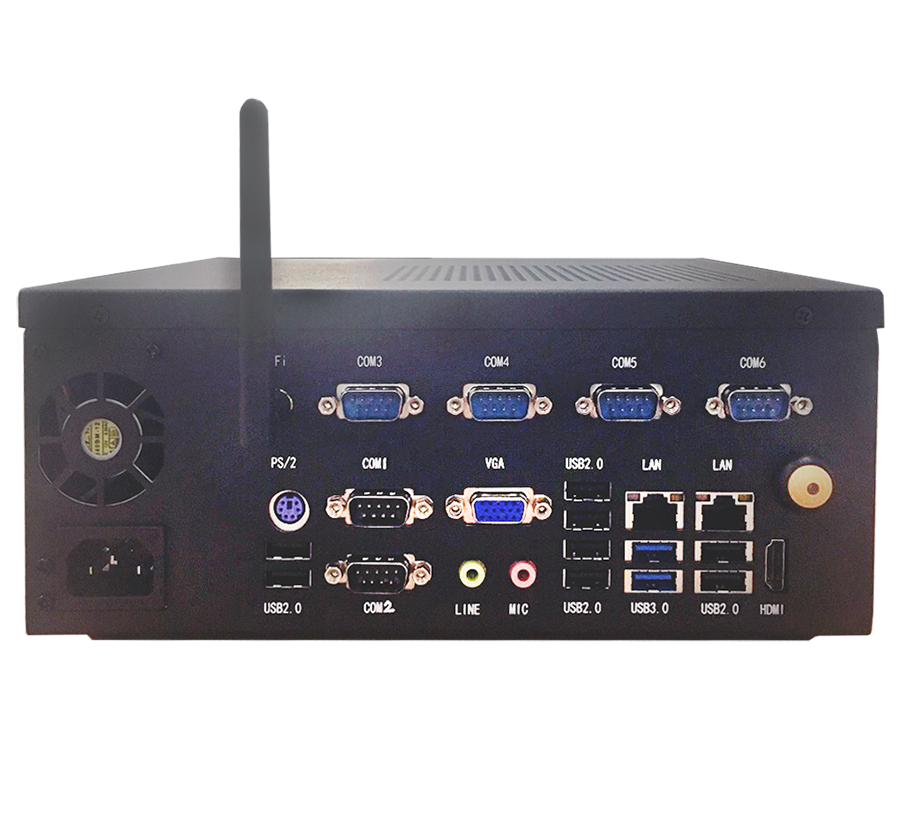

| I/O Port | AC IN |
| POWER Switch | |
| 1×HDMI | |
| 1×VGA | |
| 8×USB2.0 | |
| 2×USB3.0 | |
| 2×LAN | |
| 1×MIC | |
| 1×LINE | |
| 6*COM(DB9) | |
| 1*Antenna | |
| 1*PS_ON | |
| 1*PS/2 KB | |
| Casing | ￣ |
| Fan / Fanless | Fan |
| VESA Mounting | ￣ |
| Dimensions (W x D x H) | 245*220*100MM |
| Packing Dimension (W x D x H) | 320*320*150MM |
| Net Weight | 3.2KG |
| Gross weight | 3.8KG |
| Consumption | 200W |
| Operating Temperature | 0°C - 40°C |
| Storage Temperature | -20°C - 70°C |
| Humidity | 20%RH - 90%RH |
| Shock / Drop | Class A Package 1~20.99 lbs（0.45~9.54㎏） 30 in /（76.20㎝） |
| Power Input | AC 100-127V/47-63HZ 4.0A |
| AC 200-240V/47-63HZ 2.0A | |
| Power Output | 220W |
| Safety | CE |
| IP Rating | IP30 |
