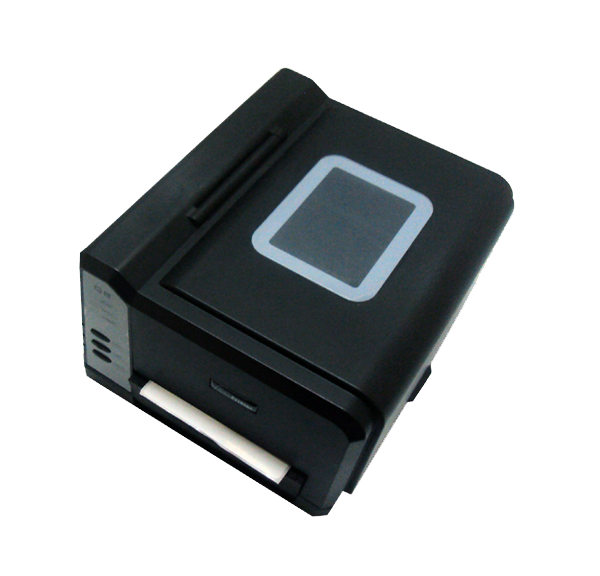

EC-Q8 (Phased-Out)
返回

(Phased-Out)

Barcode Printer Method Barcode Label Printer DT & TT
Printing Method  Direct Thermal / Thermal Transfer
Max Printing Speed  101.6mm/s
Max Printing Width  108mm (4.25")
Max Printing Length  4000mm (157")
Paper Thickness  0.15mm
Dot Density 203dpi (8 dots/mm)
Memory  2MB Flash Rom, 8MB SDRAM
Sensor  Reflective (Multiple Mounting Positions)
I/O interface Serial / USB
Fonts  Five Built-In ASCII Font,                                                                                Optional Multiple Language Fonts
1D Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.
2D MaxiCode, PDF417, Data matrix, etc.
Operation Temperature  0°C -- 40 °C
Humidity 5%~85%RH
Power Supply  24V
Power Adapter Input: AC100V ~ 240V, 47~63HZ
Output: DC 24V/2.5A
Mechanism 50km
Dimensions (inch) 8.27" (W) x 10.04" (D) x 5.9" (H) (inch)
Dimensions (mm) 210 W x 255 D x 150 H (mm)
Color Black
Weight 2.10 kg (4.62 lbs)
驅動程式
Drivers
用戶手冊
EC-Q8 User Manual
下載
規格單張
EC-Q8 Leaflet
下載
