• Powered with ELO resistive touch screen
• 15 inches TFT panel
• Support VGA video input
• Multilingual OSD menu

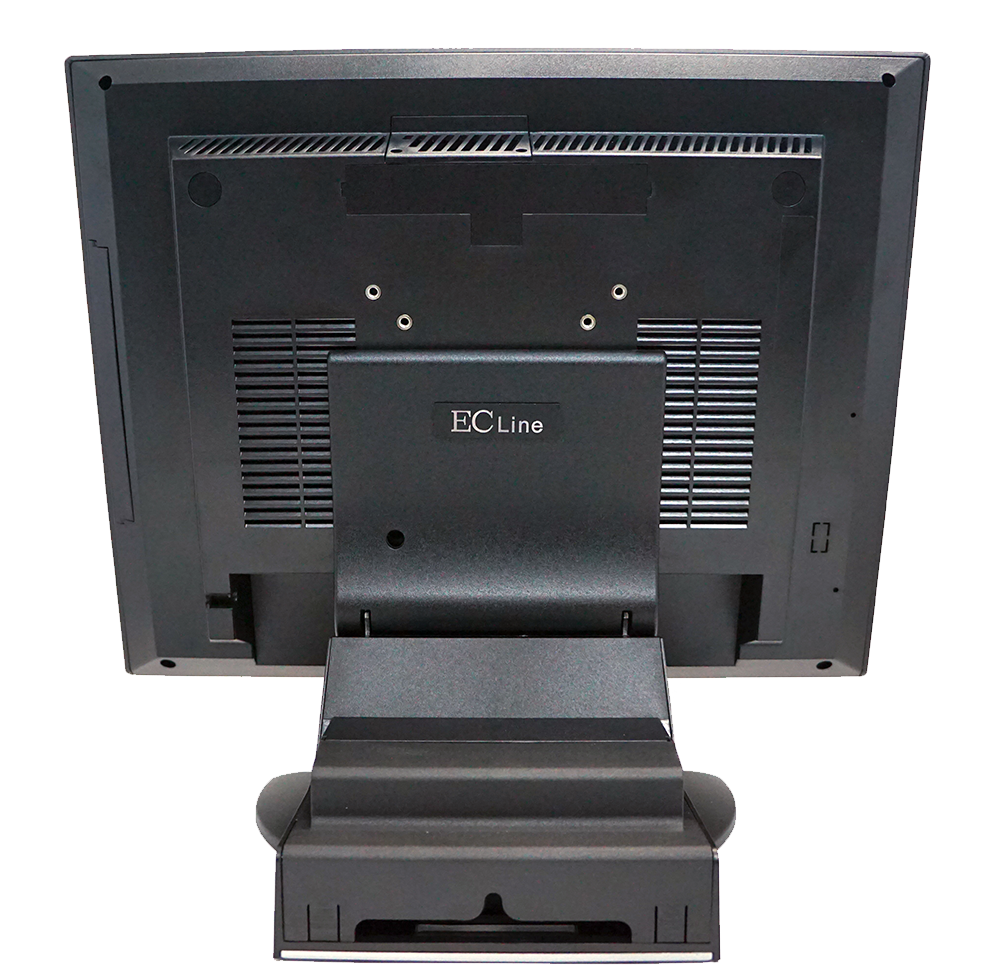

• With VESA mounting holes at the back
• Optional USB hubs, PS/2 ports
| Display Size | 15 inches |
| Resolution | 1024 × 768 |
| Brightness | 225 cd/㎡ |
| Backlight Type | LED |
| Contrast Ratio | 400:1 |
| Response Time | 13ms |
| Viewing Angle (Up/ Down/ Left/ Right) | 70°/ 70°/ 70°/ 70° |
| Video Interface | VGA |
| Touch | ELO Resistive |
| I/O Port | DC 12V IN |
| 1×VGA | |
| 1×USB | |
| Housing Material | ABS |
| Tilt Angle | -4°~59° |
| VESA Mounting | FDMI MIS-D |
| Dimensions (W x D x H) | 34cm X 37cm X 24cm |
| Packing Dimension | 42cm X 48.5cm X 29cm |
| Net Weight | 6.0KG |
| Gross weight | 7.4KG |
| Consumption | 17W (MAX) |
| Operating Temperature | 0 ℃ to 40℃ |
| Storage Temperature | -20℃ ~ 55℃ |
| Humidity | 10 - 85% RH |
| Shock / Drop | 100cm with packaging |
| Power Input | 12V 2A power adaptor |
| Power Output | |
| Safety | FCC, CE, ROHS |
| IP Rating | IP 54 |
