熱感收據打印機

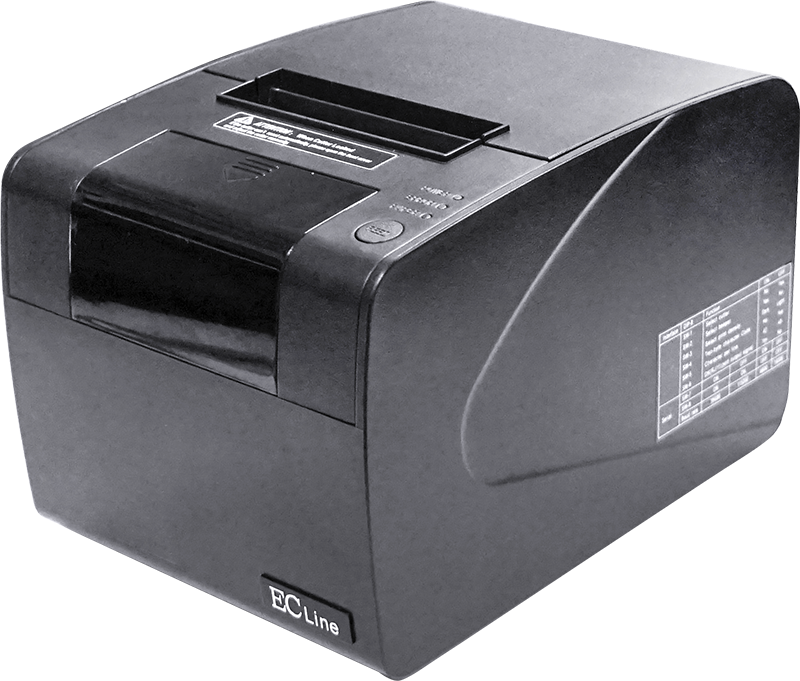

EC-PM-80250 (Phased-Out)
返回

(Phased-Out)

• Fast 250 mm/s printing speed

• ESC/POS & LINE/T command sets compatible

• 203 dpi high quality receipt printout

• Kitchen printing and network printing supported

• Multi-interface (Serial+USB+Ethernet)

• Windows driver, Linux driver, OPOS driver available

Print Method Direct thermal line
Print Resolution  203dpi
Max Printing Speed  250mm/s
Max Printing Width  72mm
Kitchen Print NO
OS Support Windows/ Linux
Width 80±0.5mm
Thickness 0.054~0.06 mm
Character Set ANK Font Font A: 12×24dots
Font B: 9×17dots
Simplified/Traditional Chinese
Character: 24×24dots
Character/Line 3.75mm(can be adjusted by sending commands)
Font A - 42columns or 48columns
Font B:56columns or 64columns/ Simplified/Traditional Chinese - 21columns or 24columns
Barcodes Supported  UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE128
Mechanism (km) 150km
Auto Cutter  YES
Dimensions(WxDxH) 201 W × 140 D × 128 H (mm)
Packing dimension 295 W × 215 D × 183 H (mm)
Net Weight 1.23KG
Gross Weight 2.2KG
Power Input AC 110V/220V,50-60Hz
Power Output DC 24V/2A
I/O Ports Serial+USB+Ethernet
Operating Temperature  0 to 45℃
Humidity 10 - 80%  RH
Safety FCC/ CE/ RoHS
用戶手冊
規格單張
EC-PM-80250 Leaflet
