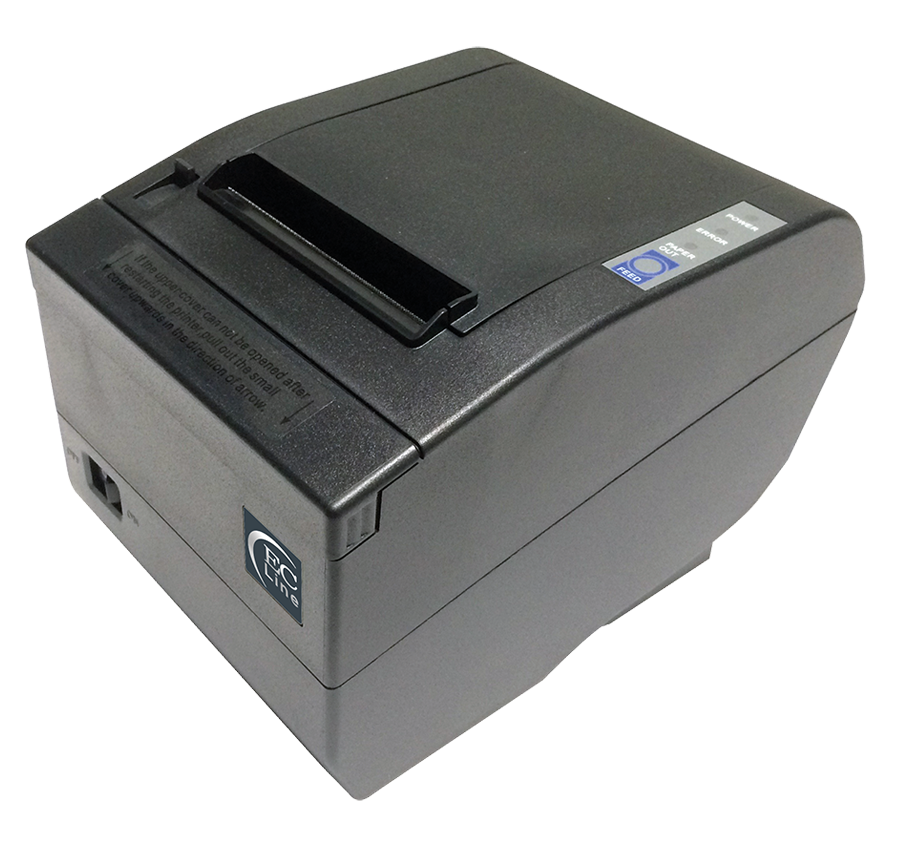

熱感收據打印機
EC-PM-80320
返回

• 220 mm / sec high-speed printing

• Japanese print head

• Japanese cutter unit

• Support NV Image download

• Automatic black mark detection

Print Method Direct thermal line
Print Resolution  203x203 dpi
Max Printing Speed  220mm/s
Max Printing Width  80mm, 640 dots
Kitchen Print NO
OS Support up to Windows 10, Linux, OPOS
Width 80mm79.5± 0.5 mm
Thickness 0.065 ~ 0.15 mm
Character Set ASCII: 13 international character sets
Character/Line Font A - 48columns/
Font B - 64columns/ Simplified/Traditional Chinese - 21columns or 24columns
Barcodes Supported  Linear bar code: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, CODE128, ITF-25, CODABAR
Two-dimension code: PDF417, QR CODE
Mechanism (km) 100km
Auto Cutter  YES
Dimensions(WxDxH) 145 W × 200 D × 145 H (mm)
Packing dimension 290 W × 235 D × 270 H (mm)
Net Weight 2.03KG
Gross Weight 3.36KG
Power Input 40W
Power Output Nil
I/O Ports Serial+USB/ Parallel/
USB+Ethernet/ BT/ Wireless
Operating Temperature  5 to 35℃
Humidity 25 - 80%  RH
Safety FCC/ CE/ RoHS
