銷售點終端機

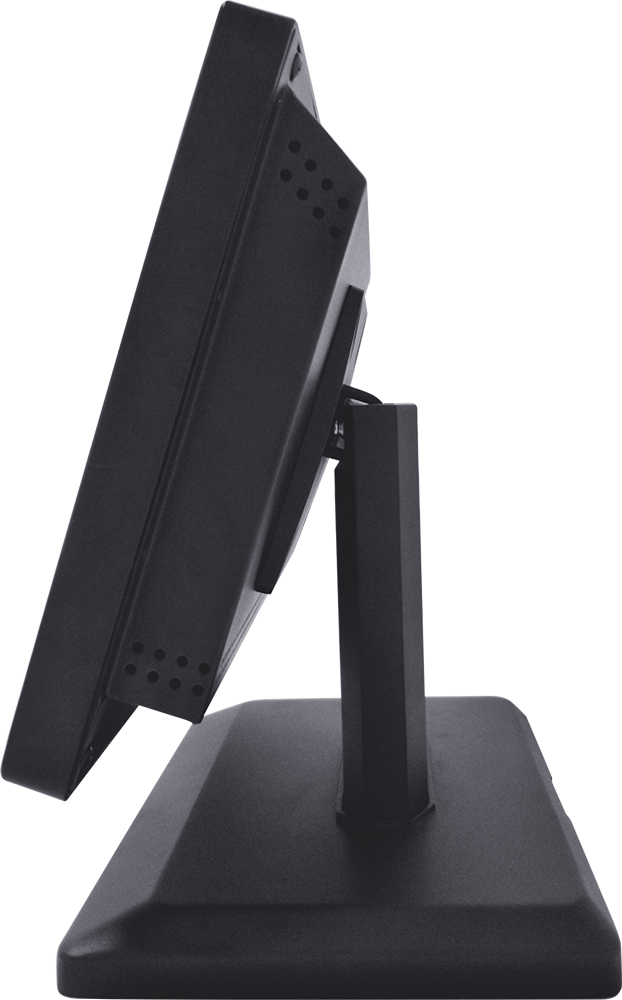

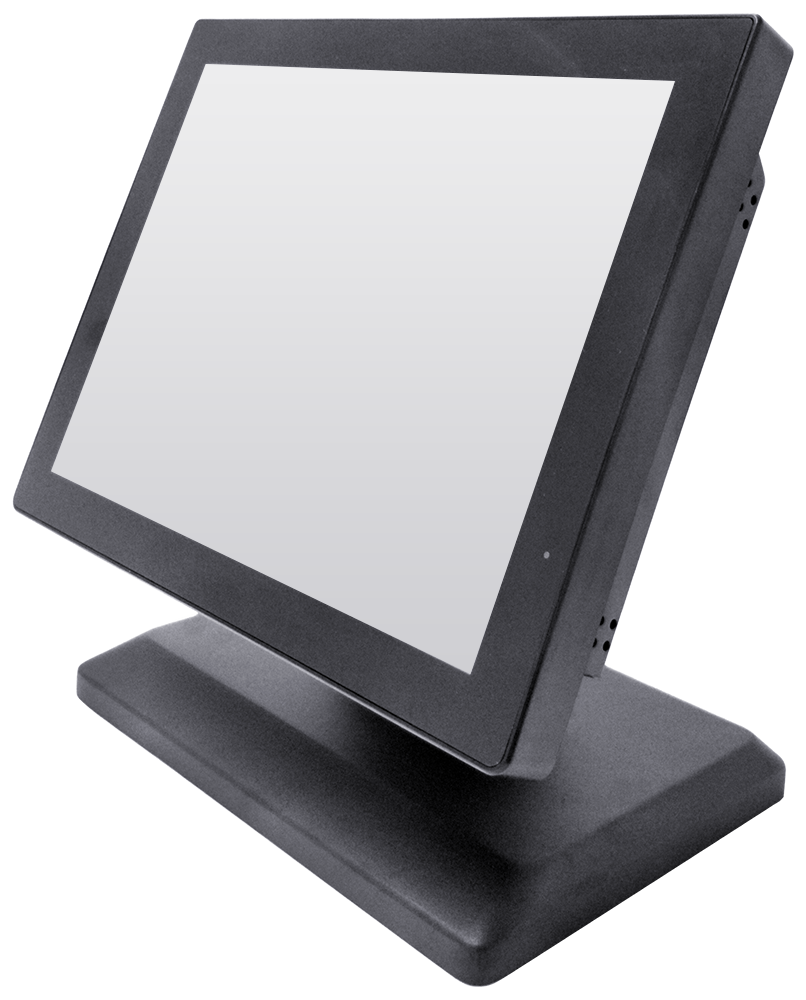

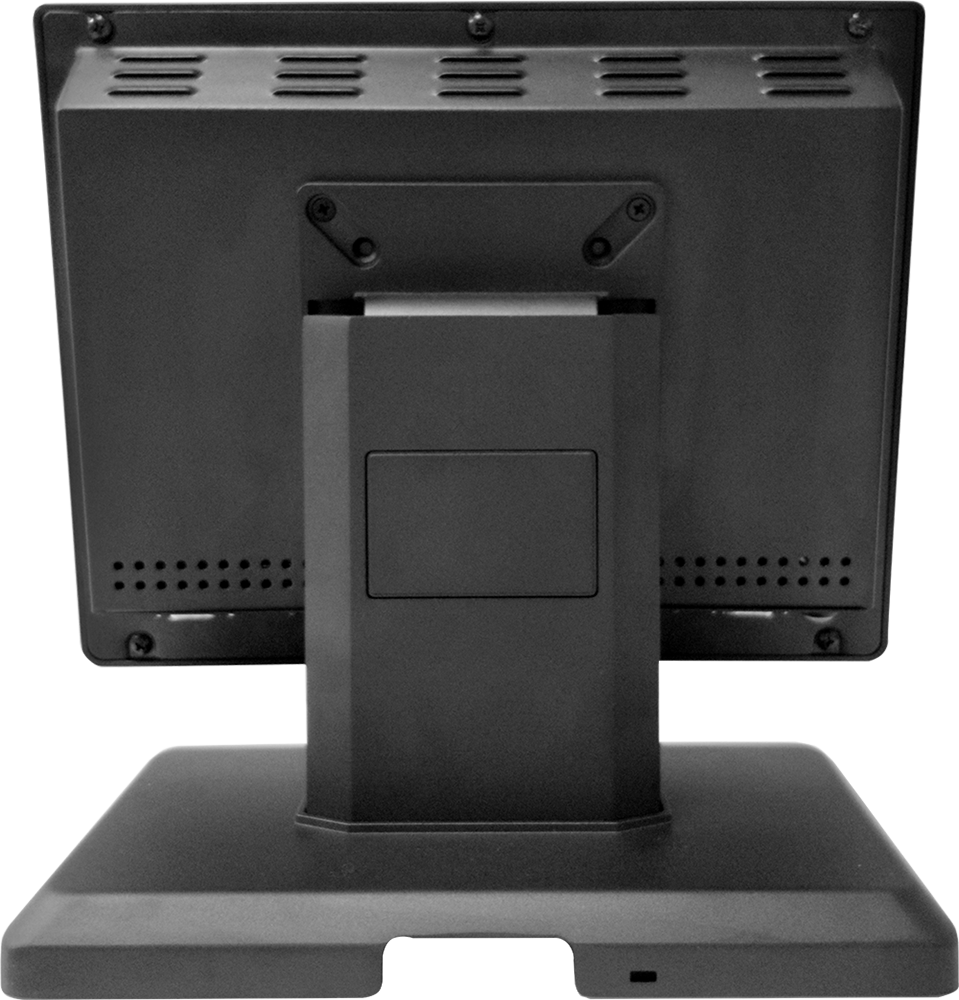

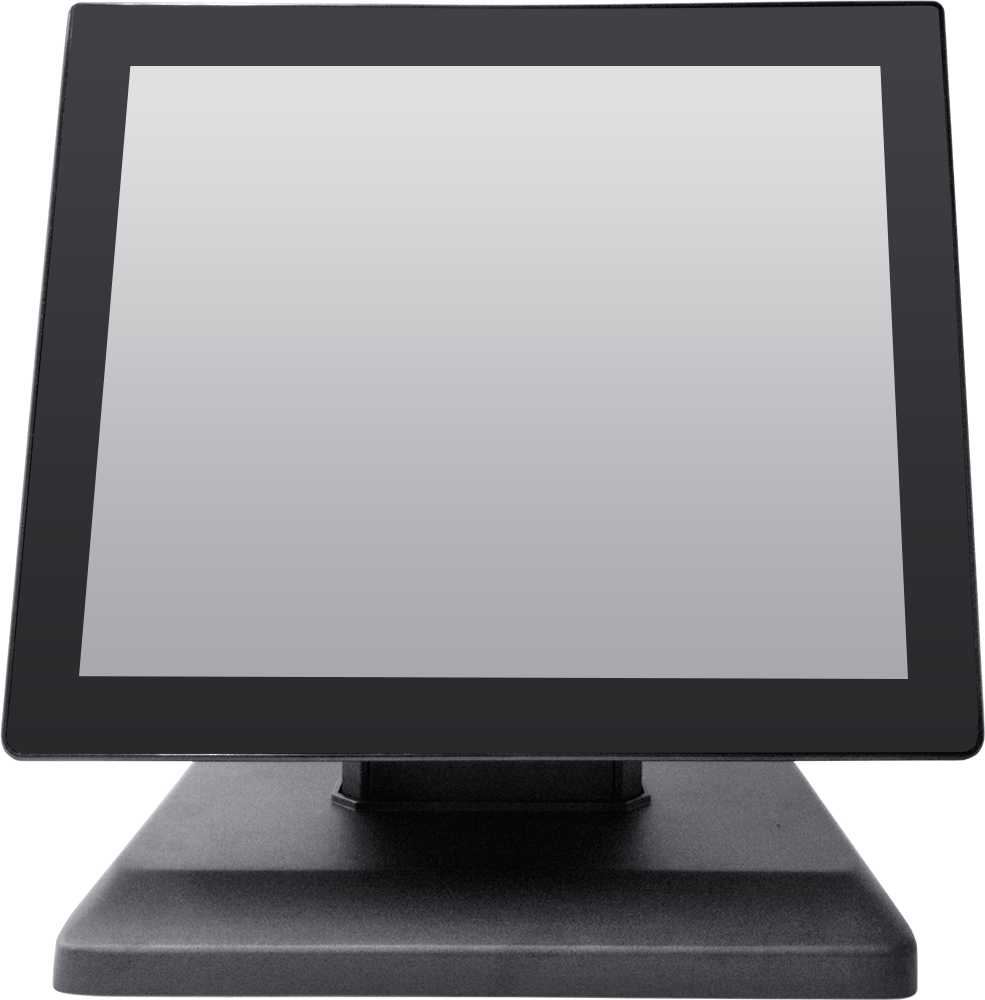

EC-1219BF
返回

• True Flat Bezel free Surface Touch

• Grade A industrial grade LCD monitor

• VESA Mounting

• Various interfaces combination

CPU Intel® Celeron® Processor J1900
Memory 4G
Storage 64G SSD
OS Support Windows 7 or up/linux(android)
Display Size 12"
Resolution XGA 1024*768
Brightness 330cd /㎡
Backlight Type WLED
Contrast Ratio 450:1
Response Time  2(Tr)/10(Td)ms
Viewing Angle (Up/ Down/ Left/ Right) 55/55/70/70
Video Interface LVDS
Touch 12" Flat plane four line resistance screen
I/O Port DC IN(DC 2.5)
POWER ON/OFF

1×VGA
2×USB2.0
2×USB3.0
1×LAN
1×MIC
1×LINE
2*COM(DB9)
1*CASH DRAWER
Housing Material ABS+Magaluma
Tilt Angle 60°
VESA Mounting  100*100MM
Dimensions (W x D x H) 294*175*294MM(AT stand)、294*195*294MM(L stand)
Packing Dimension (W x D x H) 405*245*390MM
Net Weight 5.1kg(AT stand)/5.6kg(L stand)
Gross weight 6.2kg(AT stand)/6.7kg(L stand)
Consumption 35W(MAX)
Operating Temperature  0 ℃ to 40℃
Storage Temperature  -20℃ to 60℃
Humidity 20﹪~80﹪(RH)
Shock / Drop Class A Package  1~20.99 lbs(0.45~9.54㎏) 30 in /(76.20㎝)
Power Input AC 100-240V/50-60HZ  1.5A
Power Output DC 12V/5A
Safety FCC CE 3C ROHS
IP Rating IP65(Positive)
ISO Trick 1/2/3 Magnetic Stripe Reader  support
VFD -
Second Display (9.7", 10.1", 12", 15") -
wireless support
iButton -
