銷售點終端機

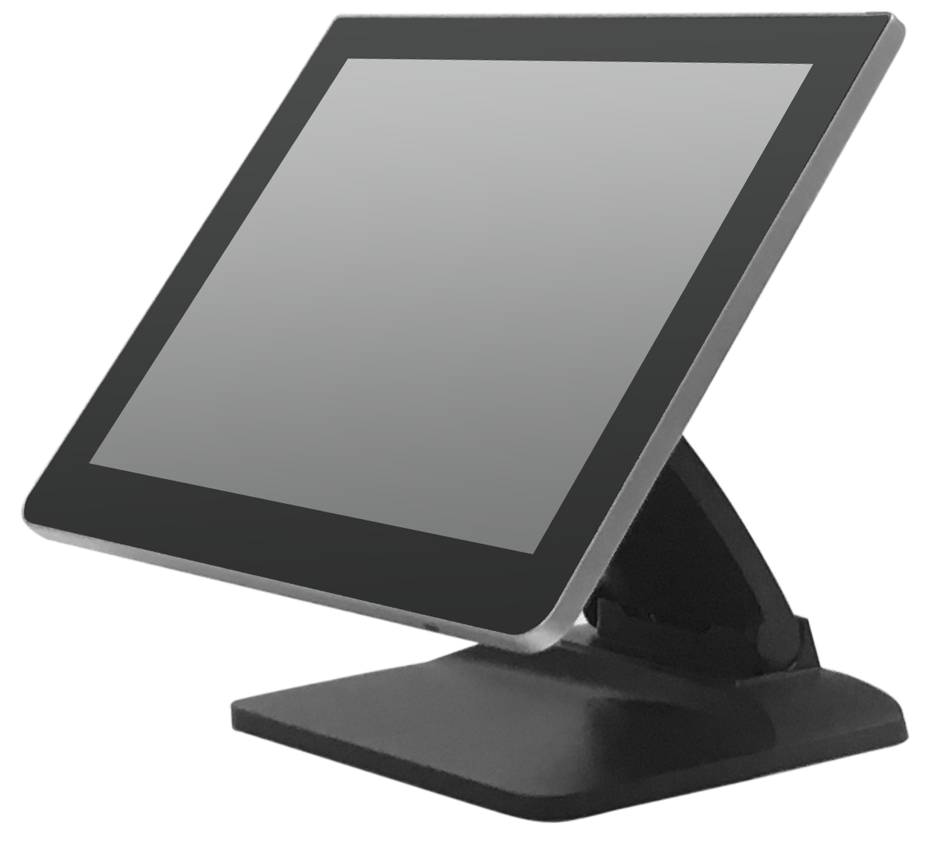

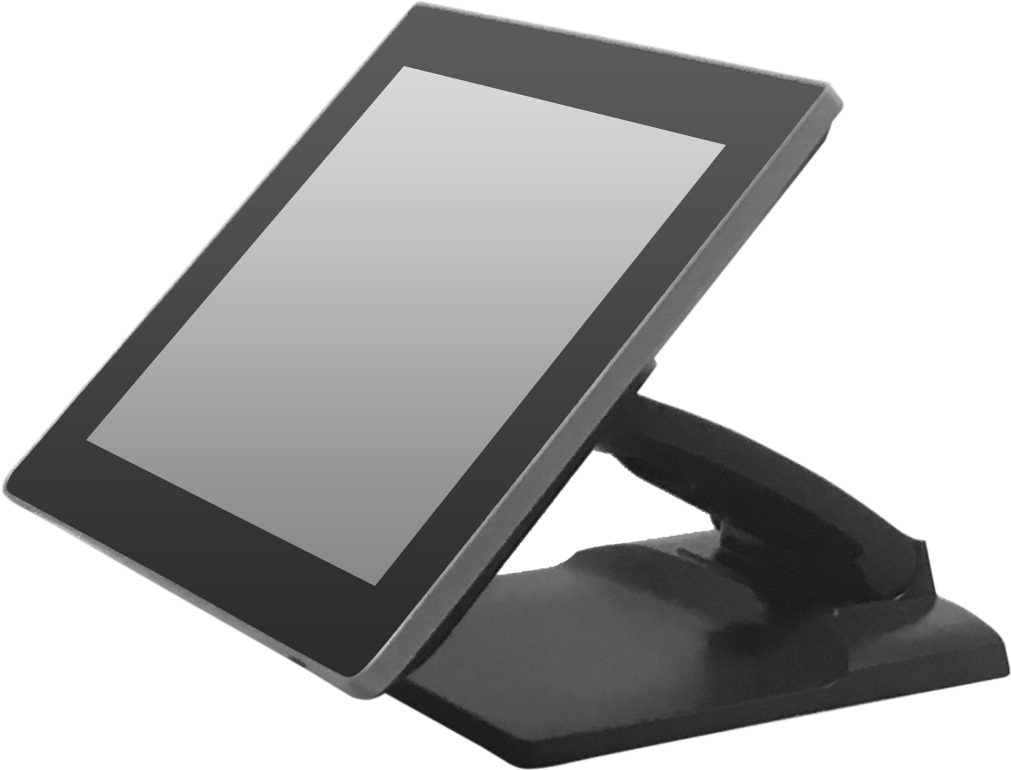

EC-FS-1538
返回

-> EC-FS-1538 Introduction Video

• True Bezel Free Designing

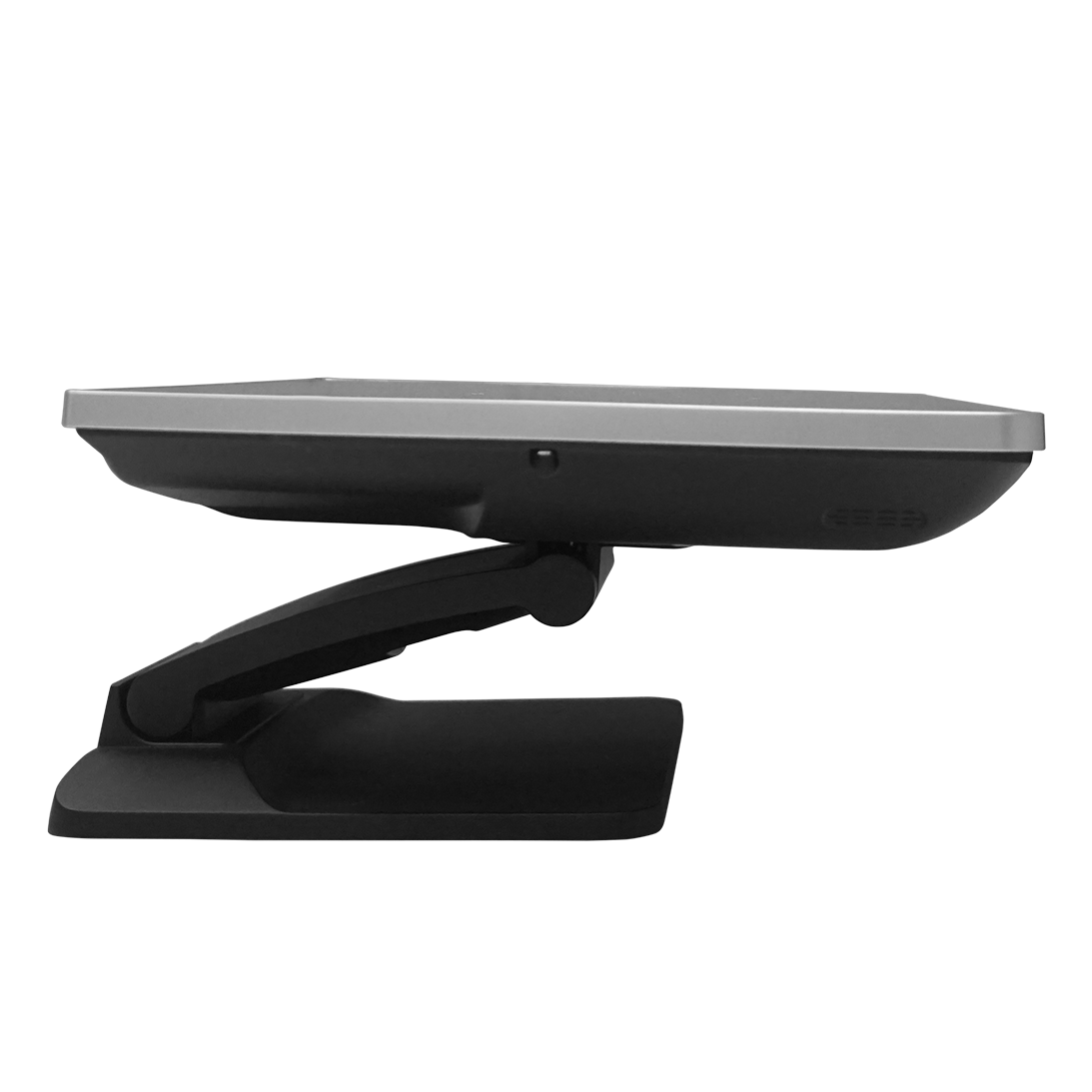

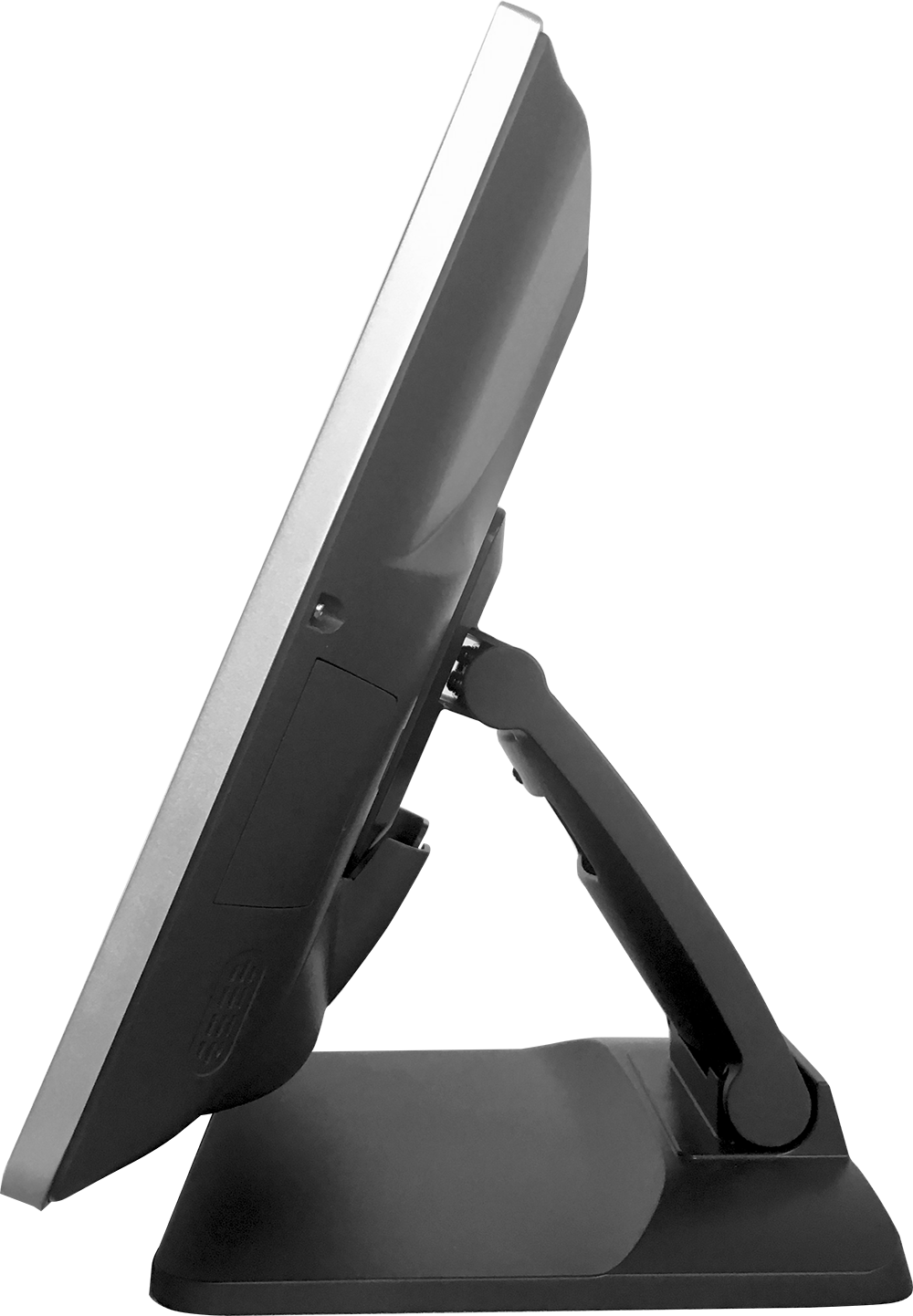

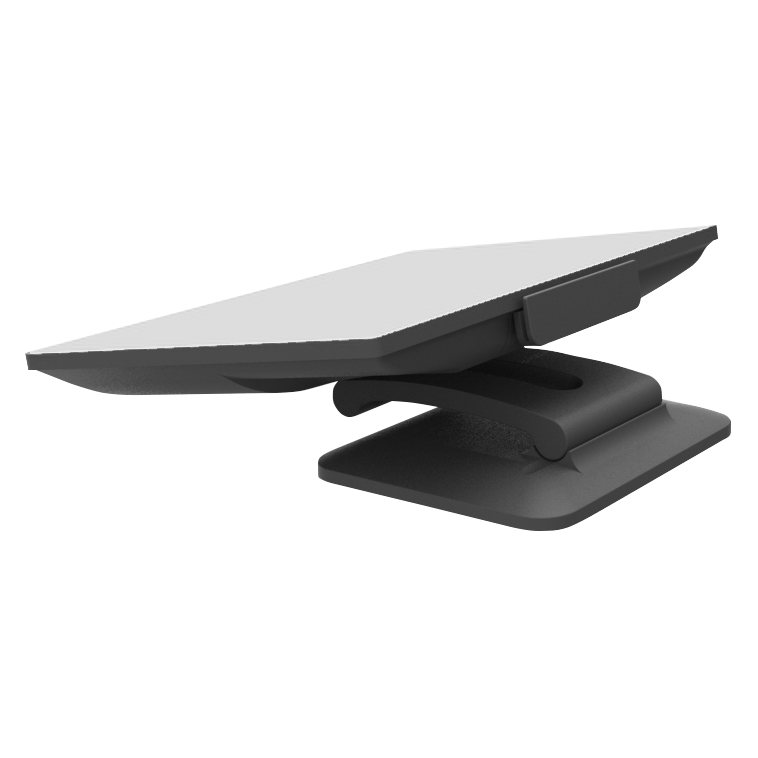

• Foldable Stand with Multi tilt angles


• Capacitive Touch Screen


• Expand peripherals as module integration

Model Number EC-FS-1538
CPU Intel® Celeron® Processor J1900
(2M Cache, up to 2.42 GHz)
Memory DDR3L 1333 4GB
Storage SSD  64G
OS Support Windows 7 or up/linux(android)
Display Size 15"
Touch 15" Capacitive Touch Screen (Glass and Glass)
Resolution XGA 1024×768 @ 60Hz
Brightness 350cd /㎡
Backlight Type WLED
Contrast Ratio 700:1
Response Time  2(Tr)/10(Td)ms
Viewing Angle (Up/ Down/ Left/ Right) 70/70/80/80
Video Interface LVDS

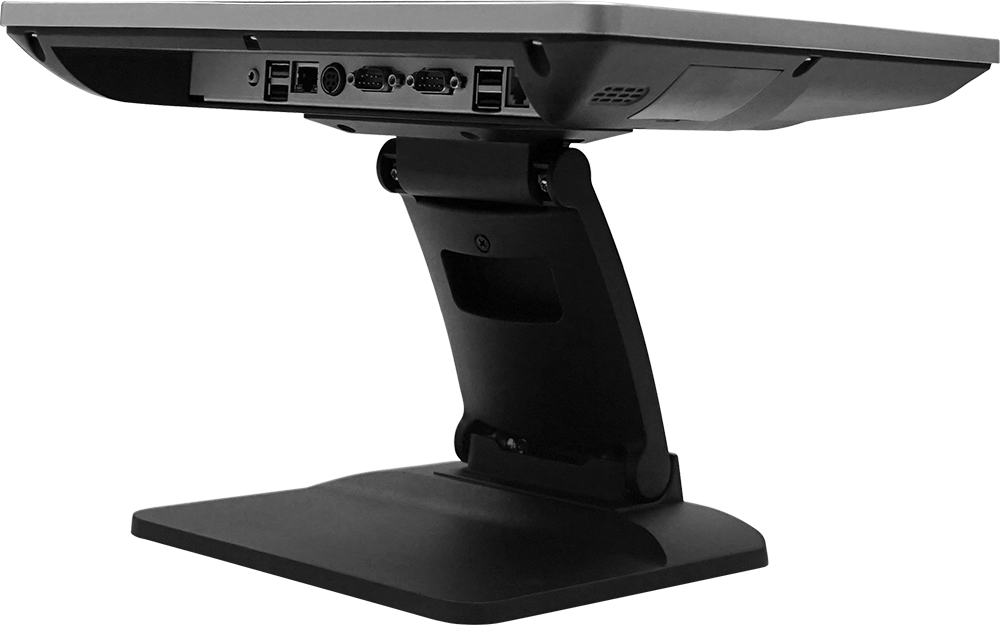

I/O Port DC IN(Power DIN4)
POWER ON/OFF
2×COM
1×RJ11 for Cash Drawer (GPIO)
6×USB2.0(without MSR,VFD,LED8)
1×USB3.0
1×LAN

1×LINE



Housing Material Magaluma
Tilt Angle 175°(TOP)

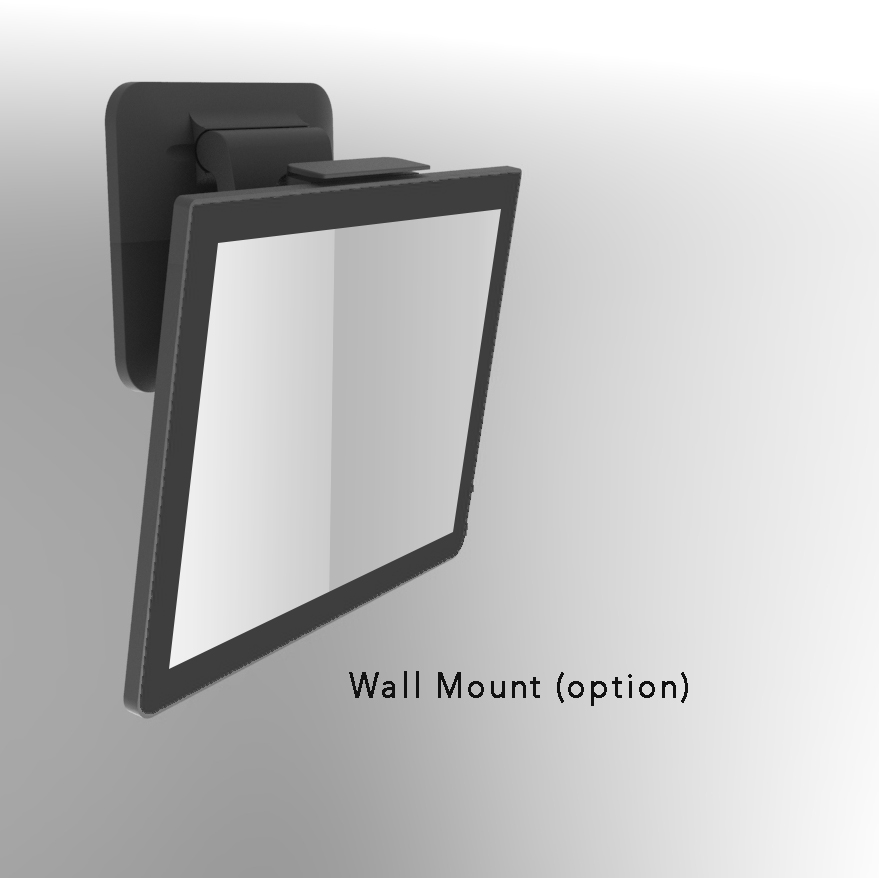

VESA Mounting  75*75MM
Dimensions (W x D x H) 362 W × 205.5 D × 321 H (mm)
Packing Dimension 430*175*380MM
Net Weight 4.84KG
Gross weight 6KG
Consumption 35W(MAX)
Operating Temperature  0 ℃ to 40℃
Storage Temperature  -20℃ to 60℃
Humidity 20﹪~80﹪(RH)
Shock / Drop Class A Package  1~20.99 lbs(0.45~9.54㎏) 30 in /(76.20㎝)
Power Input AC 100-240V/50-60HZ  1.5A
Power Output DC 12V/5A
Safety FCC CE 3C ROHS
IP Rating IP65(Positive)
ISO Trick 1/2/3 Magnetic Stripe Reader  support
VFD support

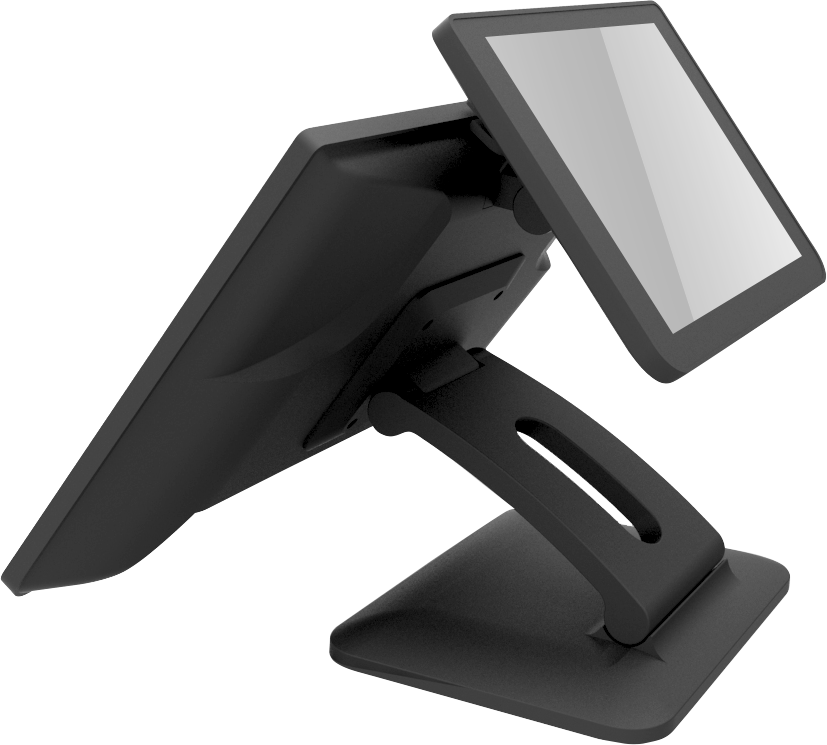

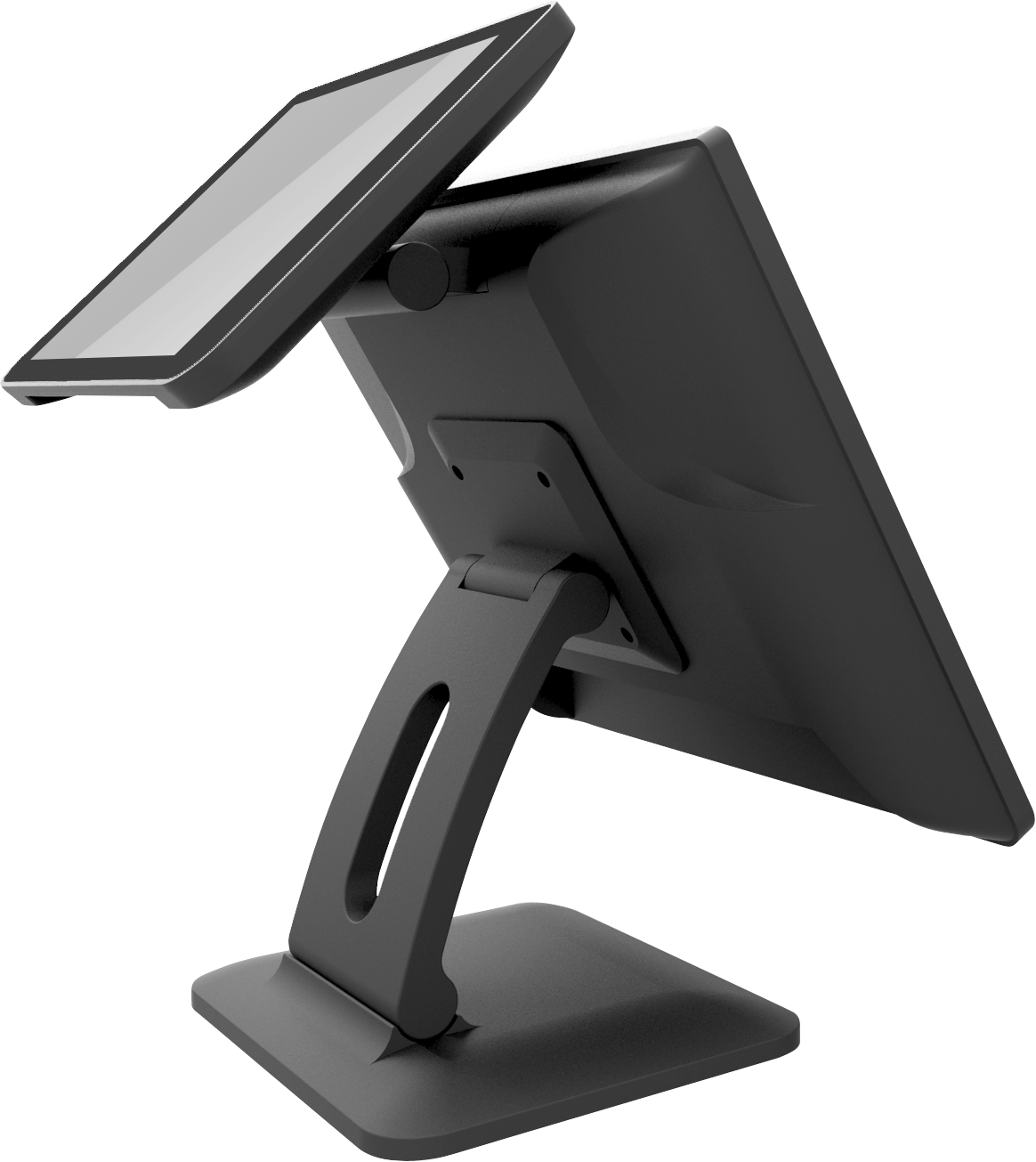

Second Display  support
Wireless support
iButton No-support
iButton+MSR N/A
Finger Senor N/A
