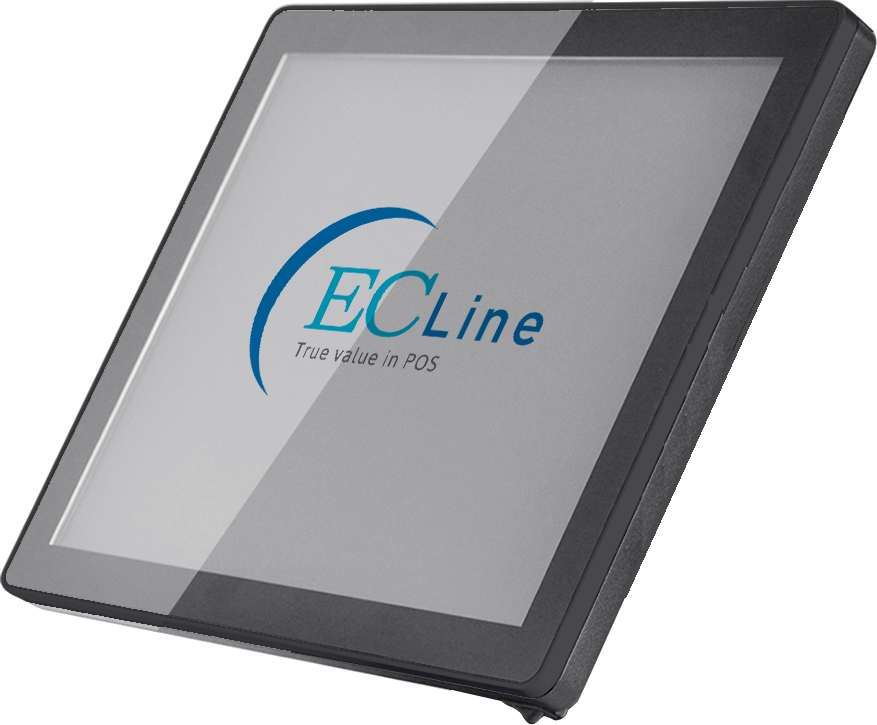

Kitchen Terminal
EC - VP - 1100 (10 / 12 / 15 / 21.5) - WR
返回

High performance Intel Celeron J6412 CPU

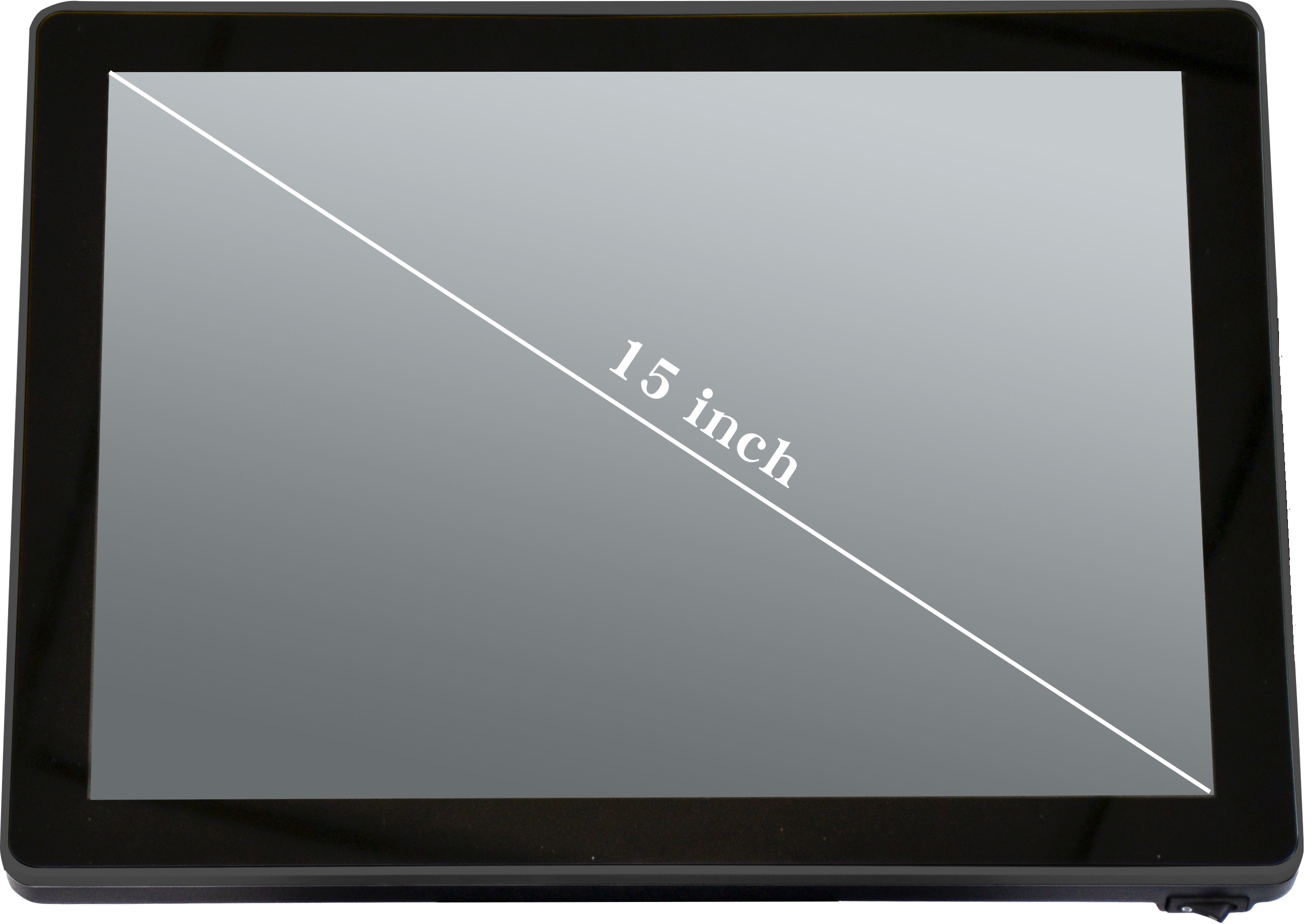

10, 12,15 inch LCD Display

Officailly support Win-11

Metal enclosure, sealed design

Sealed Cables Housing

Sealed Speaker

With Capacitive Touch (Optional Resistive Touch)

Complied with IP65

LED Panel
Model Name  VP-1100EL-WR   KT-10EL-WR
Display Size 15 Inch  12 Inch 10 Inch
Display Mode 4:03 4:03 4:03
Display Resolution 1024 x 768 XGA 1024 x 768 XGA 1024 x 768 XGA
Backlight Type LED LED LED
Brightness 350cd/m² 350cd/m² 350cd/m²
Response Time  10ms 10ms 10ms
Contrast Ratio 600:01:00 600:01:00 600:01:00
Touch Capacitive Touch with E-Galaxy  Capacitive Touch with E-Galaxy  Capacitive Touch with E-Galaxy
"Viewing Angle 80°/80°/70°/70° 80°/80°/70°/70° 80°/80°/70°/70°
(Up/ Down/ Left/ Right)"

International Protection
IP Rating IP65 IP65 IP65

System
Operating System Windows 10, Windows 10 IOT, Windows 11 Windows 10, Windows 10 IOT, Windows 11 Windows 10, Windows 10 IOT, Windows 11
Processor Intel® Celeron® Processor J6412 Intel® Celeron® Processor J6412 Intel® Celeron® Processor J6412
Processor Speed 2.00 GHz, up to 2.60GHz 2.00 GHz, up to 2.60GHz 2.00 GHz, up to 2.60GHz
Memory DDR4-2666/2933/3200MHz, 8GB DDR4-2666/2933/3200MHz, 8GB DDR4-2666/2933/3200MHz, 8GB
Storage 128 SSD, up to 256GB SSD 128 SSD, up to 256GB SSD 128 SSD, up to 256GB SSD

Interface
Video Interface EDP/LVDS EDP/LVDS EDP/LVDS
Standard Model:
USB2.0 2 2 2
Ethernet 1 1 1
DC IN (12V) 1 1 1
Customized:
USB 2.0 4 4 4
RS232 2 2 2
Ethernet 1 1 1
DC IN (12V) 1 1 1

Power
Power Input AC100V‮!‬ك240V‮!‬A50/60Hz AC100V‮!‬ك240V‮!‬A50/60Hz AC100V‮!‬ك240V‮!‬A50/60Hz
Power Output DC 12V/5A DC 12V/5A DC 12V/5A
Consumption 35W‮!‬‭]‬MAX‮!‬‭^‬ 35W‮!‬‭]‬MAX‮!‬‭^‬ 35W‮!‬‭]‬MAX‮!‬‭^‬

Physical Specifications
Housing Material Aluminium Aluminium Aluminium
Dimensions Without Base 350W x 274H x 48D mm
Net Weight  4.9KG
Gross Weight  6.8KG
Environmental Conditions
Operating Temperature  -10˚C to 50˚C -10˚C to 50˚C -10˚C to 50˚C
Storage Temperature  -20‮"‬J to 60‮"‬J -20‮"‬J to 60‮"‬J -20‮"‬J to 60‮"‬J
Humidity 10% to 85% 10% to 85% 10% to 85%

Acessories
Included Power cord / Standard Wall Mount Kit Power cord / Standard Wall Mount Kit Power cord / Standard Wall Mount Kit

Safety FCC/ CE/ RoHS FCC/ CE/ RoHS FCC/ CE/ RoHS
Optional Peripherals

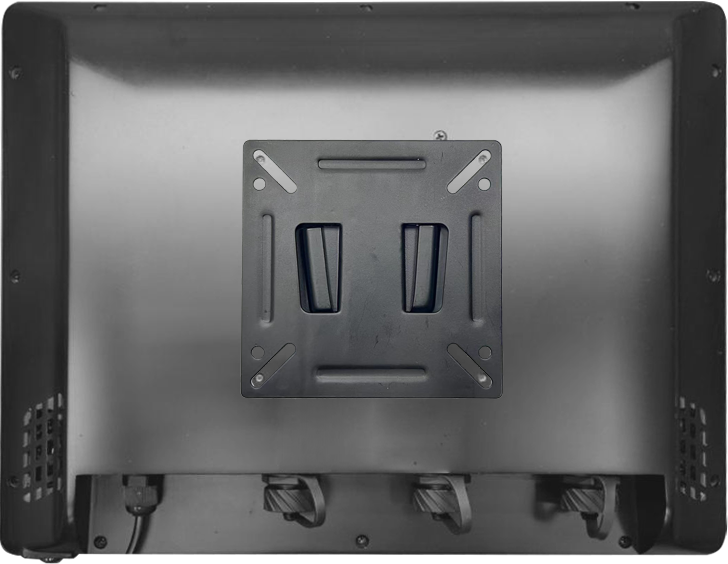

VESA Mounting  100 x 100 (mm) 100 x 100 (mm) 100 x 100 (mm)

Optional Touch
Touch Resistive Touch Resistive Touch Resistive Touch
