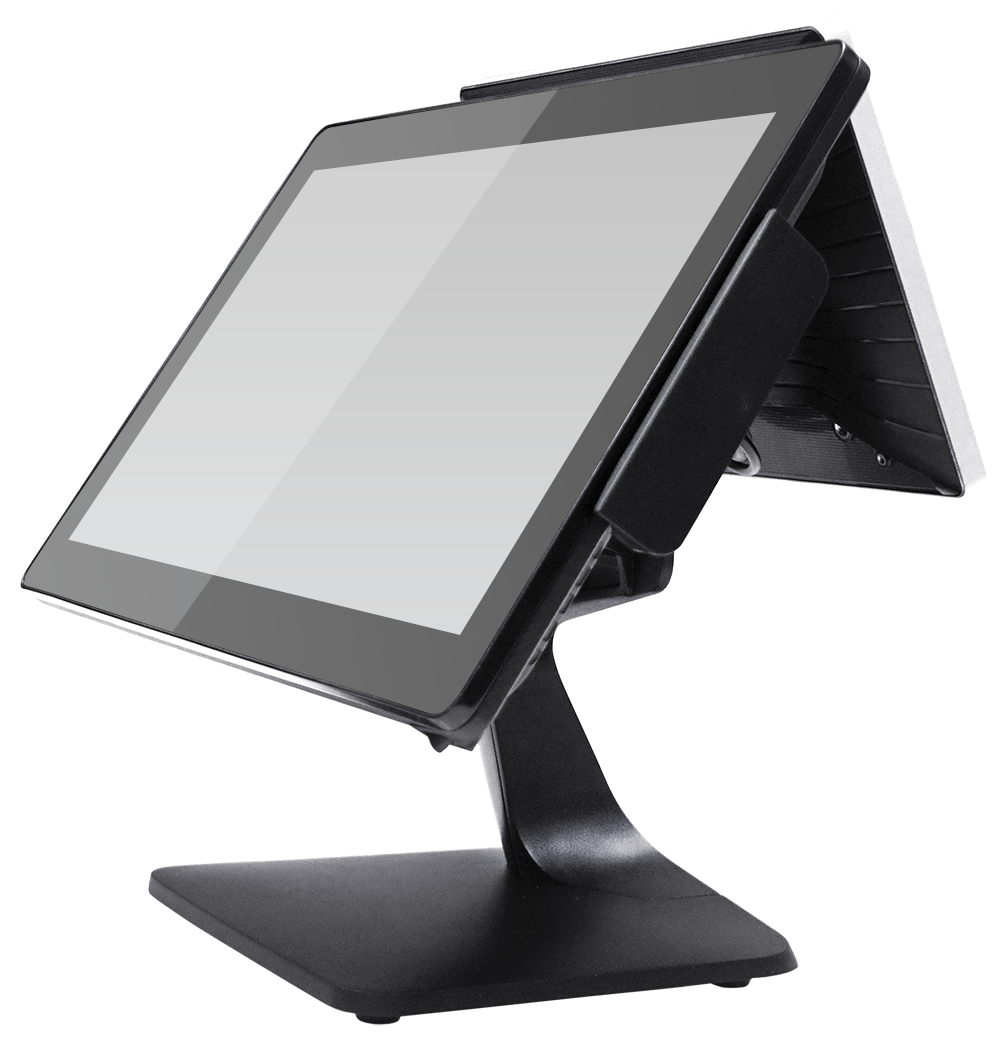

• 15.6” Bezel free with Capacitive touch
• Flexible architectures for peripheral
MSR / VFD / ibutton / Finger Senor
• 10.1“/ 15” Second display supported
• Hidden cable management
| Model Name | EC-VP-3100 (J6412) | EC-VP-3100 (i3/i5) | EC-VP-3100 (J1900) | |
| System | CPU | Intel® J6412 Quad Core up to 2.60GHz | Intel® Core i3-1115G4 up to 4.10G Dual-Core Intel® Core i5-1135G7 up to 4.20G Quad-Core |
Intel® Celeron® Processor J1900 2.4GHz |
| Memory | DDRIV-2666/2933/3200 16GB (up to 32GB) | DDRIV-2666/2933/3200 4GB (up to 32GB) | DDRIII-1600 4GB (up to 8GB) | |
| Storage | 128 / 256GB SSD or 500GB SATA Hard Disk | 128 / 256GB SSD or 500GB SATA Hard Disk | 128 / 256GB SSD or 500GB SATA Hard Disk | |
| OS Support | Windows 10, Windows 10 IOT, Windows 11, Linux (ubuntu) | Windows 10, Windows 10 IOT, Windows 11, Linux (ubuntu) | Windows 7, Windows 8.1, Windows Embedded 8.1 Industry, Windows 10, Windows 10 IOT, POS Ready 7, Linux (ubuntu) |
|
| LED Panel | Display Size | 15.6 Inches | 15.6 Inches | 15.6 Inches |
| Resolution | 1365 × 768 (Default) / 1920 × 1080 (Option) | 1365 × 768 (Default) / 1920 × 1080 (Option) | 1365 × 768 (Default) / 1920 × 1080 (Option) | |
| Brightness | 220cd/m² | 220cd/m² | 220cd/m² | |
| Backlight Type | LED | LED | LED | |
| Contrast Ratio | 600:1 | 600:1 | 600:1 | |
| Response Time | 10ms | 10ms | 10ms | |
| Viewing Angle (Up/ Down/ Left/ Right) |
80°/80°/70°/70° | 80°/80°/70°/70° | 80°/80°/70°/70° | |
| Video Interface | EDP | EDP | EDP | |
| Touch | 9-point Projected Capacitive Touch | 9-point Projected Capacitive Touch | 9-point Projected Capacitive Touch | |
| Interface | DC 12V IN | x 1 | x 1 | x 1 |
| DC 12V OUT | x 1 | x 1 | x 1 | |
| HDMI | x 1 | x 1 | x 1 | |
| USB2.0 | x 2 | x 2 | x 2 | |
| USB3.0 | x 4 | x 4 | x 4 | |
| RS232 | x 2 | x 2 | x 2 | |
| CASH DRAWER(RJ11) | x 1 | x 1 | x 1 | |
| Physical Specifications | Housing Material | Aluminum | Aluminum | Aluminum |
| VESA Mounting | 75 x 75 (mm) & 100 x 100 (mm) | 75 x 75 (mm) & 100 x 100 (mm) | 75 x 75 (mm) & 100 x 100 (mm) | |
| Dimensions (W x D x H) | 387 × 200 × 315 (mm) | 387 × 200 × 315 (mm) | 387 × 200 × 315 (mm) | |
| Packing Dimension (W x D x H) | 440 x 310 x 413 mm | 440 x 310 x 413 mm | 440 x 310 x 413 mm | |
| Net Weight | 4.9KG | 4.9KG | 4.9KG | |
| Gross weight | 6.8KG | 6.8KG | 6.8KG | |
| Shock / Drop | 75cm with packaging | 75cm with packaging | 75cm with packaging | |
| Power | Consumption | 35W（MAX） | 35W（MAX） | 35W（MAX） |
| Power Input | AC 100-240V | AC 100-240V | AC 100-240V | |
| Power Output | DC 12V/5A | DC 12V/5A | DC 12V/5A | |
| Environmental Conditions | Operating Temperature | -10˚C to 50˚C | -10˚C to 50˚C | -10˚C to 50˚C |
| Storage Temperature | -20℃ to 60℃ | -20℃ to 60℃ | -20℃ to 60℃ | |
| Humidity | 10% to 85% | 10% to 85% | 10% to 85% | |
| Accessories | Safety | FCC / CE / RoHS | FCC / CE / RoHS | FCC / CE / RoHS |
| VFD | 2-line VFD | 2-line VFD | 2-line VFD | |
| Second Display | Support | Support | Support | |
| Wireless | Support | Support | Support | |
| iButton | Support | Support | Support | |
| iButton+MSR | Support | Support | Support | |
| ISO Trick | 3 Tracks Magnetic Reader | 3 Tracks Magnetic Reader | 3 Tracks Magnetic Reader |
