銷售點終端機
EC-NEXXT Series
返回

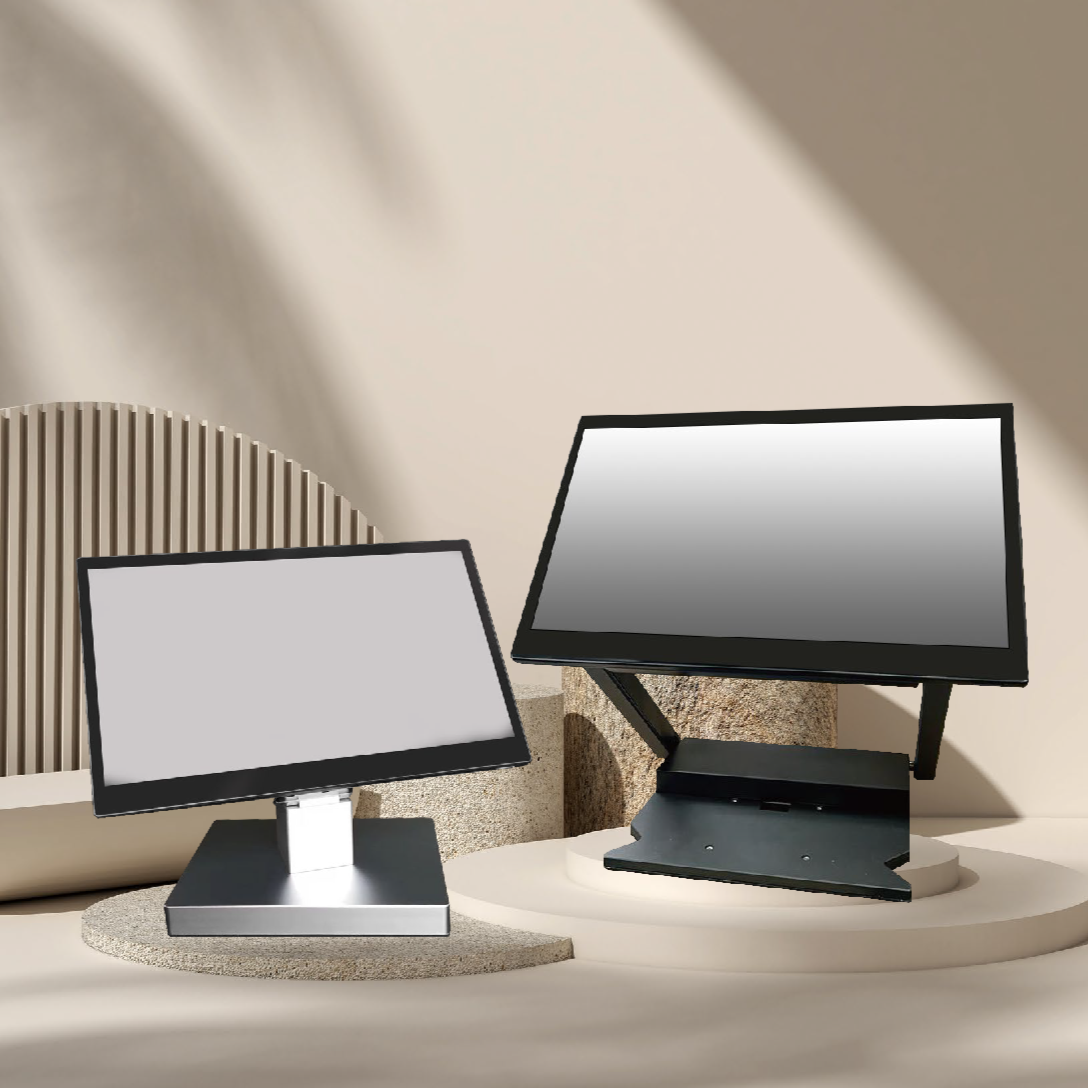

EC-NEXXT 系列是一款輕巧精緻,能夠根據需求選擇枱面或壁掛式,為您提供最完美的解決方案。

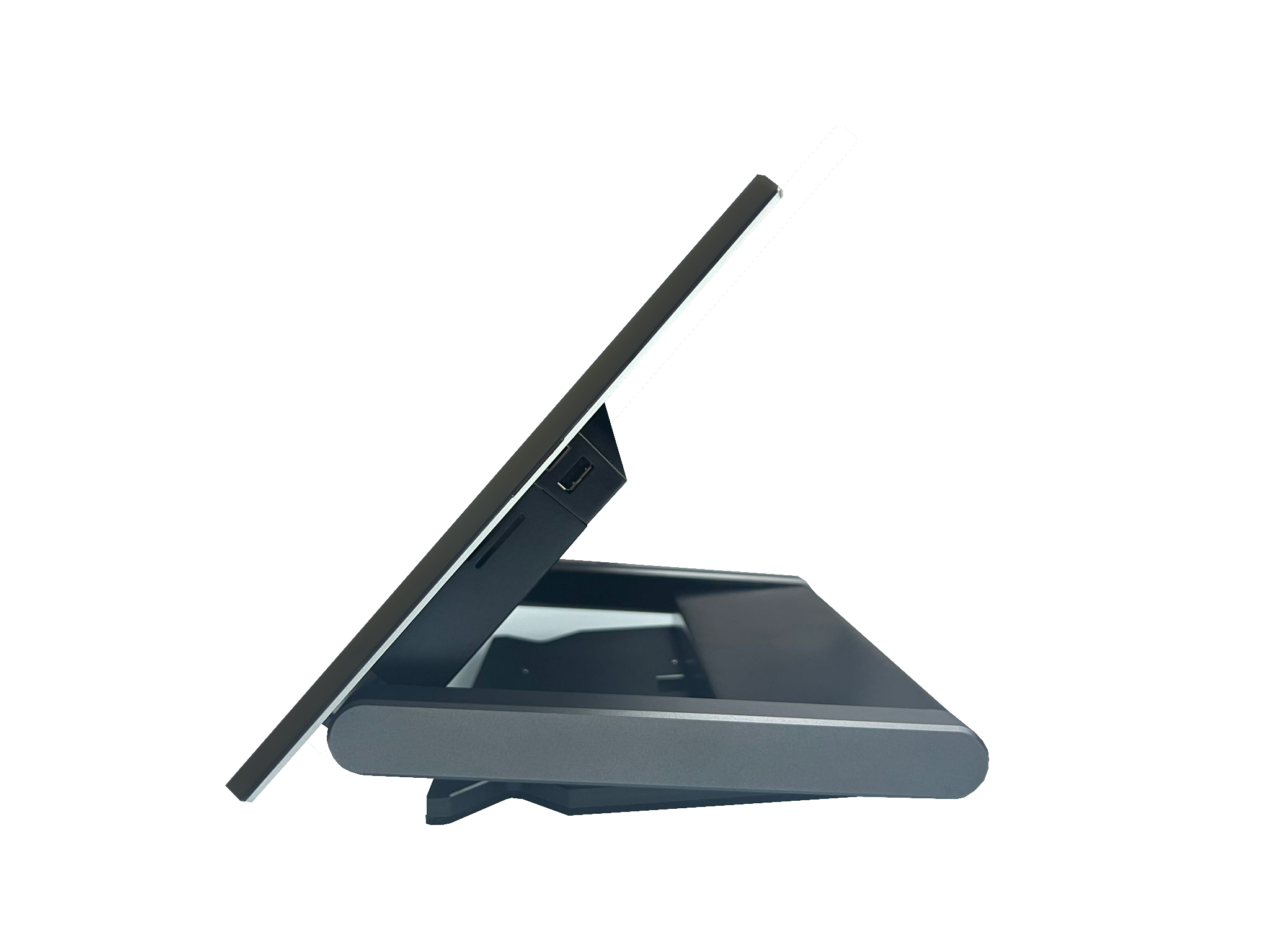

EC-NEXXT 系列是一款折疊的設計,方便存放和攜帶。

15.6 寸無邊框電容式觸控螢幕。

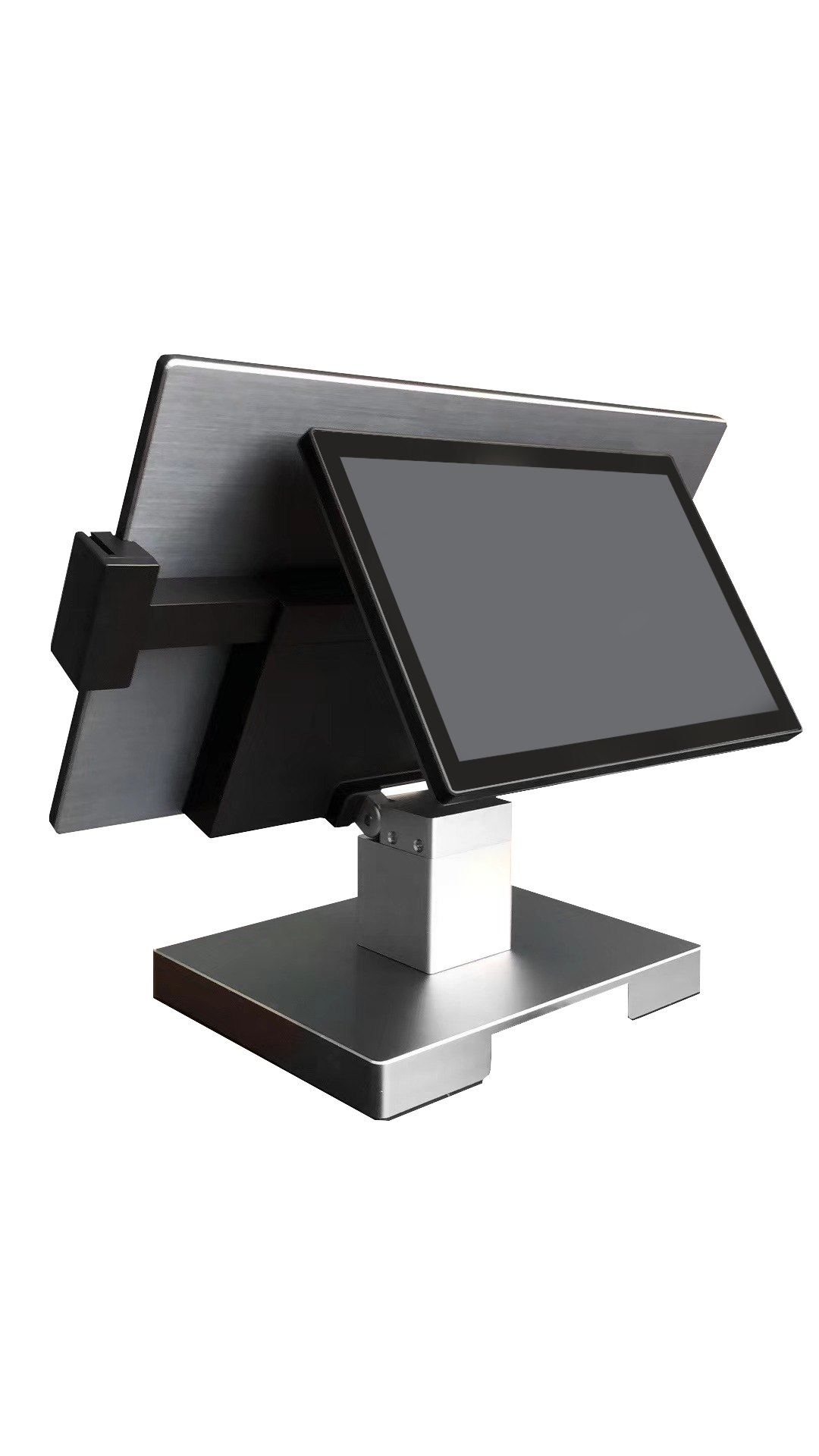

靈活的周邊架構 : MSR / VFD / 10.1"  Second display supported

Processor Intel® J6412 Quad Core Operating System

Windows 10, Windows 10 IOT, Windows 11,

Linux (ubuntu not less than 20.04)

Intel® Core i3-1115G4 up to 4.10G Dual-Core
Intel® Core i5-1135G7 up to 4.20G Quad-Core

Memory DDR4 – 4GB (up to 32GB) Display Size 15.6 Inches

Storage M.2 SSD 128GB (up to 512GB) Resolution 1920 x 1080 (16 : 9)

Consumption 35W(MAX) Brightness 250cd/m²

Housing Material Aluminum  Backlight Type LED

Power Output DC 12V/5A Contrast Ratio 800:1

Operating Temperature  -10˚C to 50˚C Response Time 25ms

Storage Temperature  -20℃ to 60℃ Viewing Angle 80°/80°/70°/70° (Up/ Down/ Left/ Right)

Humidity 10% to 85% Touch 10-point Projected Capacitive Touch

Optional Peripherals VFD / iButton /  Safety FCC / CE / RoHS
Second Display 10.1” (Optional Touch)

EC-NEXXT
Net Weight 4.6 KG Gross Weight 5.0 KG
Overall Dimensions 366W × 425H × 196D mm Packing Dimension  475W x 375H x 110D mm

EC-NEXXT-S
Net Weight 4.6 KG Gross Weight -
Overall Dimensions 366W × 425H × 189D mm Packing Dimension -
驅動程式
用戶手冊
規格單張
EC-NEXXT Leaflet.
下載
