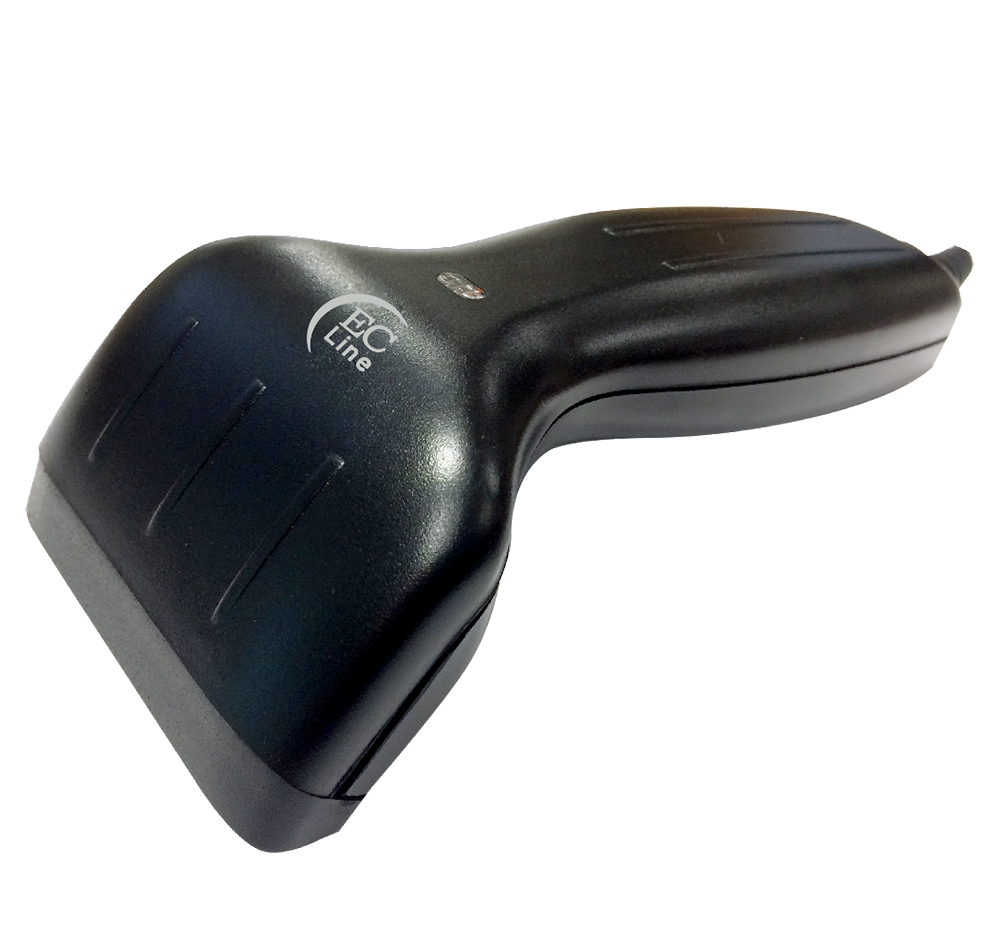

1D 紅光線掃瞄器
EC-CD-8100
返回

• Auto discriminate barcodes

• CCD 50 scan/sec

• Flexible custom configuration

• Light weight for minimum fatigue

• Low power consumption

• Powerful build-in decoder

• PS/2 interface

Width Of Window 8CM
Light source RED LED  632nm
Scan Depth of Field 0~250mm
Resolution 4 mil
Print Contrast Ratio MIN. 30%
Scan Rate 300 Scans/Sec
Symbologies UPC/EAN with Supplemental/ UPC-A/
UPC-E/ CODE 11/ CODE39 Full ASCII/
CODE39/ CODE 93/ CODE 128/ EAN-8/
EAN-13/ ISSN/ ISBN/ ISBT 128/
Coda bar(NW-7)/ GS1-128/
Interleaved 2 of 5/ Matrix 2 of 5/
Industrial 2 of 5/ Standard 2 of 5(IATA)/
Plessey/ MSI/ Plessey/ RSS/ China Post
Baud Rate 9600
Connection Range 0-20cm
Operating Temperature  0°C  to 40°C  /  32°F to 104°F
Storage Temperature  -40°C to 60°C  /  -40°F to 140°F
Humidity 5 - 95%  RH
Shock / Drop 1.5 m with packaging
Voltage DC 3.3V-5V
Power Consumption 110 mA
Charge Mode (Wireless only) N/A
Charge time (Wireless only) N/A
Battery Capacity (Wireless only) N/A
Material ABS
MCU N/A
Memory N/A
Interface  USB   RS-232
Cable   2 m
Dimension  176 L × 85 W × 52 H (mm)
Weight 180 g
Color Black
Safety FCC Class B/ CE
IP Rating N/A
