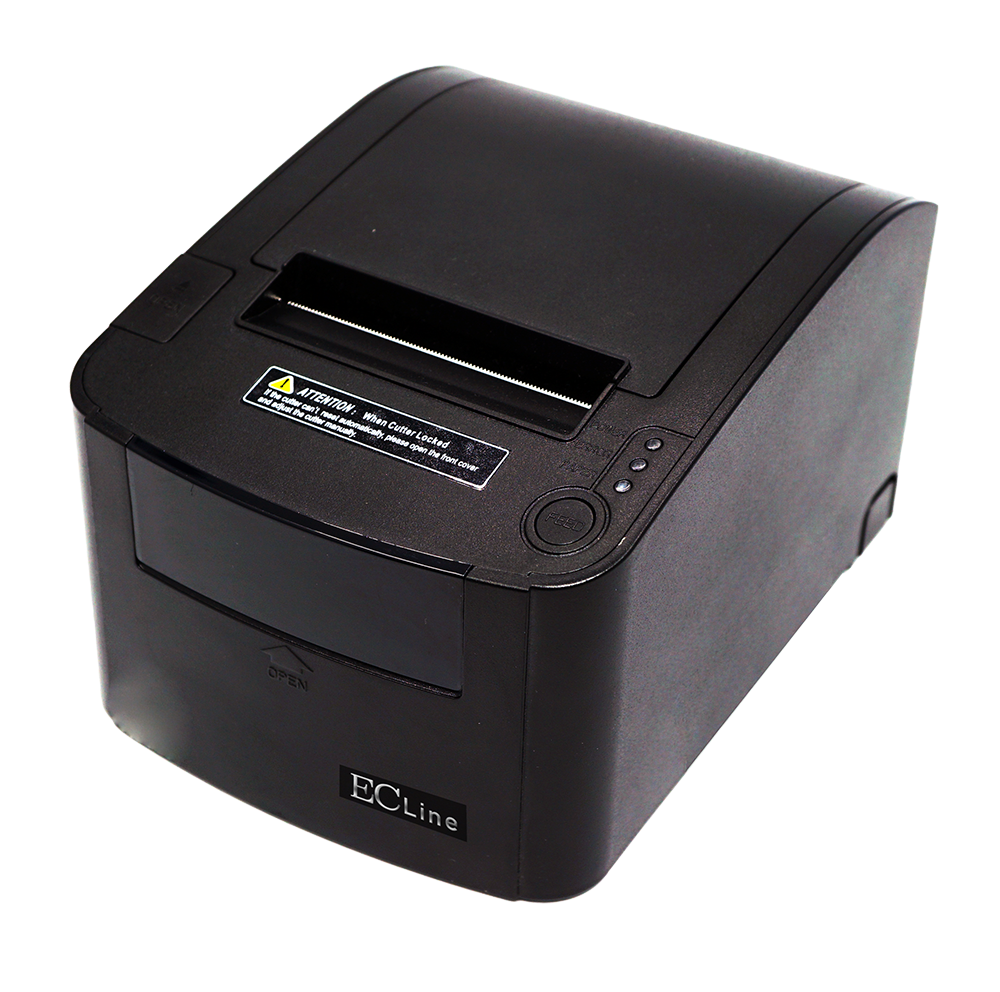

熱感收據打印機
EC-PM-80330
返回

•Fast 300 mm/s printing speed

•ESC/POS & START command sets compatible

•Interface: serial +USB+100M Ethernet standard, Parallel+USB

  optional

•100M network interface card make connection and print more

  faster

•Support 2D barcode printing

•Standard simplified / traditional Chinese characters library

•Built-in large data buffer

•Support network printing status monitoring, computer multiple

  connection

•Windows driver, Linux driver, OPOS driver available

Print Method Direct thermal line
Print Resolution  203dpi
Max Printing Speed  300mm/s
Max Printing Width  72mm
Kitchen Print NO
OS Support Window 7 / Window 8 / Window 10/ Linux / OPOS / Android
Width 80±0.5mm
Thickness 0.054~0.06 mm
Character Set ANK Font Font A: 12×24dots
Font B: 9×17dots
Simplified/Traditional Chinese
Character: 24×24dots
Character/Line 3.75mm(can be adjusted by sending commands)                                                              Font A - 42columns or 48columns/
 Font B:56columns or 64columns/ Simplified/Traditional Chinese - 21columns or 24columns
Barcodes Supported  UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE128/QRCODE
Mechanism (km) 150km
Auto Cutter  YES
Dimensions(WxDxH) 139 W × 181 D × 127 H (mm)
Packing dimension 295 W × 215 D × 183 H (mm)
Net Weight 1.23KG
Gross Weight 2.2KG
Power Input AC 110V/220V,50-60Hz
Power Output DC 24V/2A
I/O Ports Serial+USB+Ethernet/
Parallel+USB
Operating Temperature  0 to 45℃
Humidity 10 - 80%  RH
Safety FCC/ CE/ RoHS
用戶手冊
EC-PM-80330 User Manual
下載
規格單張
EC-PM-80330
下載
