條碼貼紙打印機

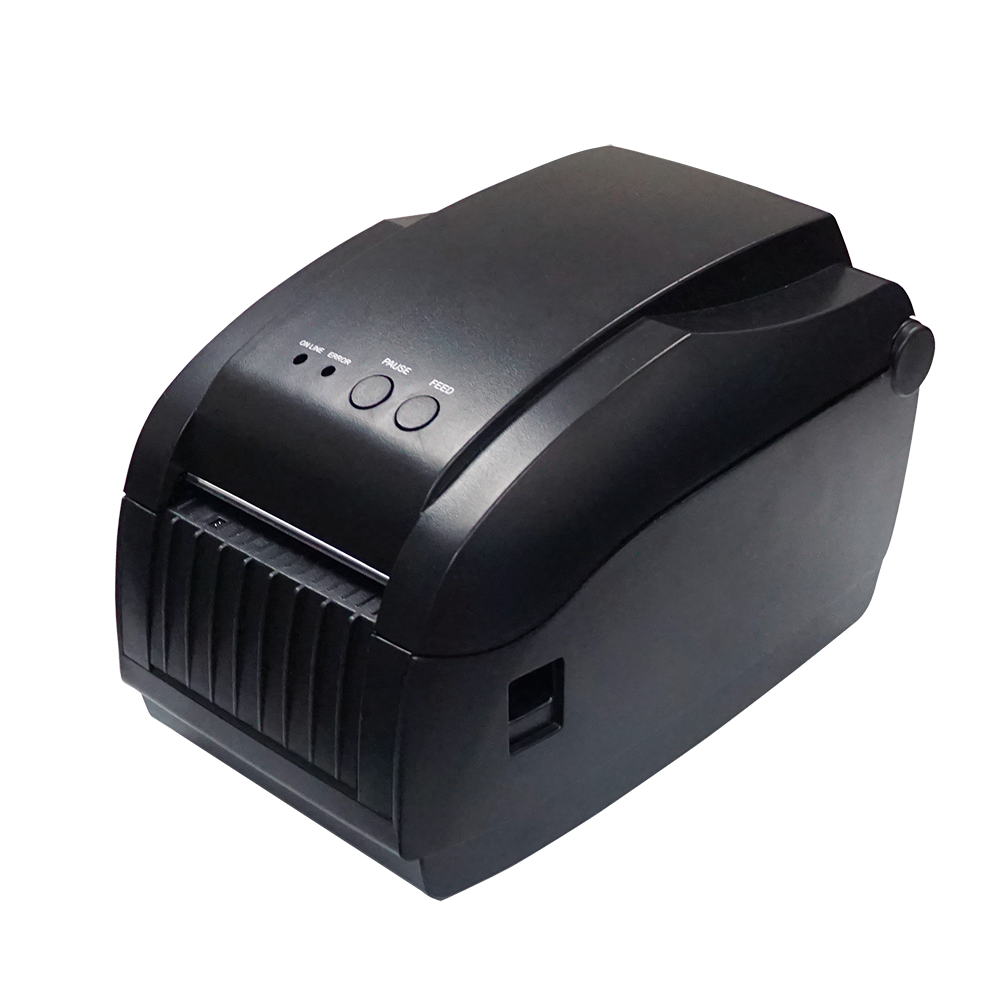

EC-3150D (Phased-Out)
返回

(Phased-Out)

•3inch print width

•6inch / sec ultra high print speed

•Support 2D barcode printing

•Label paper auto positioned

•Compatible with various label software

•BMP, PCX, BAS files download and storage supported

•Suport print media en 16mm to 82mm range, easy operation

  design

•Paper auto checkout and temperature auto controlled function

•Compatible with variuos label software

Print Method Direct thermal label
Print Resolution  203dpi
Max Printing Speed  153mm/s
Max Printing Width  76.2mm
Kitchen Print NO
OS Support Window 7 / Window 10 / Android
Width 25mm~80mm
Thickness 0.14~0.16 mm
Character Set FONT 0 to FONT 8, Optional Multiple
Language Fonts
Character/Line -
Barcodes Supported  CODE128/EAN128/ITF/CODE39/CODE93/
EAN13/EAN13+2/EAN13+5/EAN8/EAN8+2
EAN8+5/CODABA/POSTNET/UPCA+2/UPCA+5/
UPCE+2/UPC-E+5/UPC-E/UPCE+2/UPC-E+5
CPOST/MSI/MSIC/PLESSEY/ITF14/EAN14
Mechanism (km) 150km
Auto Cutter  NO
Dimensions(WxDxH) 156 W × 230 D × 147 H (mm)
Packing dimension 260 W × 230 D × 210 H (mm)
Net Weight 1.65KG
Gross Weight 2.7KG
Power Input AC 110V/220V,50-60Hz
Power Output DC 24V/2A
I/O Ports Serial/ USB/ Ethernet
Operating Temperature  0 to 45℃
Humidity 10 - 80%  RH
Safety FCC/ CE/ RoHS
驅動程式
Drivers
Software
用戶手冊
EC-3150D User Manual
下載
規格單張
EC-3150D Leaflet
下載
EC-3150D Programming Manual
下載
