真空熒光顯示屏
EC-3015
返回

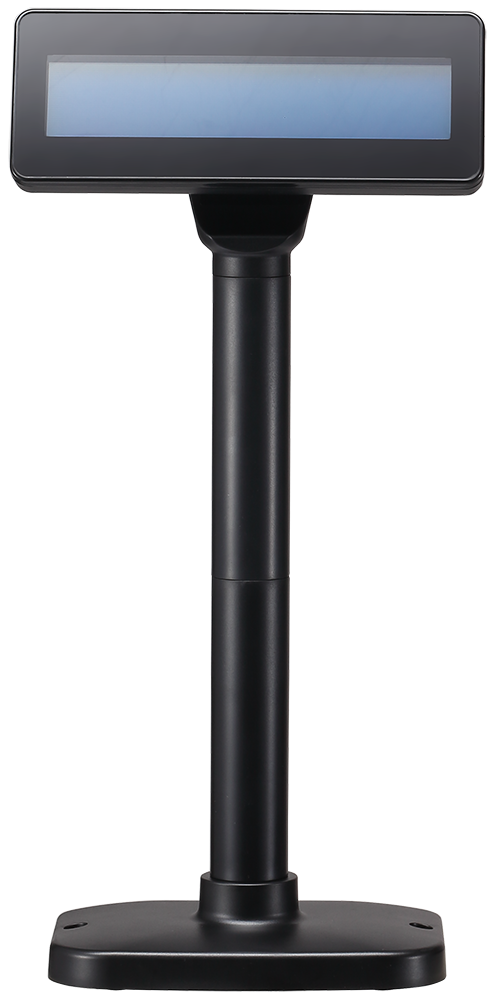

•Vacuum Fluorescent Display

•Supports 32 sets of international Characters

•Innovative hinge design enables easy angle adjustment

•Display adjustable range : 0-355° horizontally, 0-90° vertically

Display Type   Vacuum Fluorescent Display
Display Area   N/A
Font Size   5 × 7 Dots
Back-light   Vacuum Fluorescent Blue-green
White luminance (Center)   500~1000 cd/m²
Interface   RS-232(serial) / USB
Command Set   LD220, EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROLㄛICD2002ㄛEZ-202ㄛPL-200ㄛPD3000
Character Type   I.   95 Alphanumeric
characters
II.  32 sets of international
Characters: France,
Germany,U.K, Sweden,
Denmark I and II, Italy,
Spain, Japan, Norway,
Slavonic, Russia,
Portuguese, Canadian,
Nordic, Turkish, Greek,
West European Latin,
CP858, CP860, WPC1251,
WPC1252, CP857(Turkish),
Polish, WPC1250, CP852,
WPC1253(Greek), CP866,
WPC1255(Hebrew),
CP737(Dosgreek), CP858,
CP864(Arabic), Farsi(Iran)
Touch Option   N/A
Chassis Color   Black
Power Supply   DC 5~24V
Power Consumption   1.5W
Operation Temperature   0 to 70°C
Storage Temperature   -40 to 80°C
Operation Humidity   0%-90%
Storage Humidity   0%-95%
MTBF   30,000 hrs
Certification   FCC/ CE/ RoHS
Head (W x D x H)   200 W × 77.5 D × 31 H (mm)
Support (H x Ø)   140 H x 34.5 Ø (mm)
Base (W x D x H)   169.5 W × 98.5 D × 39 H (mm)
Weight    0.98KGs
Rotation Angle   Vertical 0-90
  Horizontal 0-355
用戶手冊
規格單張
EC-VFD-3015 Leaflet
下載
EC-VFD-3015 Command Description Manual
下載
