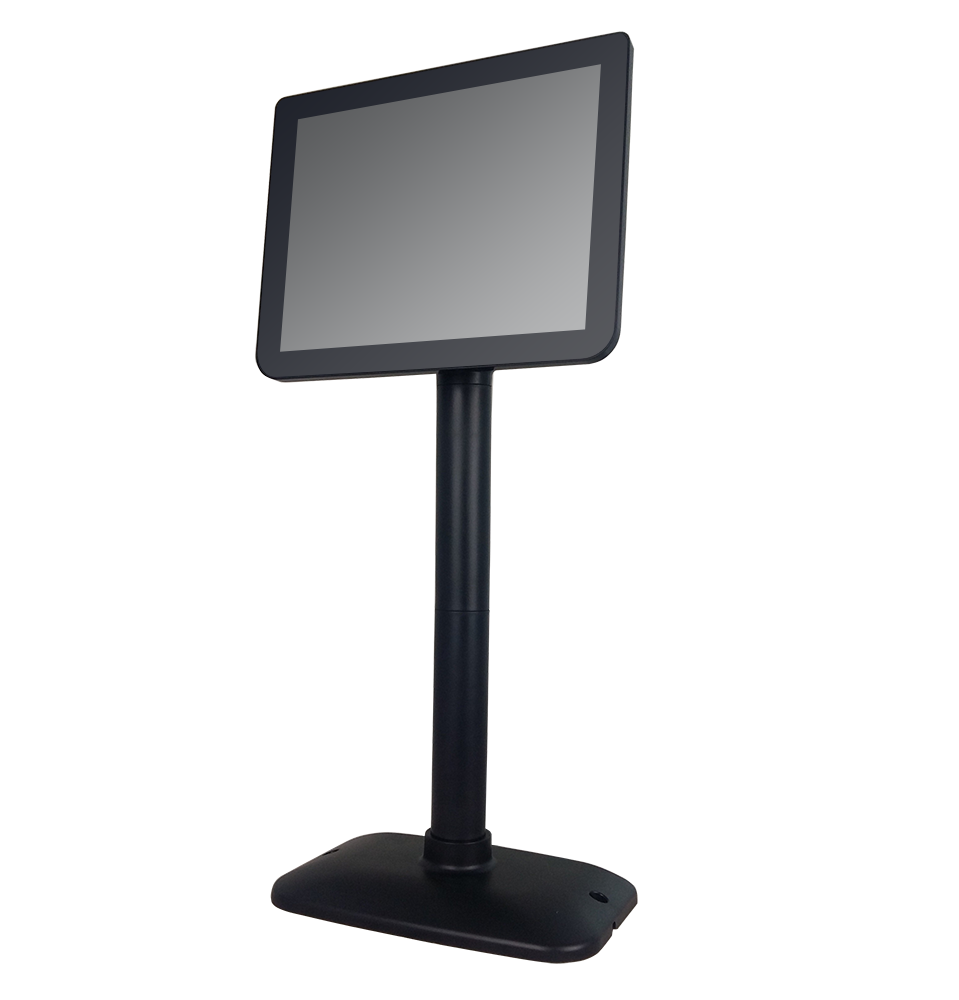

10" 顧客顯示屏
EC-1020
返回

• LCD Display

• Bezel free stylish outlook

• High brightness

• Optional stand-alone type / second display

Display Type   9.7" IPS TFT LCD

Back-light   WLED
White luminance (Center)   400 cd/m²
Interface   USB/VGA
Command Set   Use as Second Monitors
Character Type   Graphic Mode
Touch Option   N/A
Chassis Color   Black (White for Option)
Power Supply   DC 12V 1.5A
Power Consumption   10W(max)
Operation Temperature   0 to 40 °C
Storage Temperature   0 to 40°C
Operation Humidity   20 - 80%  RH
Storage Humidity   20 - 80%  RH
MTBF   10K Hours (min)
Certification   CE/FCC/ROHS/3C
Head (W x D x H)   235 W × 185 D × 42 H (mm)
Support (H x Ø)   Long: 280 H x 35 Ø (mm);
Short: 140 H x 35 Ø (mm)
Base (W x D x H)   211 W × 102 D × 21 H (mm)
Weight    1KGs
Rotation Angle   Vertical 0-90
  Horizontal 0-350
