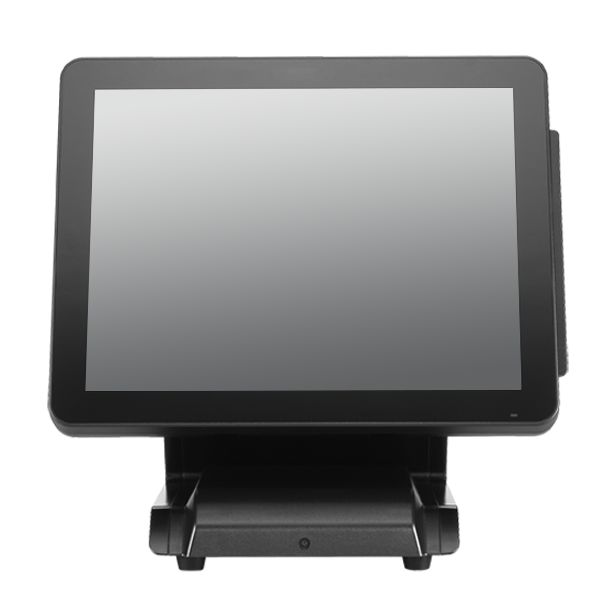

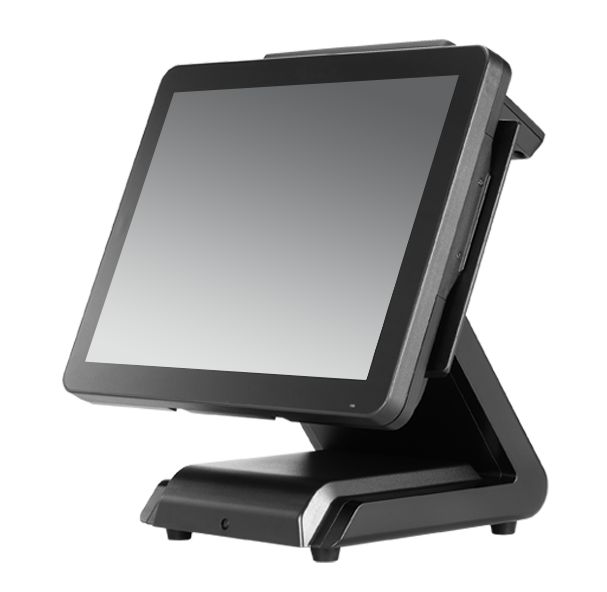

銷售點終端機
SP-1060
返回

• Extreme Powered Intel 6th Generation Skylake Platform

• Fanless design from Celeron all the way to i7 CPU ( Celeron / i3

   / i5 / i7 )

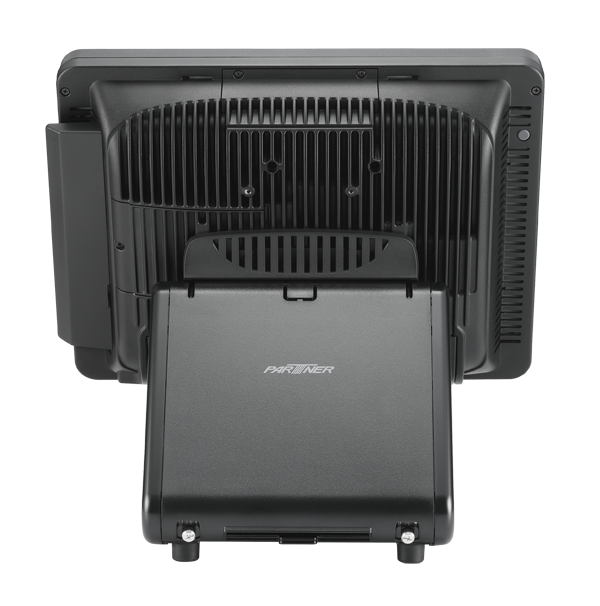

• Rear cover Aluminum Die-Casting construction for exceptional

   thermal dissipation

• Futureproof with support up to Triple Display and compatible

   with iAMT( i5/ i7 only )

• Latest DDR4 memory and SATA 3.0 support, maximized the

   access speed and efficience


  SP-1060 IoT Ready SP-1060 IoT Advanced
CPU i3-6100TE (2.7GHz, Dual Core, 4M Cache)  i5-6500TE (up to 3.3GHz, Quad Core, 4M Cache)
  i7-6700TE (up to 3.4GHz, Quad Core, 8M Cache)
LCD 15" Active TFT color LCD, resolution 1024 x 768, LED backlight
Touch  PCT
Memory DDR4 SODIMM (2133 MHz), 2 x Memory, Standard Spec: 4GB, 8GB, 16GB (Support up to 32GB)
Storage Internal 2.5" SATA BAY x 1 at Stand
Internal 2.5" SATA BAY x 1 at Panel PC
HDD Standard: 500 GB x 1 (default)
SSD Standard Selection: 32GB / 64GB / 128GB
External I/O Interface 2 * Serial ports, RS232 (DB9), RI/5V/12V selection by BIOS ( COM1, COM2)
2 * Serial ports, RS232 (RJ45), RI/5V/12V selection by JP ( COM3, COM4)
1 * DB-15 VGA port
1 * RJ11 port supports 2 cash drawer with 24V
1 * DC+12V out
4 * USB 3.0
1 * DC + 12V input power-jack
1 * Audio ( 1 * Line-out 1)
1 * HDMI port
1 * 3W Speaker
2 * LAN IEEE 802.3 10/100/1000 Gigabit Ethernect
External I/O Options Powered USB 12V x 1 & 24V x 1 ( Optional)
  Parallel Port (Optional)
Expansion Slot 1 * Mini-PCIe slot
RAID Function N/A On-Board
Display Support Dual Independent Display Triple Independent Displays
Intel AMT Support N/A Yes

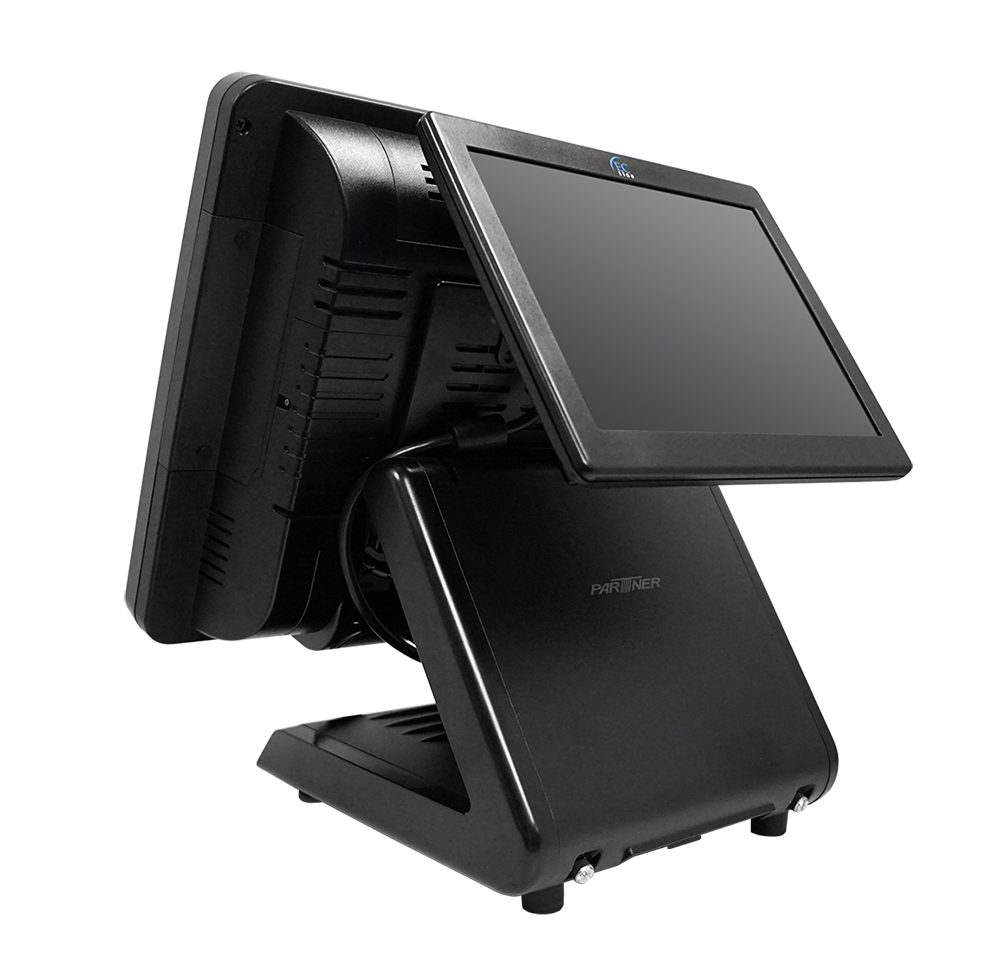

Optional 2nd Displays Customer display module ( 2 x 20 VFD) / 7" LCD Monitor / 11.6" LCD Monitor / 15" LCD Monitor
Optional Peripheral The Combinationa: (1) MSR        (2) MSR+IC Card + Fingerprint
                              (3) MSR+IC Card + RFID    (4) MSR+IC Card + i-Button
                             (5) KB-32 Programmable Key Board (only support Win7 32bit)
Optional WiFi Mini-PCIe interface card: IEEE802.11 b/g/n
Dimensions Physical: 360mm (W) x 237mm (D) x 335mm (H)
Adaptor AC-In 100~240V / DC-Out 12V, 120W (Optional 180W for Powered USB)
Cable RS-232 RJ45 converts to RS-232 DB-9 (2 x Cables)
OS Windows 7, POS Ready7, Windows 8.1, Windows 8.1 Industry Pro Retail, Windows 10, Linux (Ubuntu)
Reliability System Operating Temperature: 0~40 degree
System Humidity: 15%~80%
Storage Temperature: -20~60 degree
