顧客顯示屏

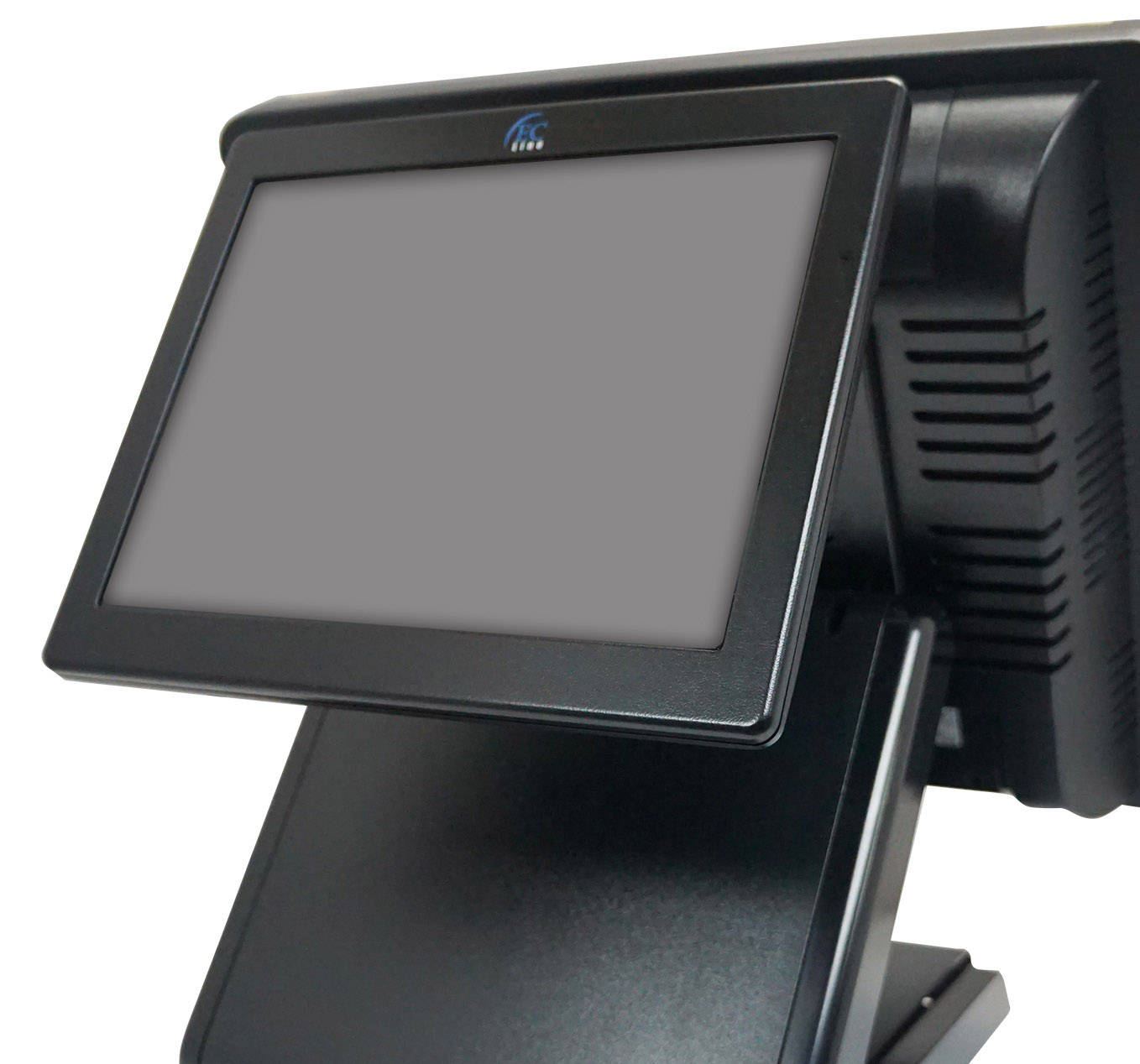

EC-1010
返回

•USB Type NO External Power Required.

•VGA Interface Available

•Outstanding Brightness reaches 350 Nits.

•Touch Screen for optional

•Chassis Color for optional

Display Type   10" IPS TFT LCD
Font Size   N/A
Back-light   Colorful TFT LCD (350 Nits)
White luminance (Center)   N/A
Interface   USB/ VGA
Command Set   Use as Second Monitors
Character Type   Graphic Mode
Touch Option   5 Wire Resistive Touch
Chassis Color   Black, White and Grey; Customize
Power Supply   5~12V, 500mA
Power Consumption   2.5W
Operation Temperature   0-40°C
Storage Temperature   0-60°C
Operation Humidity   90% Max
Storage Humidity   80% Max
MTBF   51,025 hrs
Certification   CE/FCC
Head (W x D x H)   230 W × 190 D × 16.5 H (mm)
Support (H x Ø)   130 H x 33.5 O (mm)
Base (W x D x H)   217 (W) x 106 (D) x 35 (H) mm
Weight    1KGs
Rotation Angle   Vertical 0-90
  Horizontal 0-355
