EM讀卡器

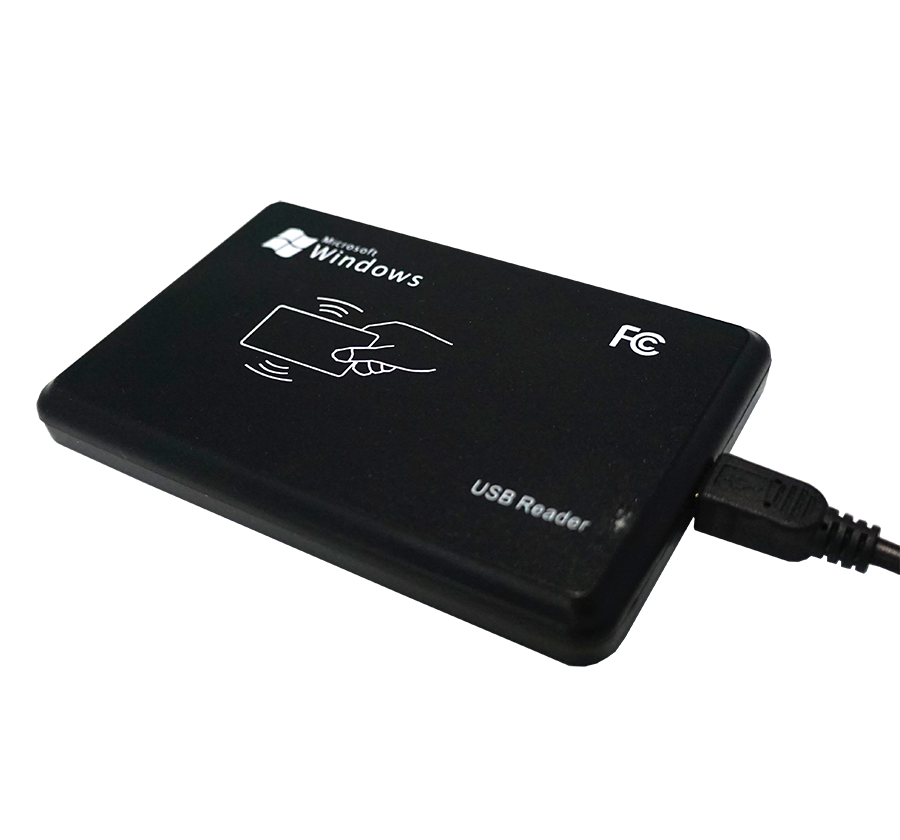

EC-EM-302D
返回

• Registration ID card for access control system

• System login / logout application

• Member system

• POS. (Inventory management, logistics system, food and drinks

   industry etc.)

• Support Android system

Operating Voltage Range  5 VDC (USB Powered)
Standby Current  70 mA
Max. Operation Current  90 mA
Supported Transponders  EM Cards
Read Card Distance  5 - 8 cm
Operation Frequency  125 kHz
Communication Speed  106 Kbit/s
Operating Environment  Indoor Use
Operating Temperature Range  -10℃ to 70℃
Storage Temperature Range  -20℃ to 83℃
Relative Humidity Range  0 to 90% (non-condensing)
Weight  140g (with USB Cable)
Dimensions (L x W x H)  105 x 70 x 11.8 (4.2 x 2.8 x 0.5 in.)
Interface  Mini USB
驅動程式
用戶手冊
EC-EM-302D User Manual
下載
規格單張
EC-EM-302 Leaflet
下載
