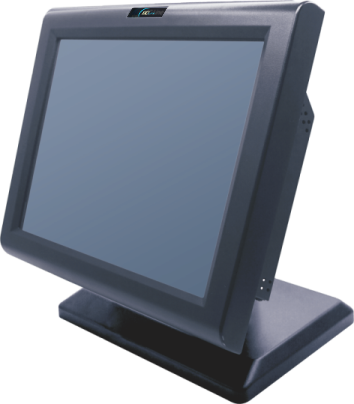

EC-1530 (Phased-Out)
返回

(Phased-Out)

CPU D525 Dual Core 1.8G
Memory DDRIII 1066/1333*1 2GB(Up to 4GB)
Storage 32GB SSD;Optional 64GB / 128GB SSD
LAN 10/100/1000 Mbps Gigabit Ethernet
I/O interface 5* COM Ports;
1*DB-VGA(15Pin D-sub);
1*DB25 Parallel Port;
1* RJ-45 LAN Port (1*Line-Out, 1' MIC-In);
4* USB 2.0;
1* Audio Out;
2*Internal Speaker(Option);
1* PS2 Mouse ;
1* PS2 Key Board.
VGA Signal  LVDS
Operation System Windows 7, Windows XP, XPe, Linux (Ubuntu, Fedora), WEPOS, POSReady
Viewing Area  15 Inches
Resolution 800 x 600 Or 1024 x 768 (Max)
Active Display Area (mm) 304.128 (W) x 228.960 (H)
Display Color  16,777,216 Colors
Response Time  8 ms
Contrast Ratio  600:1
Viewing Angle (Up/ Down/ Left/ Right) 70°/ 60°/ 75°/ 75°
Touch Panel  EETI 5-wire Resistive
Luminance  250 cd/m
Input  Universal AC 100 - 240V
Output  DC + 12V
Management  VESA DPMS
Consumption  35W
Storage Temperature  -20∘C -- 60∘C
Operating Temperature  0∘C -- 40∘C
Operating Humidity  10 % -- 85 %
Rotation 130∘Vertical
Mounting  VESA Compliant (100 mm x 100 mm)
Optional Glass  Strengthen Glass (For None-Touch Version)
Dimension 370 W x 195 D x 330 H (mm)
Weight NW:7.0KG GW: 9.0KG
3 Tracks Magnetic Reader Support
1-line VFD Support
2-line VFD Support
10 inch Monitor
(with/ without touch)
Support
12 inch Monitor
(with/ without touch)
Support
15 inch Monitor
(with/ without touch)
Support
驅動程式
Drivers
用戶手冊
EC-1530 User Manual
下載
規格單張
EC-1530 Leaflet
下載
