工業級電腦主機

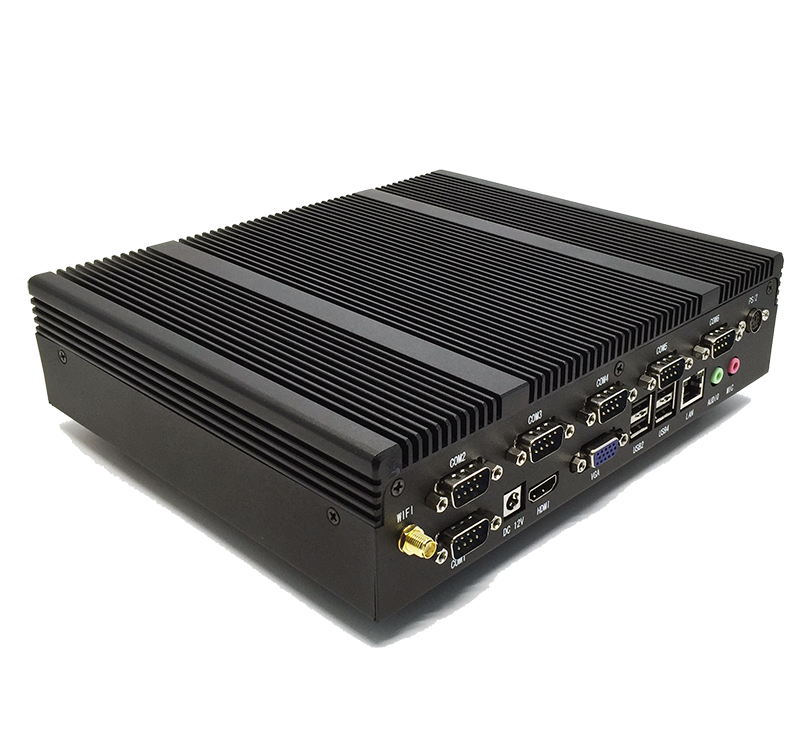

EC-BP-110
返回

(Phased-Out)

CPU Intel®  1037U  dual core 1.8G&NM70 Chipset
Memory DDRIII 1066/1333*1 2GB(Up to 4GB)
Storage 32GB SSD;Optional SSD(64GB,128GB)/HDD(320G)
LAN 10/100/1000 Mbps Gigabit Ethernet
I/O interface 6 * COM Ports (COM1~6 At Back I/O)            1*PS/2 keyboard 1
1 * DB-15 VGA Port
1 * DB-25 for LPT Port
1 * RJ-45 LAN Port With Activity And Link LEDS
1 * Line-Out ,                                                      1 * MIC-In
6* USB 2.0 (4 At Back I/O, 2 At Front I/O)      1*HDMI                                                                 1*RESET                                                             1*POWER SWITH                                               1*DC(2.1)                                                            1*Antenna
Operation System Windows 7, Windows XP, XPe, Linux (Ubuntu, Fedora) , WEPOS, POSReady
Input  100-240V/50-60HZ AC power Input
Output  DC 12V/5A out put
Management  VESA DPMS
Consumption  22W(max)
Storage Temperature  ‐20∘C -- 70∘C
Operating Temperature  0∘C -- 40∘C
Operating Humidity  20 % -- 90 %
Mounting  VESA Compilant (100 mm x 100 mm)
Optional Kits Wall mounting kits(including screws*4)*1(optional)
Dimension 260*250*135mm(L*W*H)
Weight NW:2.8KG GW: 3.5KG
驅動程式
Drivers
用戶手冊
EC-BP-110 User Manual
下載
規格單張
EC-BP-110 Leaflet
下載
