CPU : J6412/ i3-1115G4/ i5-1135G7
Rich I/O Port Combinations

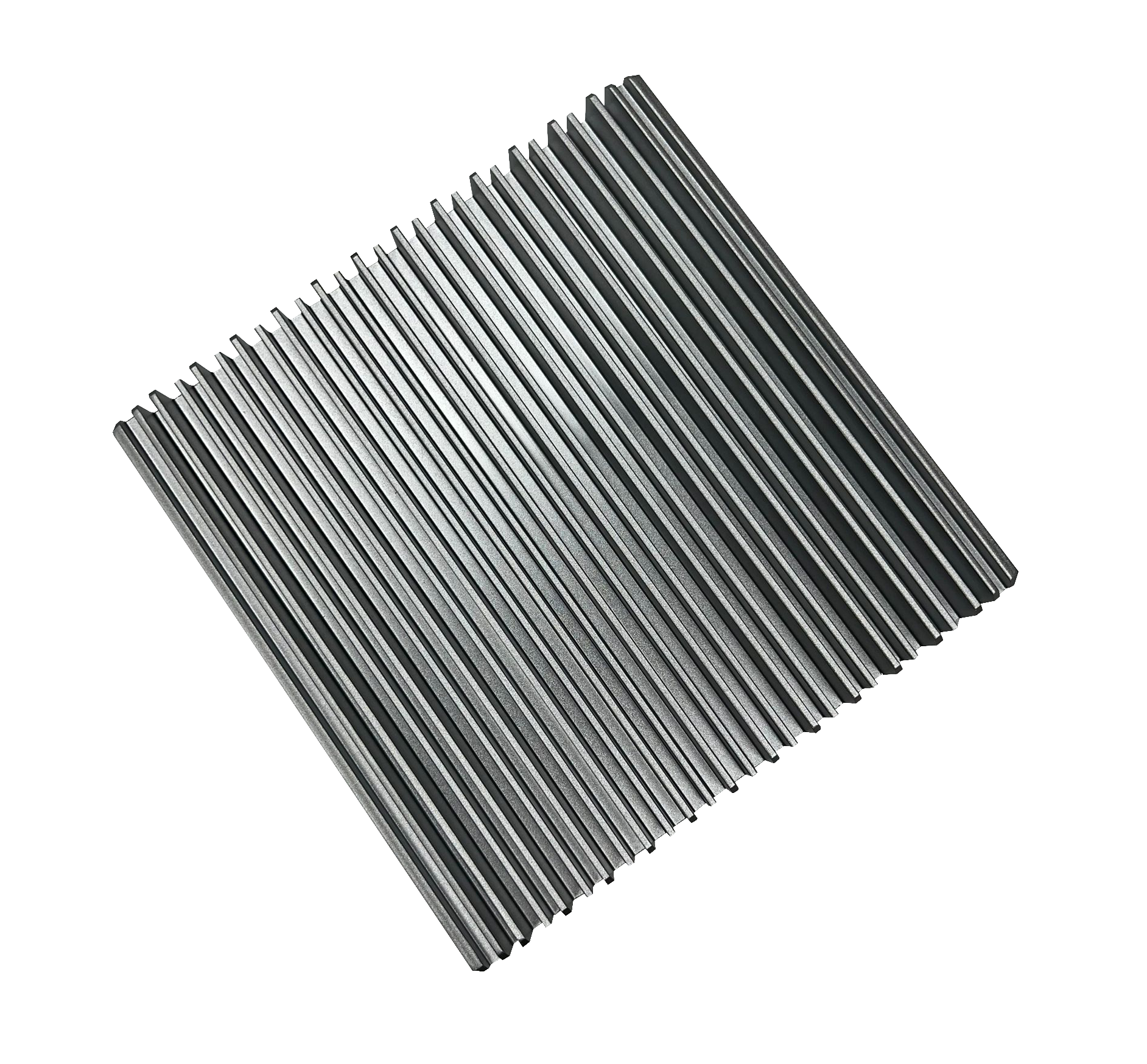

Industrial Grade Aluminum Case
| System | Processor | Intel® Celeron® Processor J6412 up to 2.60 GHz |
| Intel® Core i3-1115G4 up to 4.10G Dual-Core | ||
| Intel® Core i5-1135G7 up to 4.20G Quad-Core | ||
| Memory | DDR4 4G DDR4-2666/2933/3200MHz, Up to 32G | |
| Storage | 128 / 256GB SSD or 500GB SATA HDD (Optional: Dual Storage) | |
| Operating System | Windows 10 / 10 IOT, Windows 11, Linux (ubuntu) | |

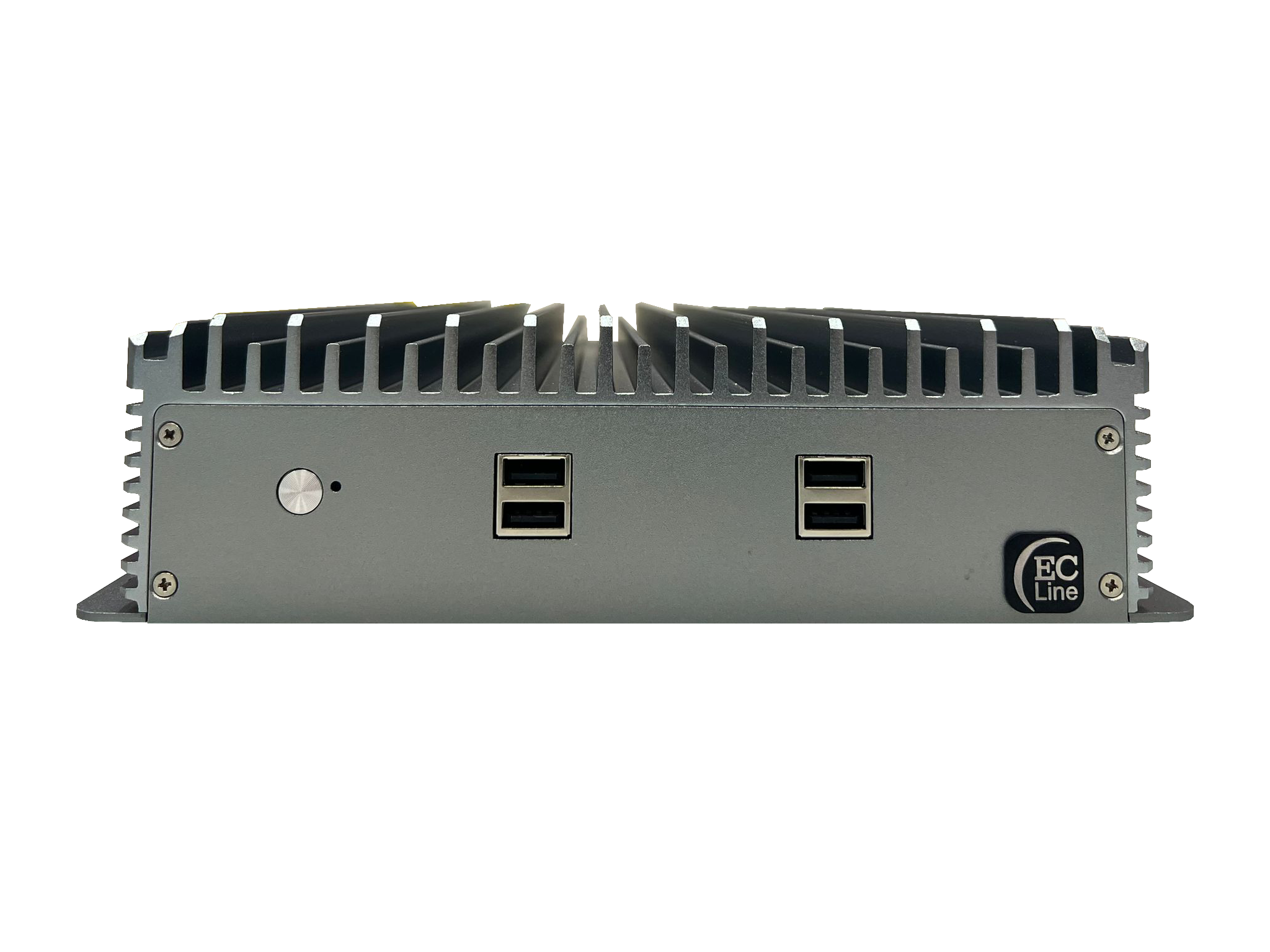

| Interface | Front Panel : | |
| Power Button | 1 | |
| USB2.0 | 4 | |

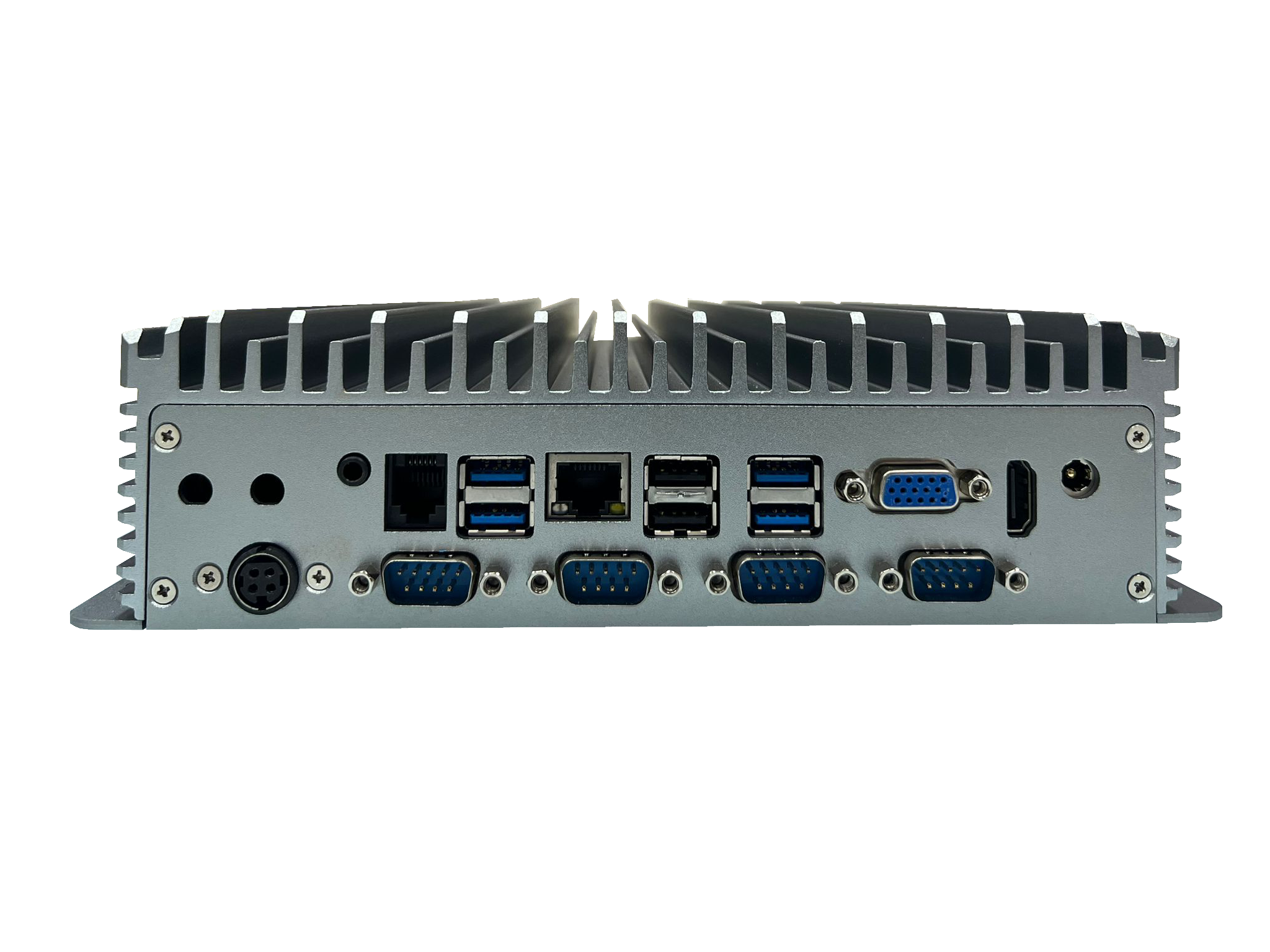

| Rear Panel : | ||
| DC 12V | 1 | |
| RJ11 | 1 | |
| COM | 4 | |
| USB3.0 | 4 | |
| USB2.0 | 2 | |
| HDMI | 1 | |
| VGA | 1 | |
| LAN | 2 | |
| LINE | 1 | |
| Power | Power Input | AC100V～240V，50/60Hz |
| Power Output | DC 12V/5A | |
| Physical Specifications | Dimensions Without Base | 215W x 215H x 65D mm |
| Dimensions Base | 235W x 225H mm | |
| Environmental Conditions | Operating Temperature | -0˚C to 40˚C |
| Storage Temperature | -20℃ to 70℃ | |
| Humidity | 10% to 85% | |
| Accessories | Safety Certifications | FCC / CE / RoHS |
| Included | Power cord | |
| Optional Peripherals | Interface | WIFI |
