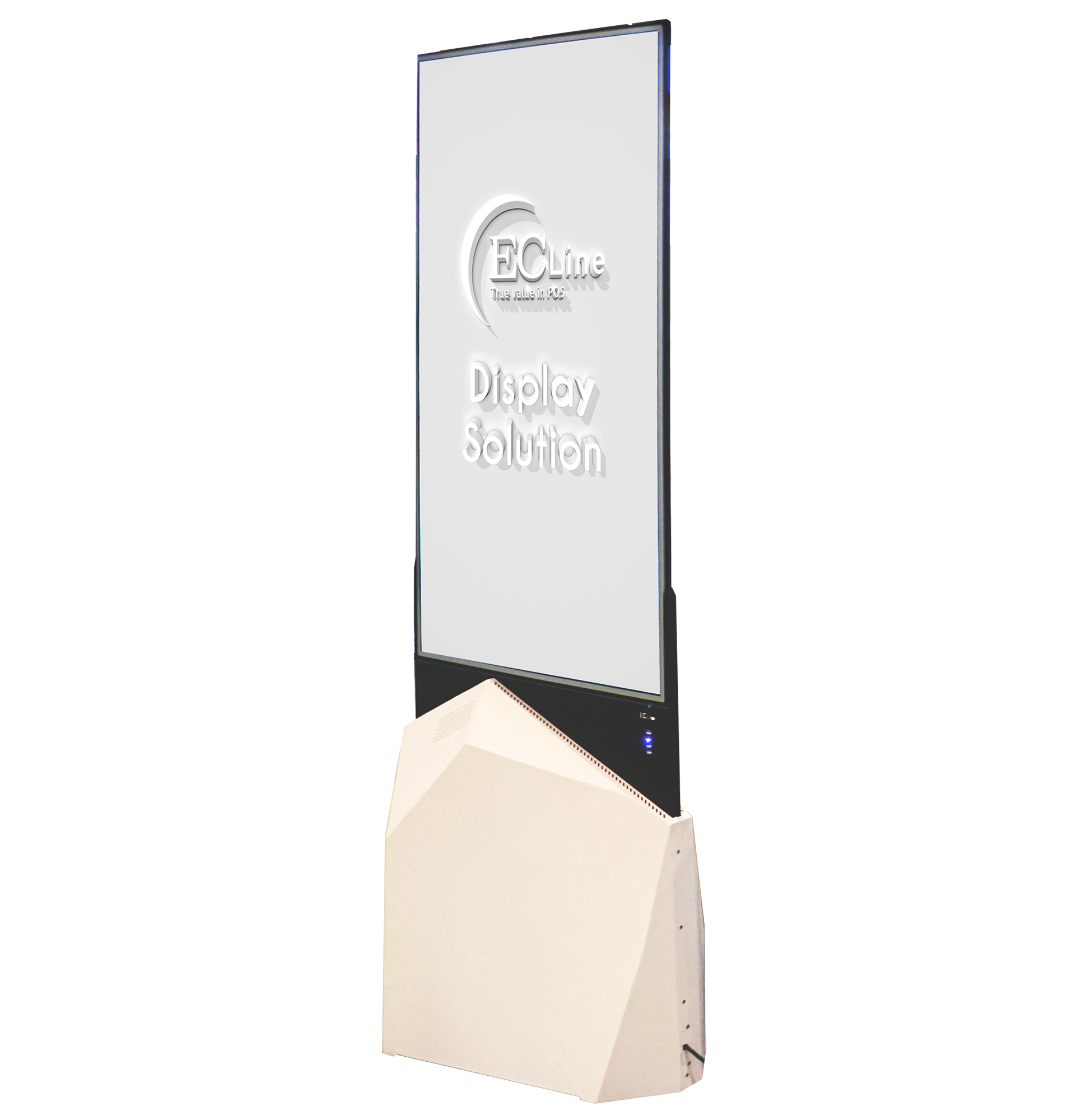

Double Panel Digital Signage
EC-FSS55A
BACK

• Double Panel - display different content

• Stylish Base

• Optional Ceil Mount

• With Cloud server and CMS

• Multi media formats supported

• Enable Real time update through internet

LCD PANEL
Panel size 55 inch
Display Area (mm) 1209.6(H) × 680.4(V)
Display Mode 16:9
LCD Type LED-backlit LCD
Resolution 1920 × 1080
Brightness 420 cd/m²
Response Time 8 ms
Color system PAL / NTSC / Auto
Field Frequency  60 Hz
Contrast Ratio 3500:1
View-angle(up/down/left/right) 89° / 89° / 89° / 89°
MEDIA FORMAT
System Android Operating System
Royal TS B/S TS
Media format wmv, avi, flv, rm, rmvb, mpeg , ts, mp4
Text format txt, pdf, doc, docx, xls, xlsx, ppt, pptx
Picture format bmp, jpeg, gif, png
SYSTEM
CPU Quad-core ARM Cortex A17
RAM DDR3 2GB
Internal memory EMMC 8GB (4GB Available)
Wireless Onboard,802.11b/g/n
INTERFACE
USB USB2.0 x 4
POWER
Audio system  Built-in 8 Ω 10 w x 2 speakers
Power Requirement AC100V~240V,50/60Hz
Power Consumption - Typical ≦175W
Power Consumption - Standby  <1W
PHYSICAL SPECIFICATIONS
Frame material Aluminum Frame + Metal Stage
Dimensions  (H x W x D)  Top: 1958 x 728 x 20.4
Base: 1958 x 760 x 463
Net weight (KG) 52
Range of application Indoor
ENVIRONMENTAL CONDITIONS
Operating temperature 0℃~40℃
Storage temperature 10℃~80℃
ACCESSORIES
Included Power cord
Drivers
User Manuals
EC-WDS / EC-FDS / EC-FSS Series User Manual
Download
Data Sheets
EC-FSS55A
Download
