15" Windows POS Terminal

EC-VP-1100

Meet the EC-VP-1100, the 15-inch (4:3) all-in-one capacitive touch POS terminal designed to power your business through any shift.

A stylish, fanless all-in-one POS Terminal

EC-VP-1100

The VP-1100 is a sleek, fanless all-in-one POS Terminal. It features a borderless 15" touchscreen and supports flexible peripheral connectivity. Available in different colors to match your brand, it keeps cables neatly hidden for a tidy workspace.

Connectivity

Connect Everything

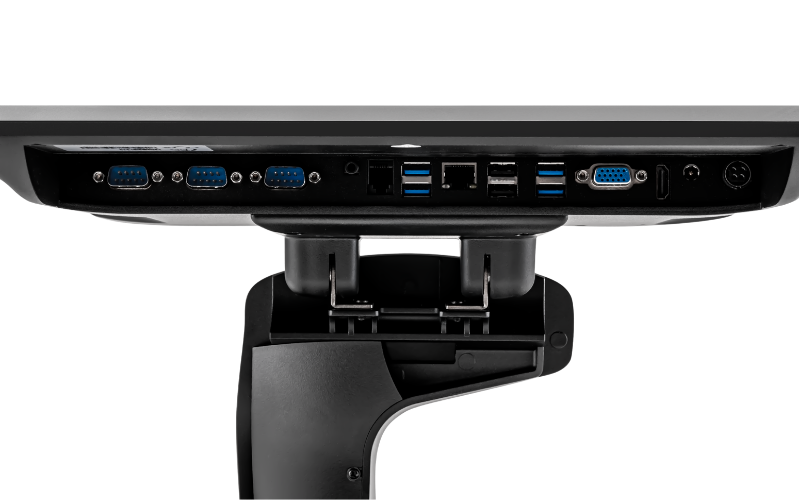

Multiple I/O interfaces, including 6 USB ports and 2-3 Serial ports. Optional expansion capabilities allow you to connect it to all the peripheral devices that meet your business needs.

The terminal that will survive even your business.

The VP-1100 is our world-wide most sold POS terminal. It is designed for longevity in even harsh conditions. The high-quality finish and exceptional components used ensure smooth handling through and through.

Technical Specifications

CPU

Intel ® J6412 / i3-11th / i5-11th

Memory

DDRIV-2666/2933/3200 4GB (up to 32GB)

Storage

128 / 256 / 500GB SSD or 1TB 2.5 Hard Disk

OS Support

Windows 10, Windows 10 IOT, Windows 11, Linux (ubuntu)

Display Size

15 Inches

Resolution

1024 × 768 (4:3)

Brightness

350cd/m²

Backlight Type

LED

Contrast Ratio

600:1

Response Time

10ms

Viewing Angle (Up/ Down/ Left/ Right)

80°/80°/70°/70°

Video Interface

EDP

Touch

10-point Projected Capacitive Touch

I/O Interface

1 × DC12V IN / DC12V OUT 1 × HDMI 2 × USB2.0 4 × USB3.0 3 × RS232 1 × CASH DRAWER (RJ11)

Housing Material

Aluminum

VESA Mounting

75 x 75 (mm) & 100 x 100 (mm)

Dimensions (W x D x H)

350 × 220 × 340(mm)

Packing Dimension (W x D x H)

440 x 310 x 413 mm

Net Weight

4.9KG

Gross Weight

6.8KG

Power Consumption

35W（MAX）

Power Input

AC 100-240V

Power Output

DC 12V/5A

Operating Temperature

-10˚C to 50˚C

Storage Temperature

-20℃ to 60℃

Humidity

10% to 85%

Safety

FCC / CE / RoHS

Optional Peripherals - VFD

2-line VFD / 10.1inch or 15inch Second Display / WiFi + BT / iButton / iButton + MSR / MSR (3 Tracks Magnetic Reader)
