Flexible Presentation Scanner

Honeywell Genesis XP 7680g

The Honeywell Genesis™ XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity.

Smart Placement Accesories

POS Mount

Additional accessories are now available to support a wide variety of installation applications and options.

Smart Placement Accesories

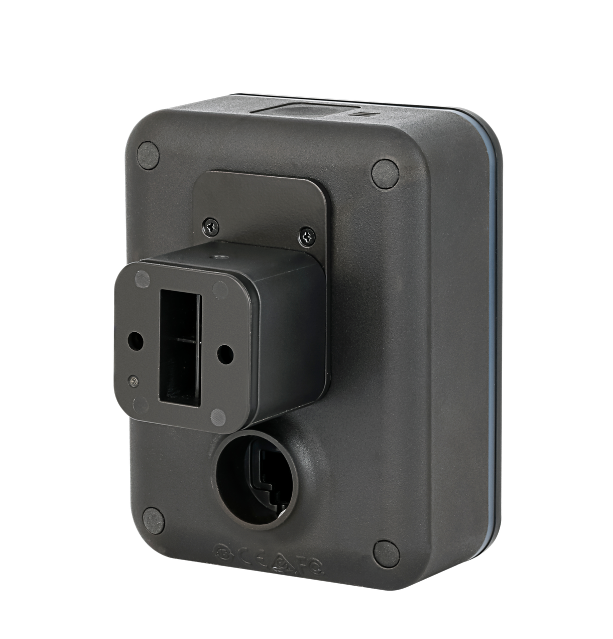

Wall Mount

Additional accessories are now available to support a wide variety of installation applications and options.

Smart Placement Accesories

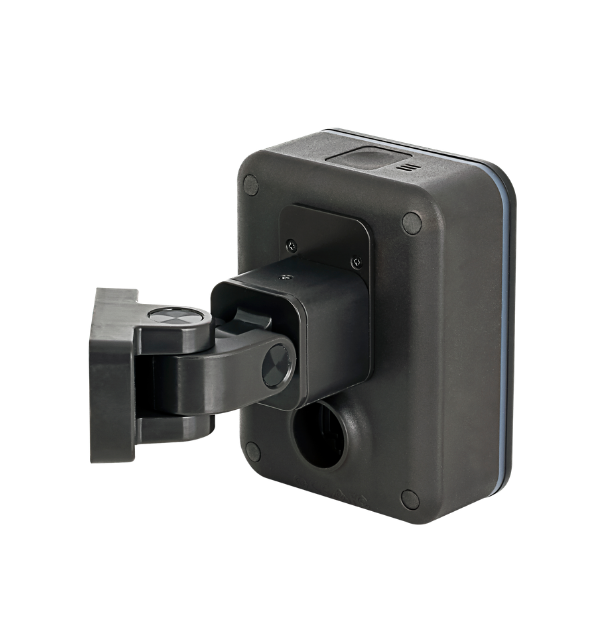

Vertical Mount

Additional accessories are now available to support a wide variety of installation applications and options.

Input Voltage

5.0V DC Typical

Operating Power

2.5 W (500mA @ 5V)

Host System Interfaces

USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)

Auxiliary Ports

Pin Connector for future expandability

Dimensions (L x W x H)

80 mm x 40 mm x 105 mm, 145 mm w/ stand; (3.2 in x 1.6 in x 4.1 in, 5.7 in w/ stand)

Weight

340 g (12 oz)

Trigger

Top mounted button

Operating Temperature

0°C to 50°C; (32°F to 122°F)

Storage Temperature

-40°C to 70°C; (-40°F to 158°F)

Humidity

0% to 95% relative humidity, non-condensing

Drop

50 drops @ 1.5 m

Tumble

1,000 tumbles @ 0.5 m

Environmental Sealing

IP52

Light Levels

100,000 Lux

Beeper

90db @ 10 cm

Scan Pattern

Area Image 1,280 x 800 pixel array, 1Mp

Motion Tolerance

400 cm/s (158 in/s) for 13 mil UPC at optimal focus

Scan Angle

Horizontal: 48°; Vertical: 30°

Print Contrast

20% minimum reflectance difference

Pitch, Skew

65°, 65°

Decode Capability

Reads standard 1D, 2D, PDF, 2D, Dotcode symbologies, Digimarc supported

Note

Decode capabilities dependent on kit configuration.
