銷售點終端機
EC-1559
返回

• 4GB Ram; 128GB SSD or 320GB HDD

• Bezel free panel

• Powered with Elo resistive touch screen

• Grade A industrial grade LCD monitor

• Wall mount Vesa mounting

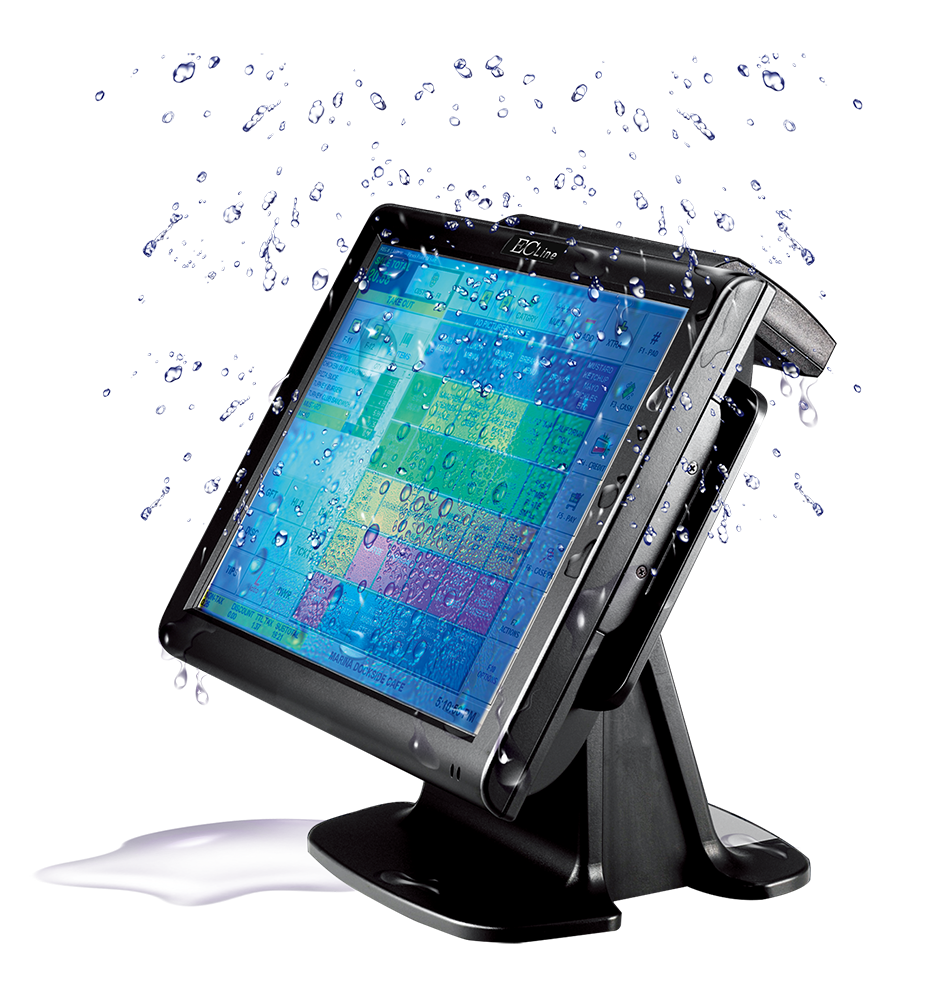

• IP 65; waterproof / dust proof / oil proof

• Various interfaces combination



CPU Intel® Celeron® Processor J1900
Memory DDRIII-1600 4GB (up to 8GB)
Storage 320GB HDD or up /
128G SSD (up to 256GB)
OS Support Windows 7, Windows 8.1, Windows Embedded 8.1 Industry,
Windows 10, Windows 10 IOT, POS Ready 7, Linux (ubuntu)
Display Size 15 inch
Resolution 1024*768
Brightness 350 cd /㎡
Backlight Type LED
Contrast Ratio 700:1
Response Time  8msec
Viewing Angle (Up/ Down/ Left/ Right) 80°/80°/85°/85°
Video Interface LVDS
Touch ELO 5-wire Resistive
I/O Port DC12V IN
DC12V OUT
POWER ON/OFF
1×LPT
1×VGA
4×USB
1×LAN
1×PS/2
4×COM(RJ45)
1×CASH DRAWER(RJ11)
Housing Material Magaluma
Tilt Angle 0 ~90°
VESA Mounting  75×75 mm
Dimensions (W x D x H) 356 W × 220 D × 335 H (mm)
Packing Dimension 470 W × 350 D × 470 H (mm)
Net Weight 8.5KG
Gross weight 9.5KG
Consumption 28W(MAX)
Operating Temperature  0 ℃ to 40℃
Storage Temperature  -20℃ to 60℃
Humidity 15% to 80%
Shock / Drop 86cm with packaging
Power Input AC 100-240V
Power Output DC 12V/5A
Safety FCC/ CE/ BSMI
IP Rating IP65
ISO Trick 1/2/3 Magnetic Stripe Reader  support
VFD Support
Second Display 7"/ 10.1/15"
(9.7", 10.1", 12", 15")
Wireless Support
iButton Support
iButton+MSR N/A
Finger Senor N/A
