Barcode Scanner

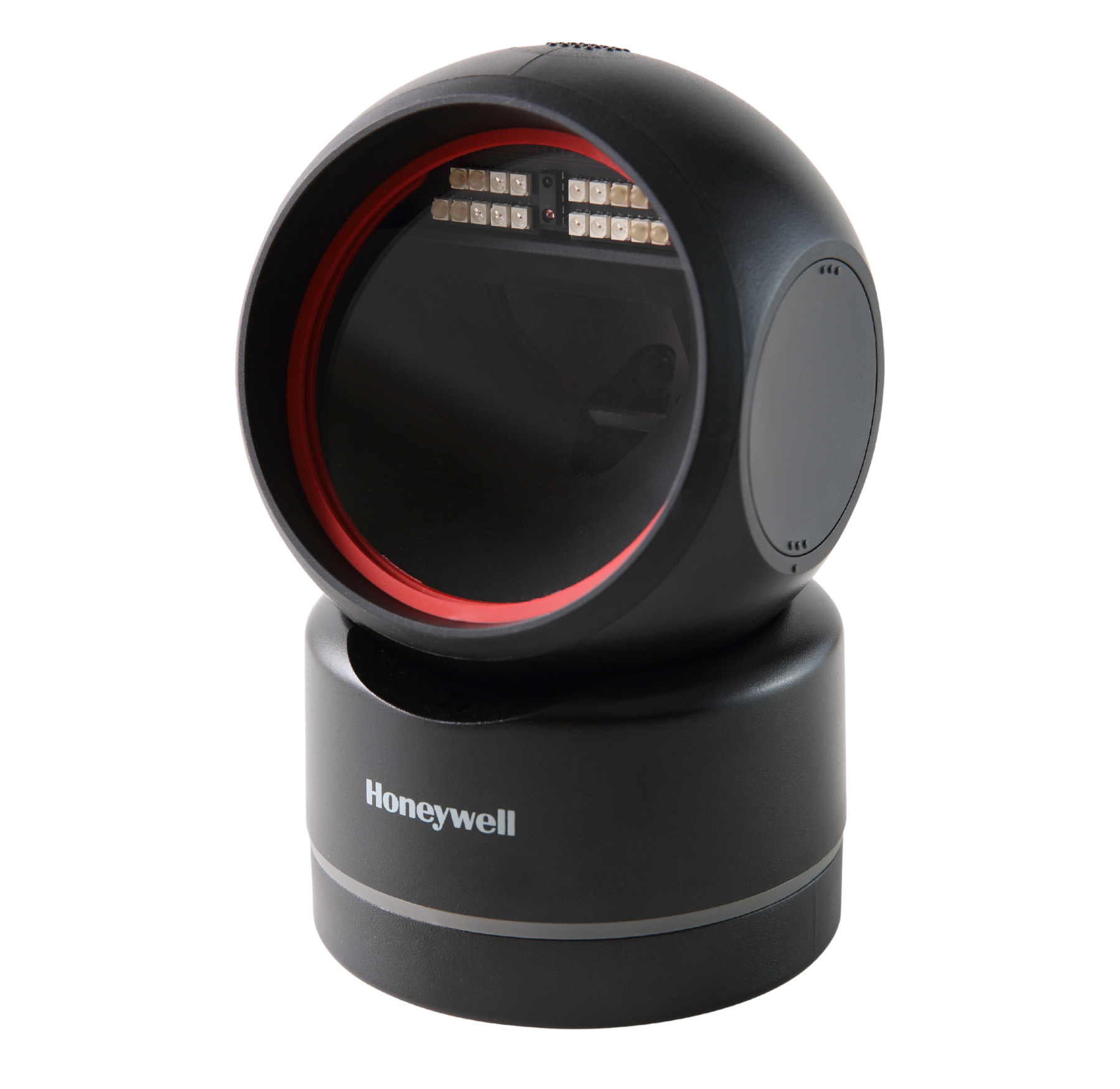

Honeywell ORBIT HF680

Honeywell’s Orbit HF680 point-of-sale hands free/presentation scanner is the perfect blend of affordability, performance and style.

霍尼韋爾HF680是一款二維影像式掃描器，可輕鬆讀取各種標準1D、PDF和2D碼，是一款提升生產力、改善顧客體驗的革命性的產品，產品設計堅固耐用。

產品詳細資訊

With the Orbit HF680, retailers no longer have to compromise their budgets to get performance and a modern design. Get it all with Honeywell’s Orbit HF680.

Customers will zip through the checkout line with the lightning-fast scanning capability of both 1D and 2D barcodes with Orbit HF680. And the Orbit HF680 minimizes checkout delays by quickly scanning traditionally difficult to read digital barcodes and even damaged barcodes.

The Orbit HF680 scanning is not only fast, it’s also unobtrusive. The low profile, recessed LED lights in the scan window light up barcodes without irritating your customers. And when the canner is not in use, its lighting will automatically turn off.

Technical Specifications

Dimensions

(L × W × H): 85 mm × 88 mm × 139 mm

Weight

278 +/-10g

Input Voltage

5 VDC ±0.5V

Working

2.0 W (400 mA @ 5V)

Standby

0.85 W (170 mA @ 5V)

Host Interface

USB, RS-232

DPI

1280 × 800 pixel

Motion Tolerance

Up to 2.5 m/s for 13 mil UPC at optimal focus

Scan Angle

Horizontal: 47°; Vertical: 30°

Print Contrast

20% minimum reflectance difference

Pitch, Skew

+/-60°, +/-70°

Decode Capability

Reads standard 1D, PDF, 2D Symbologies

Operating temperature

-10°C to 40°C (14°F to 104°F)

Storage temperature:

-40°C to 60°C (-40°F to 140°F)

Humidity

0% to 95%RH, no condensation

Drop

Designed to withstand 1 m drops

Illuminance

0-100,000 Lux

Note

Decode capabilities dependent on kit configuration.
